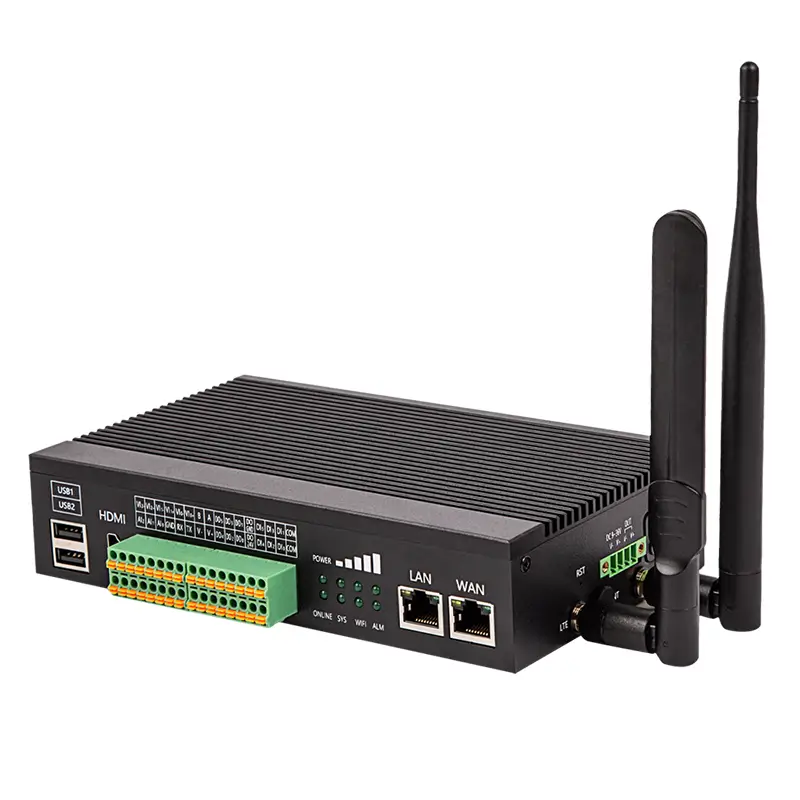

Elastel EG500 IoT Gateway WiFi HaLow Edition is an industrial IoT Gateway designed for IoT applications those specially using 802.11ah WiFi HaLow technology. Leverage SX-NEWAH module from SilexTechnology, the first industrial IEEE 802.11ah Wi-Fi module, EG500 is able to as a WiFi HaLow Gateway/Router for your IoT projects.
- ★ Powered by high-performance Raspberry Pi CM4.
- ★ Leverage SX-NEWAH module that operates in the Sub 1GHz Long range (up to 1 km) LPWAN technology.
- ★ GbE Wired, 4G LTE, 2.4G/5G WiFi for WAN connectivities.
- ★ Industrial-grade carrier board with RS232/RS485/DI/DO and enclosure.
WiFi HaLow (802.11ah) LPWAN Technology
- Powered by SX-NEWAH module, the first industrial IEEE 802.11ah Wi-Fi module that operates in the Sub 1GHz band
- Long range (up to 1 km) coverage connectivity
- Easily integrate SX-NEWAH in an existing IP network, operate same as regular Wi-Fi
- Rich Data Rates up to 15Mbps with enough throughput to support TCP/IP
- Support over 1000 nodes per access point, no need repeaters.
Numerous interfaces support edge devices
- Isolated Serial Port 1x RS485, and 1x RS232
- Industrial-grade isolated 6x DI, 6x DO and 3x ADC
- 2x 10/100/1000Mbps Gigabit Ethernet Port
- 1x Up to 4kp60 supported HDMI output
- 2x High-Speed USB 2.0 Ports
- Compatible with multiple industrial protocols including:
Modbus TCP, Modbus RTU, OPC UA, EtherNET/IP, ISO on TCP, Mitsubishi MC serials...
Powerful Computing Operation Platform

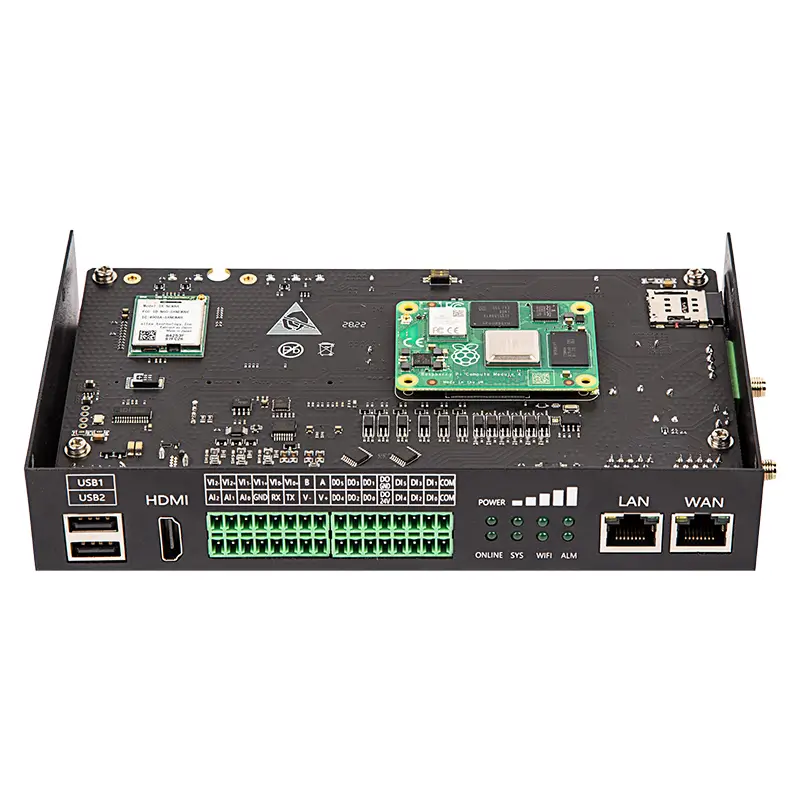

Powered by Raspberry Pi CM4 which featured high-performance edge computing capabilities, it's easy to build up your IoT projects and PoC applications.
- ARM Cortex-A72 Quad-core processor 1.5GHz, 1GB RAM + 8GB eMMC (diverse RAM and Storage optional)
- Raspbian/OpenWRT Based Linux OS, Docker, Node-RED, Python... available with SDK provided by Elastel
- Pre-compiled software bundled for common application like data acquisition, Modbus collection, MQTT...
- Easy interoperate with IoT Ecosystem like Microsoft AZURE, Amazon AWS, AliCloud, ThingsBoard platforms, etc.
Industrial-grade Design for Reliability & Security
From computing module, communication module to each electronic components, EG500 adopts strict industrial grade standards. Solid and durable housing and SIM lock secure it at your remote edge field .
- Fanless design achieved wide Operating Temperature from -30°C to +70°C
- 35mm DIN-Rail and wall mount Supported
- EMC & ESD Protection, 1.5 kV RMS Ports Isolation.
- Built-in RTC with supercap
- SIM card slot and Console port lock set the data secuirty
Applications
With the Raspberry Pi CM4 running up to 1.5GHz computing capability, and flexible Linux Operating System, EC500 could be applied in many kinds of scenarios.
Programmable Logic Controller (PLC)
With Serial ports and DI & DO ports available, and take advantage of Software-defined PLC, EG410 can easily operate as a typical PLC.
Edge computing Gateway
Data collecting from slave devices, analyzing and storing. And with flexible configuration, it is perfect as a protocol and interface converter Gateway.
Industrial modem and cellular Router
With a built-in cellular module, EG410 can be configured as an industrial modem and router operating in 4G/LTE, 3G, NB-IoT mobile network. Easily remote access in by build a VPN or a defined public IP.
Micro Server Computer
The Compact and high reliability design with HDMI port, allows EC500 operate as a micro server. Raspberry Pi compatibility and Linux OS provides computer operation possibility.
Specifications:
| Model |
EG500 |
| Cellular network |
4G LTE CAT4/CAT6, 3G, 2G, NB-IoT, CAT-M1 |
| Ethernet port |
2x 10/100/1000Mbps |
| Wi-Fi |
Dual-band 2.4GHz/5GHz 802.11b/g/n |
| 802.11ah WiFi (WiFi HaLow) |
Supported (Optional) |
| LoRa |
Supported (Optional) |
| Bluetooth |
Supported |
| Serial Port |
1x RS232, 1x RS485 |
| Digital I/O |
6x DI and 6x DO |
| Analog Input |
3x ADC |
| USB |
2x USB2.0 |
| HDMI |
1x HDMI 2.0 |
| Console port |
Supported |
| LED indicator |
1-POWER, 1-WiFi, 1-SYSTEM, 1-ALARM,1-ONLINE, 3-Signal Strength |
| Power Supply |
Wide Range Voltages 9~36V DC/1A |
| Power Output |
Supported |
| Factory Reset Button |
Suported |
| Region |
EMEA/APAC
North America
Oceania/S. America
|
