| Hardware Platform |
|
| CPU |
Dual-core ARM Cortex-A53@ 1GHz |
| DRAM |
512MB DDR3 |
| Storage |
4GB eMMC |
| Wireless |
|
| Cellular |
5G Sub-6 SA/NSA, 4G LTE, 3G WCDMA |
| SIM Slot |
Dual SIM, 15KV ESD protection |
| Wi-Fi |
Dual Band 2.4GHz & 5.8GHz Wi-Fi |
| WiFi 6 |
Optional |

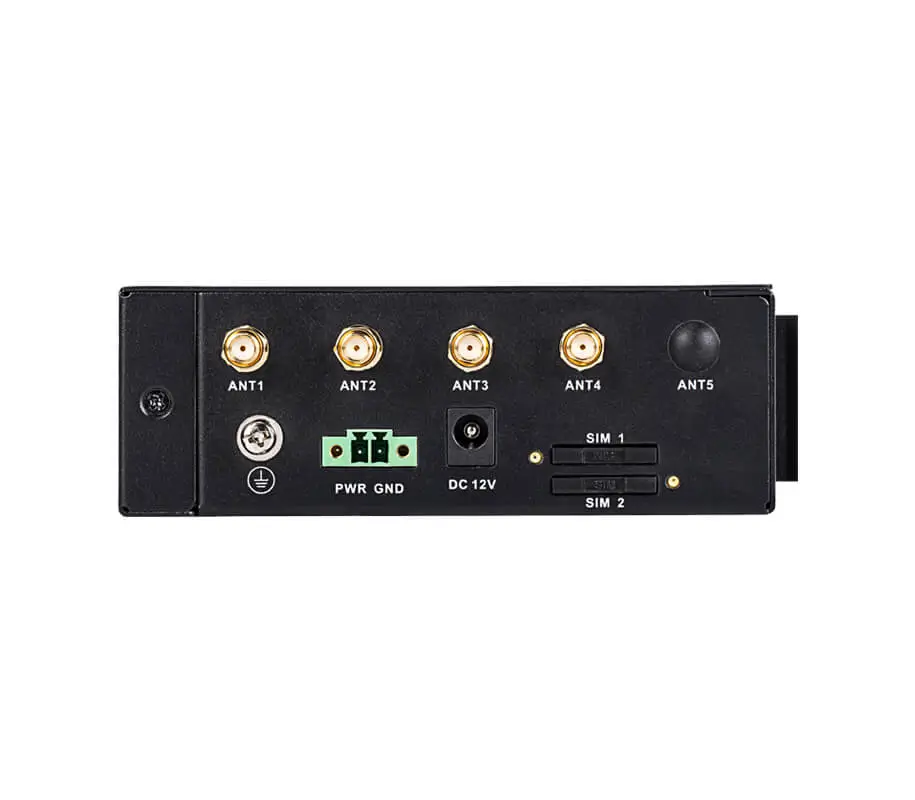

| Antenna Connector |
4x 5G/4G Cellular SMA, 2x Wi-Fi SMA |
| Antenna Connector |
(3 Reserved for extra Wi-Fi and GPS) |
| Interfaces |
|

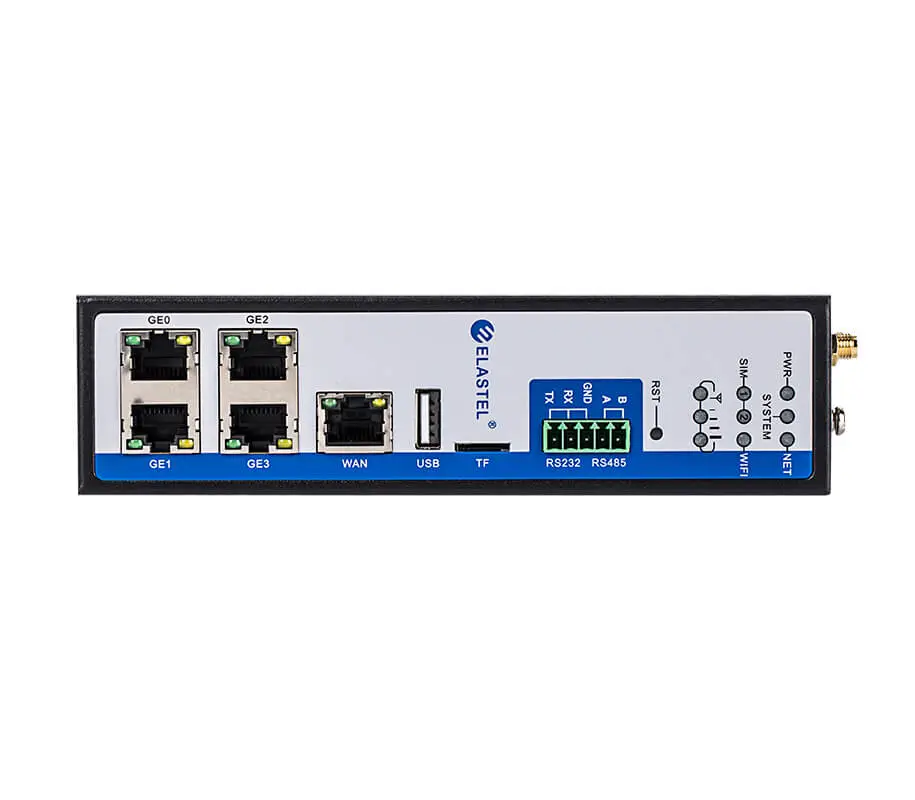

| Ethernet Port |
5 x 10/100/1000 Mbps GbE for LAN/WAN configurable; |
| Ethernet Port |
1.5KV network isolation transformer protection; |
| Serial Port |
1-RS232, 1-RS485; 5-PIN industrial terminal block; |
| Serial Port |
15kV ESD protection; |
| USB Port |
1x USB2.0 |
| TF Card |
1x TF Card slot |
| Reset Button |
1x Pinhole reset button |
| Power Parameters |
|
| Power Supply |
DC9 ~ 36V, over-current protection, anti-reverse connection; |
| Power Supply |
2 PIN terminal block and Jack connector; |
| Power Consumption |
Working Mode: 500~700mA@12V DC; |
| Power Consumption |
Standby Mode: 300~500mA@12V DC; |
| Indicators |
|
| LED Indicators |
9 LEDs ( Power, System, NET, SIM1/SIM2, WiFi, 3x Signal Strength) |
| Physical Characteristics |
|
| Dimensions |
126 × 44 x 166 mm (L×W×H) |
| Housing |
IP30 Metal |
| Installation |
DIN-rail mounting |
| Installation |
Panell mounting |
| Weight |
670g |
| Environmental Limits |
|
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Operating Temperature |
-35 to 75°C (-31 to 167°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Reliability |
|
| Alert Tools |
External RTC with Backup button battery |
| Automatic Reboot Trigger |
Hardware WDT (watchdog timer) |
| Package Contents |
|
| Device |

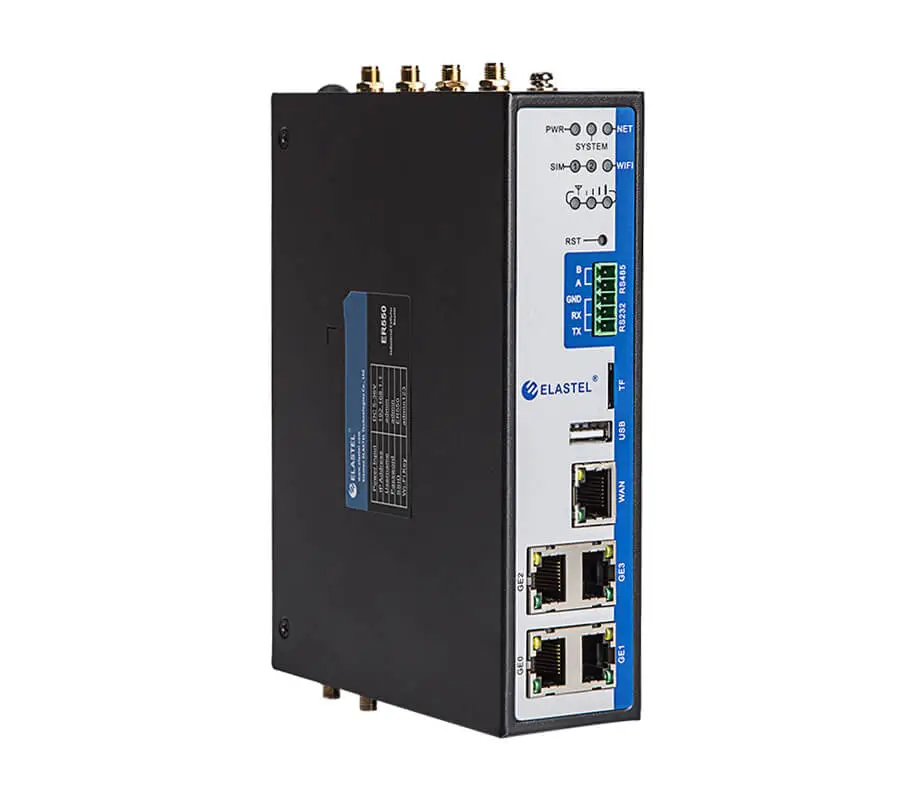

1 x ER550 device with Terminal Block preinstalled |

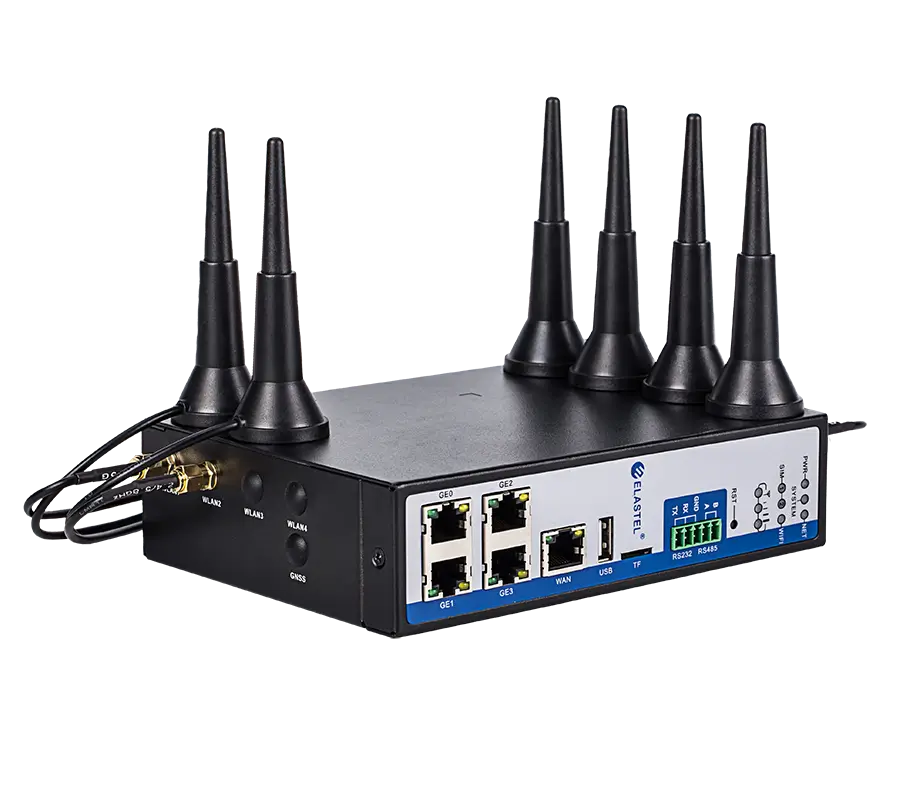

| Antenna |
4x Mag-mount Cellular Antenna (SMA Male, 1 meter, 12dBi), |
| Antenna |
2x Mag-mount WI-FI Antenna |
| Installation Kit |
Panel mount kits (DIN-rail mount kits optional) |
| Power Adapter |
DC 12V/2A (optional) |
| Software Features |
|
| OS |
ElastOS (OpenWRT based) with Serial-to-IP Data Acquisition programs |
| Configuration management |
WebUI, Local CLI, Remote configuration, factory reset/backup, Syslog local/remote export |
| Network Protocols |
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, |
| Network Protocols |
DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, |
| Network Protocols |
HTTP, ARP, QoS, SNTP, Telnet, SSH… |
| VPN |
PPTP, L2TP, GRE, IPSEC VPN (IKEv1/IKEv2), OPENVPN protocols, Supports CA digital certificate |
| Serial to IP |
Modbus RTU/TCP Data acquisition, MQTT, HTTP, OPC UA, BACnet |
| Reliability & Security |
WWAN and WAN Failover, multi-layer detection and auto
recovery mechanism, firewall, ACL, port mapping, virtual IP mapping, IP-MAC binding
|
| Secondary Development |
OpenWrt based OS with SDK support |
| Warranty |
|
| Warranty Period |
2 year |
| Region |
EMEA/APAC
North America
Oceania/S. America
|
