Tired of unreliable sensor signals that cause costly shutdowns? The Endress+Hauser CM82 1-channel transmitter Liquiline Compact gives you precise, stable readings so you can keep production moving. It is built for digital Memosens sensors and works in both safe and hazardous areas. If you need a transmitter that eliminates guesswork and protects your investment, this device is the answer.

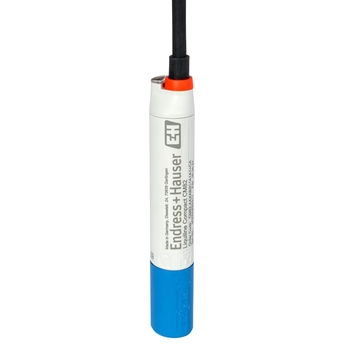

Endress+Hauser CM82 1-channel transmitter Liquiline Compact
Many plants struggle with signal drift, wiring errors, and difficult configuration. Those problems lead to wrong measurements, wasted chemicals, and lost time. The CM82 solves the issue by providing a compact, loop-powered transmitter that connects directly to Memosens sensors. Its HART communication and optional Bluetooth make setup fast and troubleshooting simple. With this transmitter you get reliable data, lower maintenance costs, and peace of mind.
Key Features
- 1-channel compact design, 18.95 mm diameter, 114.7 mm length.
- Direct digital connection to Memosens pH/ORP, conductivity or DO sensors.
- 4-20 mA output signal for easy loop integration.
- HART communication for field diagnostics and parameter changes.
- Optional Bluetooth for configuration via SmartBlue app.
- Two-wire loop-powered operation, no separate power needed.
- Housing made of PEEK 151 for chemical resistance.
- Strain relief in EPDM and axial ring in PEEK 450 G for durability.
- Ingress protection ratings IP67, IP68, NEMA 6 for harsh environments.
- 3 m cable included for quick installation.
Specifications
| General |
|
| Product |
Endress+Hauser Liquiline Compact CM82 |
| Order Code |
CM82-AAXAB2C1A1A1 |
| Type |
1-channel compact transmitter |
| Application |
Multiparameter transmitter for Memosens sensors in hazardous and non-hazardous applications |
| Compatible Sensors |
Digital Memosens sensors (pH/ORP, conductivity, dissolved oxygen) |
| Inputs |
|
| Input Channels |
1 |
| Sensor Connection |
Memosens digital sensor |
| Outputs / Communication |
|
| Output Signal |
4–20 mA |
| Cable |
3m |
| Communication Protocol |
HART |
| Optional Wireless |
Bluetooth configuration and diagnostics (configuration dependent) |
| Configuration |
|
| Configuration Method |
SmartBlue app (Bluetooth), FieldCare / DeviceCare (configuration dependent) |
| Mechanical |
|
| Housing Material |
PEEK 151 |
| Strain Relief Material |
EPDM |
| Axial Ring Material |
PEEK 450 G |
| Dimensions |
Diameter: 18.95 mm (0.75 in); Length: 114.7 mm (4.52 in) |
| Environmental |
|
| Ingress Protection |
IP67, IP68, NEMA Type 6 |
| Installation |
Direct connection of digital Memosens sensors |
| Application Environment |
Suitable for dust, moisture, rain and outdoor installations |
| Electrical |
|
| Power Supply |
Two-wire loop-powered |
