Many factories need to connect old PROFIBUS devices to modern Ethernet networks. If the link is missing, data cannot be shared and production may stop. This problem hurts efficiency and raises maintenance costs. The Endress+Hauser Fieldgate SFG500 Intelligent Ethernet/PROFIBUS gateway creates a reliable bridge, letting you monitor and control both worlds from one place.

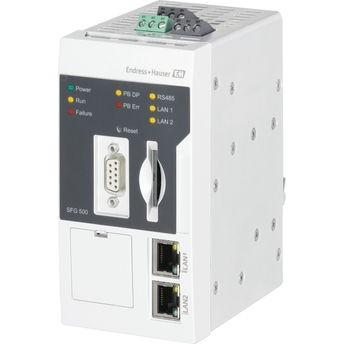

Endress+Hauser Fieldgate SFG500 Intelligent Ethernet/PROFIBUS gateway with Endress
A smart gateway that links Ethernet and PROFIBUS in a single compact unit. It lets you see device status, read HART signals, and move data without changing your existing field devices. If you struggle with mixed networks, this gateway gives you a clear, fast path to integrate everything under one control system. The name Endress signals quality and trusted performance.
Key Features
- Two 10/100 Mbps RJ45 Ethernet ports.
- One PROFIBUS DP (RS-485) interface.
- Supports Ethernet, PROFIBUS DP, Master Class 2, Listener, and HART over PROFIBUS.
- Embedded web server for easy configuration.
- Web browser, SFGNetwork DTM, and FDT/DTM (FieldCare) setup options.
- Eight status LEDs and four Ethernet port LEDs.
- 24 V DC power supply, Class III safety.
- Aluminum alloy body with ABS front panel, IP20 rating.
- Optional Fieldgate Module SFM500 for asset and process monitoring.
Specifications
| Product |
Endress+Hauser Fieldgate SFG500 |
| Device Type |
Intelligent Ethernet/PROFIBUS Gateway |
| Primary Function |
Parallel access to PROFIBUS networks, monitoring of PROFIBUS and HART device status |
| Processor / Operation |
Embedded gateway with integrated web server |
| Network Interfaces |
2 × 10/100 Mbps RJ45 Ethernet ports, 1 × PROFIBUS DP (RS-485) interface |
| Supported Protocols |
Ethernet, PROFIBUS DP, PROFIBUS Master Class 2, PROFIBUS Listener, HART over PROFIBUS |
| Configuration |
Web browser, SFGNetwork DTM, FDT/DTM (FieldCare) |
| Indicators |
8 × Status LEDs, 4 × Ethernet port LEDs |
| Controls |
1 × Reset button |
| Power Supply |
24 V DC (Class III device) |
| Power Consumption |
Approximately 6 W |
| Mounting |
DIN rail |
| Housing Material |
Aluminum alloy body (EN AW 5754), ABS front panel |
| Protection Rating |
IP20, NEMA Type 1 |
| Operating Temperature |
0 °C to +50 °C |
| Storage Temperature |
-20 °C to +70 °C |
| Humidity |
10–90% RH, non-condensing |
| Dimensions (W × H × D) |
142 × 70 × 114 mm (5.6 × 2.8 × 4.5 in) |
| Weight |
Approximately 0.7 kg |
| Optional Expansion |
Fieldgate Module SFM500 for Asset Monitor and Process Monitor functions |
