Imagine you could see every sensor reading from a remote plant without running a single cable. The Endress+Hauser FieldGate SWG50 Functional WirelessHART gateway makes that possible. It collects data from WirelessHART field devices and sends it to your control system. If you struggle with tangled wiring, slow data updates, or unreliable connections, this gateway solves those issues and keeps your process running smoothly.

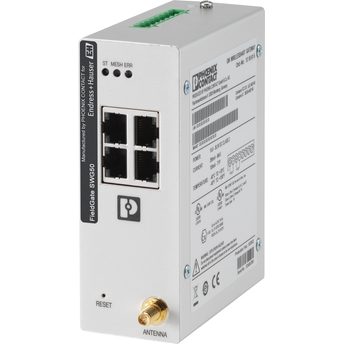

Endress+Hauser FieldGate SWG50 Functional WirelessHART gateway
Plants that rely on many sensors often face a mountain of cables and frequent downtime when a line fails. That problem slows production and raises maintenance costs. The SWG50 removes the need for hard-wired links by creating a secure WirelessHART mesh. It then bridges the wireless network to Ethernet, Modbus TCP, OPC DA, or HART-IP, letting you view data in real time on any SCADA or DCS. In short, it turns a complex, fragile wiring layout into a clean, reliable, and easy-to-manage wireless solution.
Key Features
- Supports WirelessHART, Ethernet, Modbus TCP, OPC DA, and HART-IP.
- Operates on 24 V DC power supply.
- Mesh network using IEEE 802.15.4 at 2.4 GHz.
- Transmission rate of 250 kbit/s for fast updates.
- IP20 DIN-rail mounted housing for easy installation.
- WirelessHART encryption and authentication for secure data.
- Status LEDs give instant visual feedback on network health.
- CE, ATEX, and IECEx approvals for use in hazardous zones.
Specifications
| Product |
Endress+Hauser FieldGate SWG50 |
| Measuring Principle |
WirelessHART |
| Function |
Intelligent WirelessHART gateway for integration of WirelessHART field devices
into plant monitoring and control systems
|
| Application |
Remote monitoring, data acquisition, and integration of WirelessHART networks |
| Supported Devices |
WirelessHART field devices and WirelessHART adapters |
| Communication Interface |
WirelessHART, Ethernet, Modbus TCP, OPC DA, HART-IP, Web server |
| Wireless Communication |
IEEE 802.15.4, 2.4 GHz ISM band, WirelessHART mesh network |
| Transmission Rate |
250 kbit/s |
| Power Supply |
24 V DC |
| Network Capacity |
Supports up to 100 WirelessHART devices |
| Configuration |
Integrated web server, FieldCare, DeviceCare |
| Security |
WirelessHART encryption and authentication |
| Display |
Status LEDs |
| Housing |
DIN rail mounting |
| Protection Rating |
IP20 |
| Operating Temperature |
-20 °C to +60 °C |
| Dimensions (W × H × D) |
Approx. 45 × 118 × 115 mm |
| Approvals |
CE, ATEX, IECEx |
