Tired of guessing how much product is left in your tanks? The Endress+Hauser NXA820 Tankvision Inventory management Tank Scanner gives you exact numbers in real time. It reads data from field instruments and shows the level on a web screen. If you run a refinery, a tank farm or any liquid storage, you need this device to stop costly over-fills and unexpected shortages.

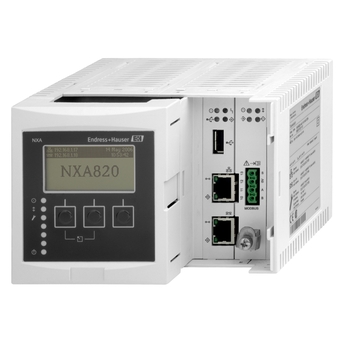

Endress+Hauser NXA820 Tankvision Inventory management Tank Scanner
This scanner solves the problem of manual tank checks that waste time and can give wrong readings. Inaccurate inventory leads to production delays and safety risks. The NXA820 connects to up to 15 tanks, gathers level data via Ethernet and displays it on a web server that any user can open on a monitor. You get a clear, reliable view of every tank without leaving the control room.
Key Features
- Ethernet communication for fast data transfer.
- Web server operation and configuration via browser.
- 128 MB memory stores historical data.
- Power supply 90-250 V AC or 10.5-32 V DC.
- Display requirement 1280 1024 resolution or better.
- Potential-free SPDT relay output.
- Approved by OIML R85, NMi and PTB for custody transfer.
- Cabinet-mounted installation for secure placement.
- License-free access for up to 10 users per component.
Specifications
| Product |
Tankvision Tank Scanner NXA820 |
| Function |
Acquires data from field instruments |
| Communication Interface |
Ethernet |
| Operation |
Web server |
| Configuration |
Web server |
| Supported Tanks |
Up to 15 tanks |
| Memory |
128 MB |
| Power Supply |
90–250 V AC (50/60 Hz), 10.5–32 V DC |
| Dimensions (W × H × D) |
91 mm × 104 mm × 140 mm |
| Display Requirement |
1280 × 1024 or better monitor resolution |
| Relay Output |
Potential-free relay, SPDT |
| Relay Switching Power |
25 V DC, 100 W / 250 V DC, 4 A, 1000 VA |
| Ambient Temperature |
-40 to +60 °C (-40 to +140 °F) |
| Approvals |
OIML R85 (2008), NMi, PTB custody transfer approval |
| Installation |
Cabinet mounted |
| User Access |
Up to 10 users per Tankvision component, license-free |
| Typical Industry |
Oil & Gas, refineries, tank farms |
