In many plants the process signals are hard to read and control. If the display is dim or the wiring is wrong, operators may miss a critical alarm. This can cause waste, downtime, or safety issues. The Endress+Hauser RIA46 process indicator with control unit 20-250V AC/DC gives you a bright, easy-to-read display and built-in control functions, so you can see and act on data instantly.

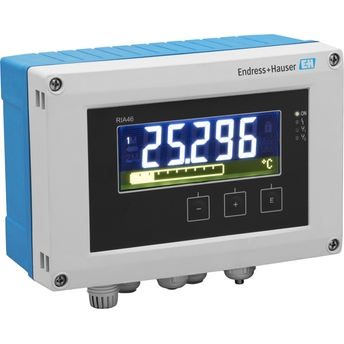

Endress+Hauser RIA46 process indicator with control unit 20-250V AC/DC with Endress
You need a device that shows temperature, pressure or flow at a glance and also lets you adjust the signal. The RIA46 is a compact field-mounted indicator that works with 20-250 V AC or DC power. It reads voltage, current, resistance, RTD and thermocouple inputs and can drive analog or relay outputs. With Endress technology you get reliable signal conversion and alarm handling in one rugged unit.
Key Features
- Backlit LCD with 5-digit 7-segment display.
- Bargraph and unit display for quick visual cues.
- Supports voltage, current, resistance, RTD and thermocouple signals.
- Two universal inputs for flexible sensor connections.
- Up to two analog outputs (current or voltage).
- Optional relay outputs for on/off control.
- Open-collector digital status output.
- Integrated LPS powers two-wire transmitters.
- Limit monitoring and relay switching built in.
- Signal conversion, evaluation and calculation functions.
- Linearization table with up to 32 points per value.
- FieldCare software for easy configuration.
Specifications
| General |
|
| Product |
EH RIA46 Process Indicator with Control Unit |
| Type |
4-wire process indicator with control unit |
| Application |
Process recording, supervision, control, signal adjustment and signal conversion |
| Installation |
Field-mounted device |
| Display |
|
| Display Type |
Backlit LCD |
| Display Format |
5-digit, 7-segment display |
| Additional Display Features |
Bargraph, unit display, TAG display, alarm messages in plain text |
| Backlight Colors |
White / Black / Yellow (multicolor) |
| Inputs |
|
| Universal Inputs |
Up to 2 |
| Supported Signals |
Voltage (U), Current (I), Resistance (R), RTD, Thermocouple (TC) |
| Sensor Supply |
Integrated loop power supply (LPS) for two-wire transmitters |
| Outputs |
|
| Analog Outputs |
Up to 2 analog outputs (Current / Voltage) |
| Relay Outputs |
Up to 2 relays (optional) |
| Digital Output |
Open collector status output |
| Loop Power Supply |
1 integrated output |
| Control & Process Functions |
|
| Limit Monitoring |
Yes |
| Relay Switching |
Yes |
| Signal Conversion |
Yes |
| Signal Evaluation |
Yes |
| Signal Calculation |
Yes |
| Differential Pressure Application |
Integrated application package |
| Linearization |
One linearization table with up to 32 points per calculated value |
| Data Storage |
Min./Max. value storage |
| Calculated Values |
1 or 2 calculated values |
| Configuration |
|
| Local Operation |
3 front keys |
| Software Configuration |
FieldCare software |
| Communication Interface |
Configuration interface integrated |
| Power Supply |
|
| Supply Voltage |
20 ... 250 V AC/DC |
| Features |
|
| Process Signal Forwarding |
Via analog outputs |
| Connected Sensor Powering |
Via integrated LPS |
| Signal Sources Available For |
Display, outputs, relays and interface |
| Safety |
|
| SIL Approval |
Optional SIL 2 |
| Conformity |
|
| Manufacturer |
Endress+Hauser |
| Product Series |
RIA Process Indicators |
