Tired of missing or inaccurate process data? The Endress+Hauser RSG45-AA2BBAAAA1A2, 14 digital inputs, Memograph Data Manager gives you a reliable way to capture every signal, store it safely, and make it easy to read. It is built for plants that cannot afford downtime caused by unclear measurements. With this device you stop guessing and start controlling.

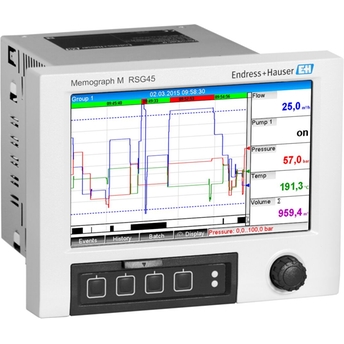

Endress+Hauser RSG45-AA2BBAAAA1A2, 14 digital inputs, Memograph Data Manager
Many factories struggle with scattered data sources that never talk to each other. When a sensor fails or a log is lost, the whole production line can suffer. This problem matters because every minute of uncertainty can cost money and quality. The RSG45 data manager solves the issue by gathering analog, HART and digital signals in one panel-mounted unit, logging them securely, and offering instant access through Ethernet, Modbus, PROFINET or a built-in web server. You get a single, trustworthy source of truth for all your measurements.
Key Features
- 7-inch TFT color graphic touchscreen.
- 14 configurable digital inputs for control and counting.
- Up to 20 universal analog inputs (voltage, current, RTD, etc.).
- Two analog outputs for current or pulse signals.
- 12 relay outputs for direct actuator control.
- RS232, RS485, Ethernet and USB interfaces.
- Supports Modbus RTU/TCP, PROFIBUS DP, PROFINET, EtherNet/IP.
- Internal memory plus SD card or USB for long-term storage.
- Mass, heat quantity and heat difference calculations built in.
- Integrated web server and alarm functions.
- Trend, signal and limit monitoring tools.
- Field Data Manager software for easy data export.
Specifications
| General |
|
| Product |
Endress+Hauser Memograph M RSG45 Advanced Data Manager |
| Model |
RSG45-AA2BBAAAA1A2 |
| Measuring Principle |
Data manager, Data logger |
| Display |
|
| Display Type |
7-inch TFT color graphic display |
| Touchscreen |
Yes |
| Inputs |
|
| Universal Analog Inputs |
Up to 20 (Voltage, Current, RTD, Thermocouple, Frequency, Pulse) |
| HART Inputs |
Up to 20 |
| Digital Inputs |
14 (Control, Event and Counter inputs) |
| Outputs |
|
| Relay Outputs |
Up to 12 |
| Analog Outputs |
Up to 2 (Current, Pulse) |
| Transmitter Power Supply |
1 |
| Interfaces & Communication |
|
| Interfaces |
RS232, RS485, Ethernet, USB |
| Communication Protocols |
Modbus RTU/TCP Slave, Modbus RTU/TCP Master, PROFIBUS DP, PROFINET Device, EtherNet/IP Adapter |
| Data Storage |
|
| Internal Memory |
Yes |
| External Storage |
SD card, USB flash drive |
| Recording Features |
Secure data logging, long-term storage, data export |
| Calculations |
|
| Functions |
Mass calculation, Heat quantity calculation, Heat quantity difference |
| Additional Features |
|
| Web Server |
Integrated |
| Alarm Functions |
Yes |
| Data Analysis |
Trend analysis, signal analysis, limit monitoring |
| Scan Rate |
100 ms |
| Software Support |
Field Data Manager (FDM) |
| Power & Mounting |
|
| Mounting |
Panel-mounted |
