Entry-Level Fixed Wireless Access & Cellular CPE for Primary or Backup WAN

Problem:

Many organisations need reliable connectivity before fibre or leased-line services are available. Fixed-line deployments can take weeks or even months, delaying site openings and business operations. For temporary, remote, construction, retail, and seasonal locations, the cost of installing permanent infrastructure is often difficult to justify. In addition, relying on a single fixed circuit creates a single point of failure, leaving sites vulnerable to outages and service disruptions

Solution:

Provides secure, carrier-grade 5G/4G connectivity as either the primary WAN connection or an independent backup path. Dual-SIM support with automatic carrier failover ensures continuous service and improved resilience. Sites can be brought online within days using only power and active SIMs, eliminating long circuit provisioning delays and enabling fast, scalable, and repeatable deployments across multiple locations.

Description:

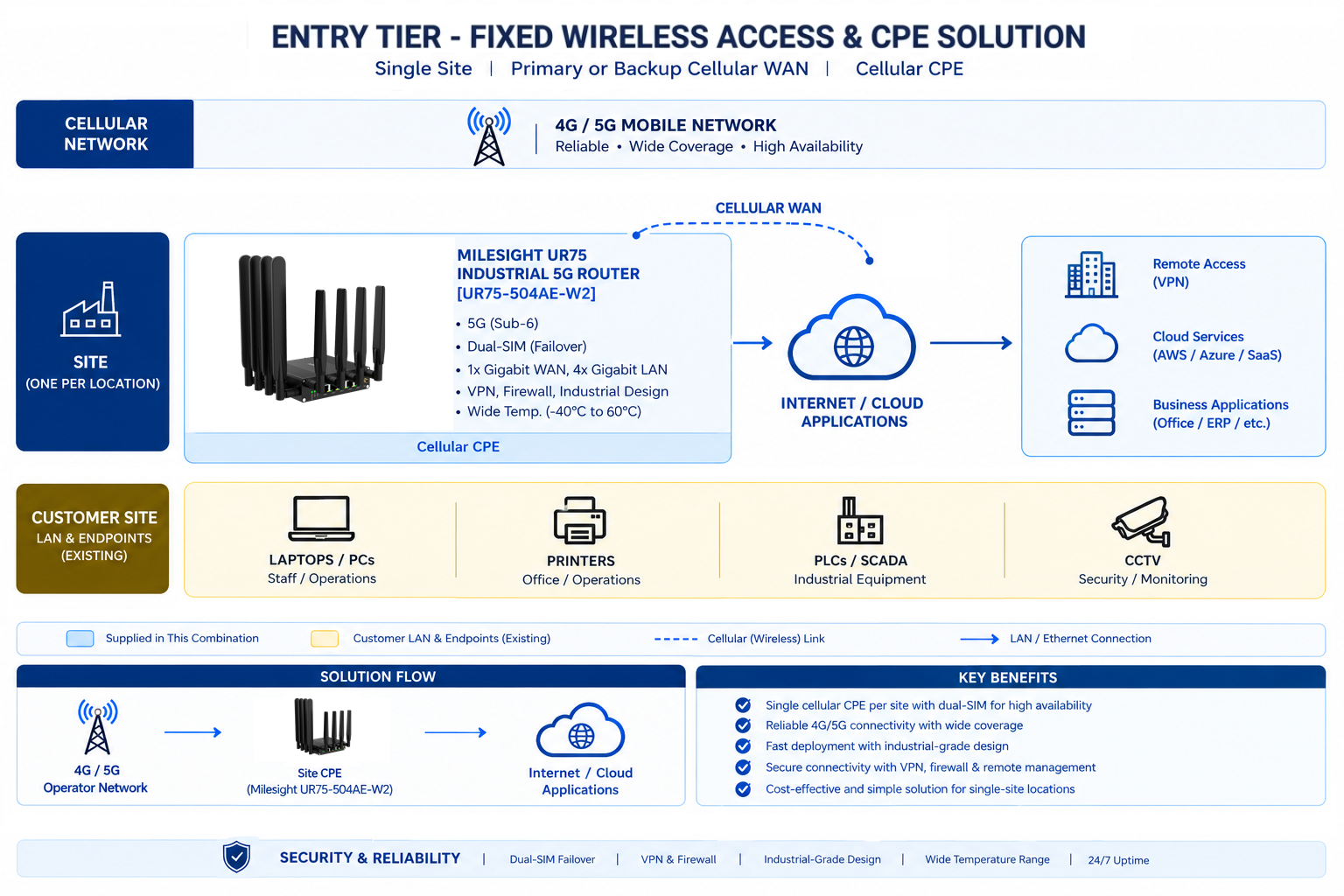

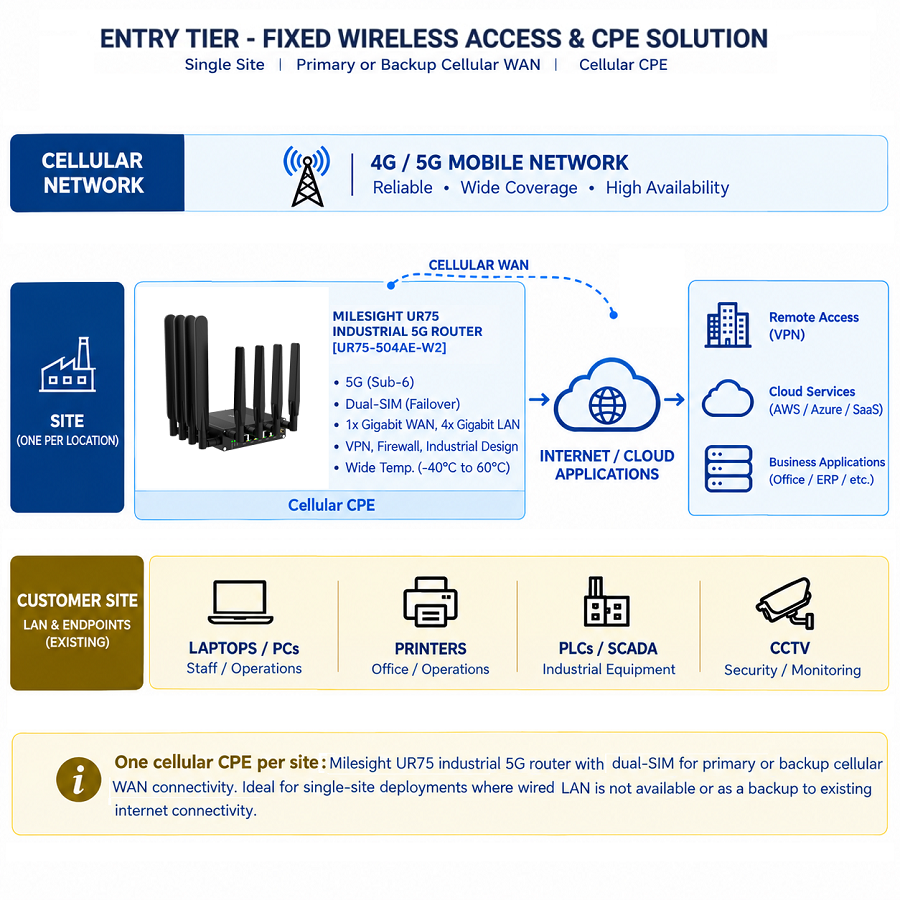

The Fixed Wireless Access & CPE Solution is built for operators who need connectivity live in days rather than months, at a site where fiber either hasn't arrived, isn't worth the civil work, or can't be trusted as the only path. Designed for the single location a first site, a remote outpost, a temporary compound, or a branch that needs an independent path alongside an existing line this Solution delivers carrier-grade 5G and 4G as either the primary WAN or a backup, with dual-SIM failover across two carriers. The site goes live as soon as power and a SIM are in place, turning a months-long circuit order into a same-week installation.

Anchored by the Milesight UR75 Industrial 5G Router, the Solution puts the whole site edge in one unit. The router runs 5G Sub-6 GHz in both NSA and SA modes with dual carrier aggregation for theoretical downlink up to 4.67 Gbps, and falls back automatically to 4G LTE and WCDMA where 5G coverage is thin. A quad-core ARM Cortex-A55 platform carries the routing, VPN and Wi-Fi load, so the single box does not become the bottleneck the moment the site grows past a handful of endpoints.

Resilience does not stop at the SIM. Two Mini SIM slots fail over and fail back automatically between carriers, and the same mechanism extends across Ethernet WAN and Wi-Fi WAN, so the site rides whichever path is healthy rather than depending on one network or one medium. A hardware watchdog recovers the unit unattended after a module or OS fault, which matters at exactly the kind of site that has no one on the ground to power-cycle it. This is what turns fixed wireless at a single location from a best-effort link into a path an operator can stand a site on.

The carrier radio and core, the SIMs, and the site LAN and endpoints all remain the customer's the Solution supplies the CPE that bridges the two. Because the unit combines cellular backhaul, five Gigabit Ethernet ports, dual-band Wi-Fi 6 and serial and I/O interfaces in one industrial housing, the site needs no separate access point, serial gateway or switch to come online. The result is a single, repeatable way to light a location: mount the unit, drop in two SIMs, and the site is on the network in days.

Features

• Days, not months the site goes live as soon as power and a SIM are in place; no circuit order, no cabling
• Dual-SIM failover two SIM slots fail over and fail back automatically, so the site never depends on one carrier
• Multi-path resilience automatic failover extends across SIM1, SIM2, Ethernet WAN and Wi-Fi WAN, not just between carriers
• Primary or backup WAN valid as the sole connection where there's no fiber, or as an independent resilience path alongside one
• 5G with automatic fallback Sub-6 GHz NSA and SA with dual carrier aggregation, falling back to 4G LTE and WCDMA on thin coverage
• Whole site edge in one unit 5 x Gigabit Ethernet (1 WAN + 4 LAN) and dual-band Wi-Fi 6 remove the need for a separate switch or access point
• Serial and I/O onboard RS232 and RS485 with Modbus TCP/RTU gateway support, plus digital input and output for field equipment
• Built for harsh siting IP30 metal housing, -30°C to +60°C operating range, DIN rail, wall or desktop mounting
• Unattended recovery hardware watchdog restores service after a module or OS fault without a site visit
• Clean layer separation Solution supplies the CPE; SIMs, carrier network and site LAN remain the customer's

Specifications

Ideal For

Single sites that need connectivity before fiber can reach them, first-phase deployments ahead of a wider rollout, temporary and seasonal locations that never justify a fixed circuit, branches needing an independent backup path alongside an existing line, remote and unattended sites where a technician visit is expensive, industrial and OT locations requiring wide-temperature DIN-rail CPE, and any operator seeking one repeatable, cabling-free way to bring a location online in days.
