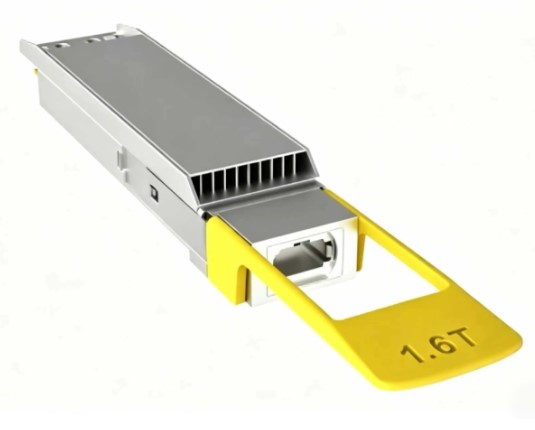

Eopotolink EOLO-16T-02-XXX, OSFP 1.6T 2FR4 2km Transceiver Module

Eoptolink EOLO-16T-02-XXX OSFP 1.6TbE 2FR4 2km Dual LC Transceiver Module

The Eoptolink EOLO-16T-02-XXX is an OSFP optical transceiver module designed for 1.6TbE connectivity. It supports an application configuration of 2 × 800GbE and provides transmission distances of up to 2km over single-mode fiber (SMF).

This 1.6T OSFP transceiver features a dual duplex LC optical interface and 8 optical lanes operating at 212.5Gb/s per lane. The optical wavelength uses CWDM near 1310nm for high-speed optical transmission.

The module provides 8 electrical host interfacing lanes, with each electrical lane operating at 212.5Gb/s using PAM4 modulation. It is designed to support high-bandwidth connectivity for compatible optical networking environments.

The EOLO-16T-02-XXX uses CMIS 5.0 and newer for its management interface and is OSFP MSA compliant. No additional FEC is required on the optical side according to the provided vendor data.

Designed for AI/ML clusters and cloud datacenter networks, this 1.6TbE transceiver provides a high-density optical connectivity solution combining dual 800GbE applications with 2km SMF transmission.

Key Features

• 1.6TbE OSFP transceiver module

• 2 × 800GbE application

• Up to 2km distance

• Single-mode fiber (SMF)

• Dual Duplex LC optical interface

• 8 optical lanes

• 212.5Gb/s optical lane rate

• 8 electrical host interfacing lanes

• 212.5Gb/s electrical lane rate

• PAM4 electrical modulation

• CWDM wavelength near 1310nm

• CMIS 5.0 and newer management interface

• OSFP MSA compliant

• No additional FEC required on optical side

• Designed for AI/ML clusters and cloud datacenter networks

Specifications
