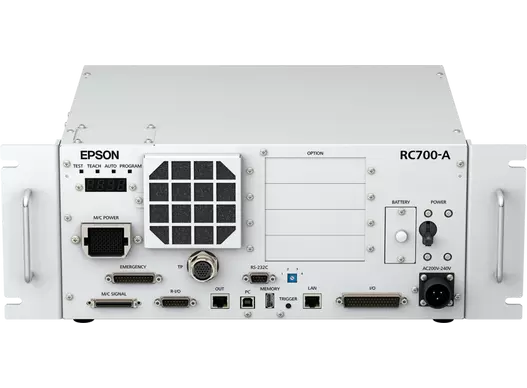

Epson RC700-A Robot Controller, 512MB - expandable to 2GB

Tired of robot controllers that freeze when your program grows? The Epson RC700-A Robot Controller gives you a solid base with 512 MB memory and room to expand to 2 GB, so your automation never stops. It is built for industrial robots that need fast, reliable motion control. If you have experienced downtime because of limited memory or unstable hardware, this controller solves that problem. You also get a sturdy metal case that fits into standard racks, so installation is quick and secure.

Epson RC700-A Robot Controller, 512MB - expandable to 2GB

Many factories lose production when a controller cannot handle complex paths or large data sets. That loss directly hits your profit and can damage customer trust. The Epson RC700-A removes the bottleneck by offering a 32-bit ultra-low-voltage CPU, 512 MB of DRAM that can be upgraded to 2 GB, and built-in safety checks. The controller also supports the Epson RC+ 7.0 development environment, giving you a graphical interface to test and debug your programs. With this hardware you keep the line moving, even as your applications grow.

Benefits

• Easy memory upgrade lets you add capacity without replacing the whole unit.
• Real-time motion control reduces cycle time and improves throughput.
• Built-in safety sensors stop the robot before damage occurs.
• USB and Ethernet ports simplify connection to PCs and PLCs.
• Compatible with Epson SPEL+ language, so existing code runs with little change.
• Integrated API lets you link the robot to other software, enabling full automation of your plant.

Usages

The controller fits into pick-and-place cells, welding robots, and assembly lines that need precise positioning. It works well in automotive paint booths where timing is critical, and in food-packaging lines that require quick changeovers. If you run a small-batch production line, the expand-able memory lets you store many product recipes without slowing down. It can also be used in research labs for prototype testing, where the ability to change parameters on the fly is essential. Anywhere you need reliable, fast robot control, the Epson RC700-A is ready.

Key Features

• 512 MB DRAM standard, expandable to 2 GB.
• 32-bit ultra-low-voltage processor for low power consumption.
• 24 digital and 16 analog I/O channels built in.
• RS-232C, USB 2.0-A (2 ports) and Ethernet 100 Base-TX connectivity.
• Expansion slots for up to four additional I/O cards.
• Fieldbus options include DeviceNet, Profibus, Ethernet/IP and Profinet.
• Safety functions such as emergency stop, dynamic brake and overload detection.
• Temperature range from 5 C to 40 C and humidity up to 80 % non-condensing.
• Certified to RoHS and ANSI/RIA R15.06 standards.
• 12-month warranty for peace of mind.
• Pulse generating module with up to 4 channels per card for precise timing signals.
• External Control Point (ECP) motion support for coordinated multi-axis movements.

Specifications
