Turn your audio ideas into working prototypes in minutes. The Espressif ESP32-S31-Korvo-1 V1.1 is a compact audio development board that lets you build smart speakers, voice-controlled gadgets, and streaming devices without hunting for separate modules. Many hobbyists and engineers waste time wiring microphones, amplifiers and Wi-Fi chips together, only to hit compatibility problems. This board bundles everything you need, so you can focus on the sound and the user experience instead of hardware headaches.

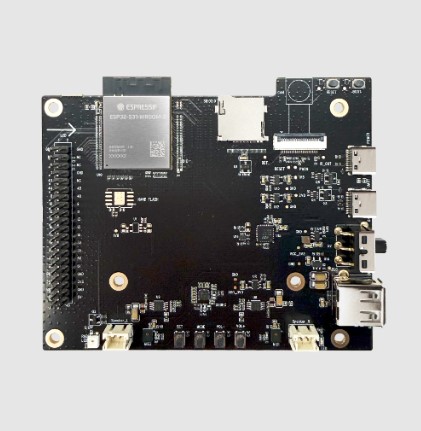

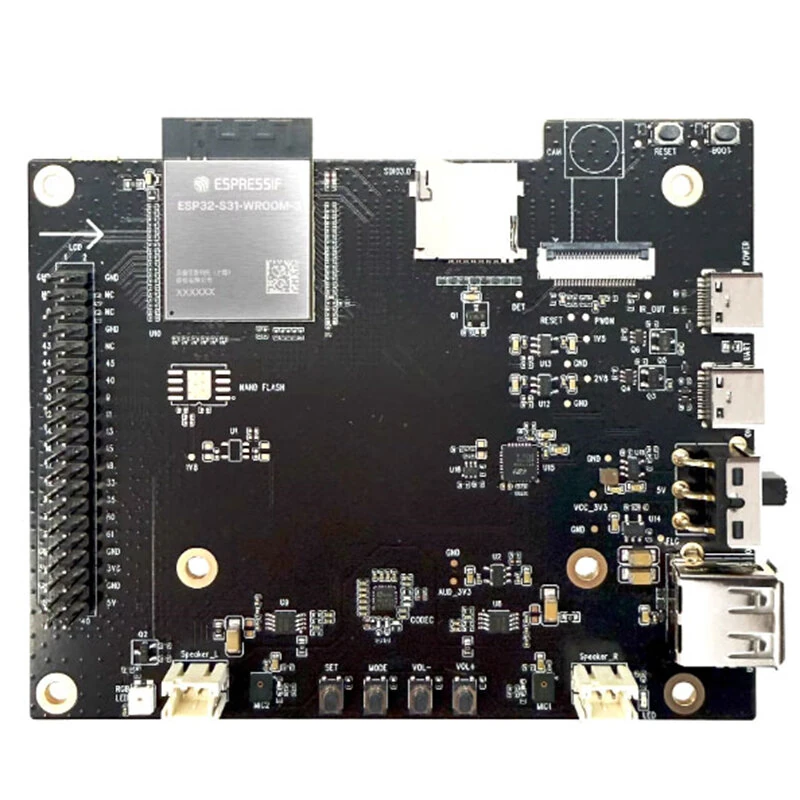

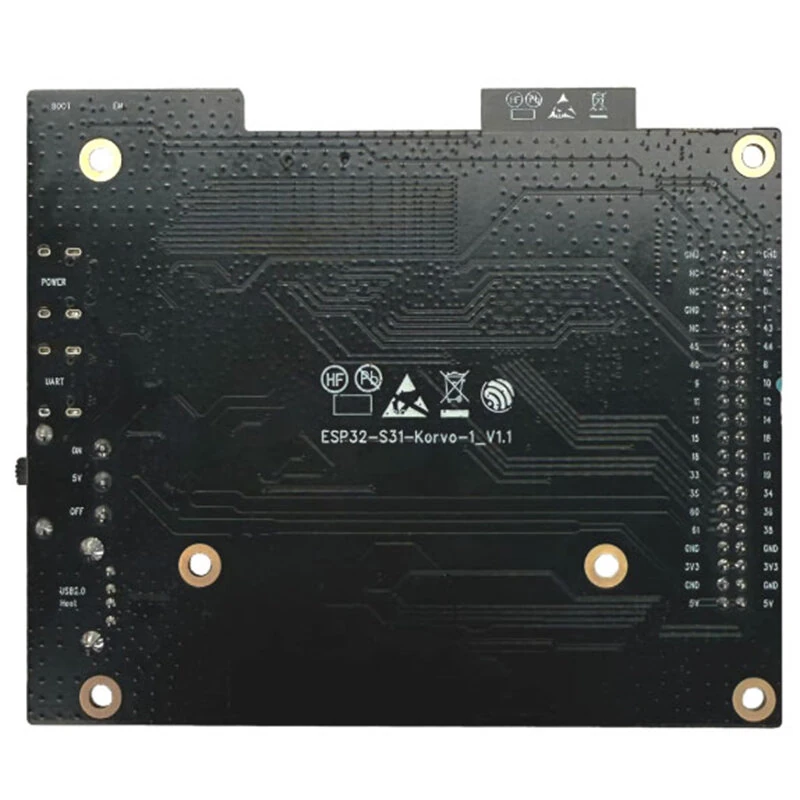

Espressif ESP32-S31-Korvo-1 V1.1, AI Intelligent Multimedia Development Board
Developers often struggle to find a single platform that supports high-quality audio input, powerful playback, and wireless connectivity. Without such a platform, projects become bulky, costly, and hard to scale. The Espressif ESP32-S31-Korvo-1 V1.1 solves that by integrating a dual-mic array, stereo codec, class-D amplifiers, and dual USB-C ports on a single board. It also offers built-in Wi-Fi and Bluetooth LE, letting you add voice interaction, streaming, or remote control with a few lines of code. The result is a clean, reliable prototype that can move straight to production.
The ESP32-S31-Korvo-1 V1.1 is a multimedia development board based on the ESP32-S31-WROOM-3 module for smart audio and HMI applications. It features a dual-microphone array, speaker output, and a microSD card slot; supports speech recognition and voice wake-up; and can connect to a 4.3-inch LCD subboard and DVP camera.
Key Features
- ESP32-S31 WROOM-3 SoC with dual-core processor.
- ES8389 low-power stereo audio codec.
- Dual NS4150B 3 W Class-D amplifiers.
- 3.5 mm headphone jack and two 4 speaker outputs.
- I2S and I2C audio interfaces.
- Dual USB-C ports for power and programming.
- MicroSD card slot for external storage.

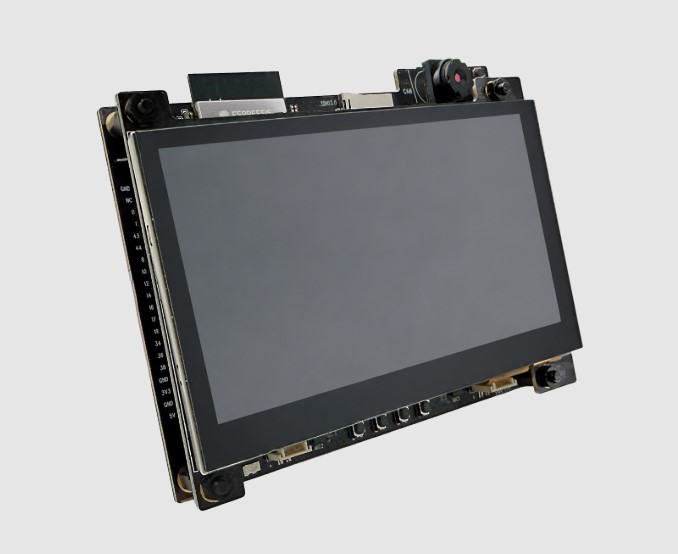

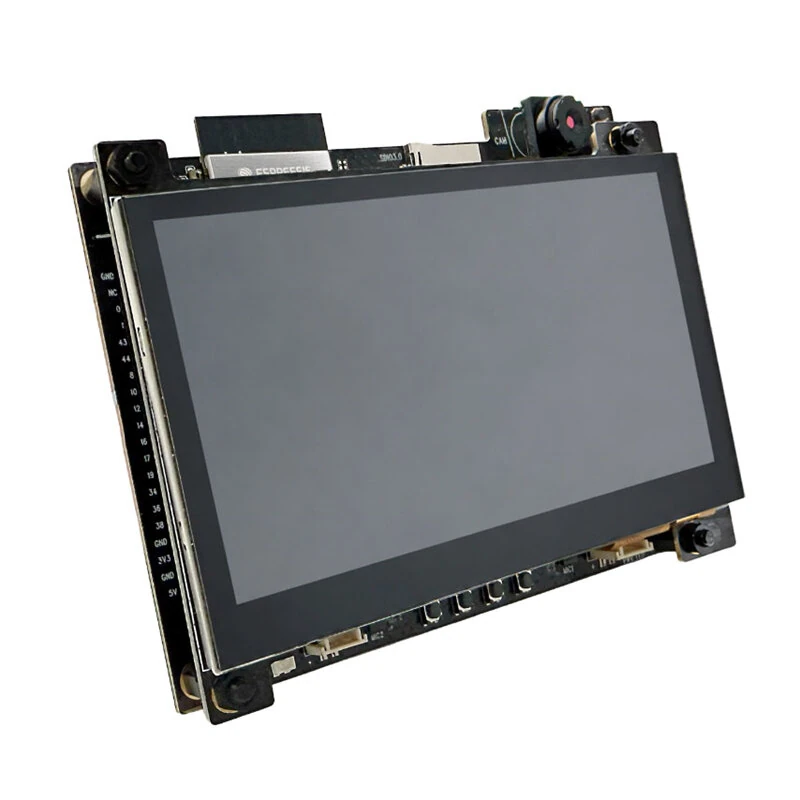

- Support for 4.3-inch LCD expansion via FPC connector.
- DVP camera interface for video input.
- Onboard 5 V to 3.3 V LDO and buck converter for stable power.
Specifications
| General |
|
| Product |
Espressif ESP32-S31-Korvo-1 |
| Version |
V1.1 |
| Product Type |
AI Intelligent Multimedia Audio Development Board |
| Module |
ESP32-S31-WROOM-3 |
| Applications |
Smart audio, voice interaction, speech recognition, AIoT, HMI, audio/video streaming |
| Processor |
|
| SoC |
ESP32-S31 Dual-Core RISC-V MCU |
| Wireless Connectivity |
2.4 GHz Wi-Fi 6, Bluetooth® LE 5.4 |
| Audio |
|
| Audio Codec |
ES8389 Low-Power Stereo Audio Codec |
| Microphones |
Dual onboard analog microphone array |
| Speaker Output |
2 × Speaker output ports (supports 4 Ω, 3 W speakers) |
| Audio Amplifiers |
2 × NS4150B 3 W Class-D amplifiers |
| Headphone Output |
3.5 mm stereo audio jack |
| Audio Interfaces |
I2S, I2C |
| Audio Features |
Speech recognition, near-field and far-field voice wake-up |
| Display & Camera |
|
| Display Support |
Supports 4.3-inch LCD expansion board |
| Camera Support |
DVP camera interface |
| Storage |
microSD card slot |
| USB & Interfaces |
|
| USB Ports |
2 × USB Type-C (Power & Programming), 1 × USB 2.0 Type-A (OTG High-Speed) |
| Expansion Interface |
FPC connector for LCD expansion board |
| User Interface |
|
| User Buttons |
Boot, Reset, PLAY, SET, VOL+, VOL− |
| Status LED |
5 V Power LED |
| Power |
|
| Power Input |
USB Type-C (5 V) |
| Power Management |
Onboard 5 V to 3.3 V LDO and Buck DC-DC converter |
| Software |
|
| Development Framework |
ESP-IDF (supports ESP-BSP and ESP-SR) |
| Development Host OS |
Windows, Linux, macOS |
