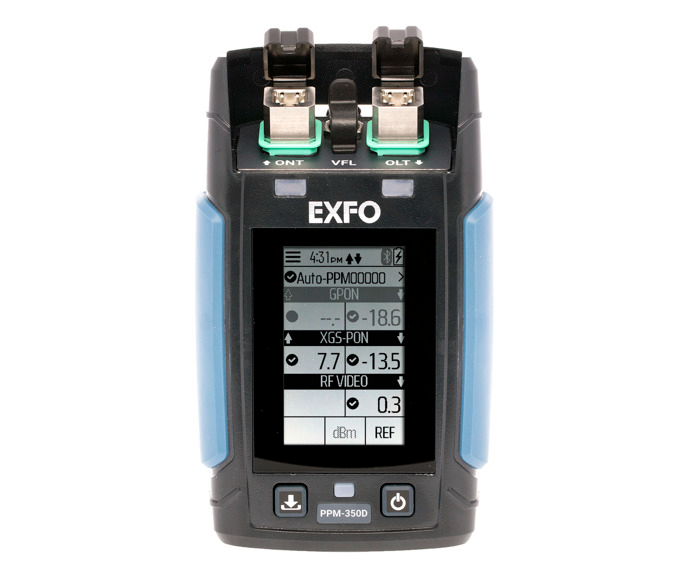

EXFO PPM-350D Next-Gen PON Power Meter
The first PON-aware™ power meter to automatically detect and test next-gen and legacy PON technologies. Unique PON-aware™ capability automatically detects PON technology in use. Compatible with GPON and EPON networks (GPON, EPON, XG-PON, XGS-PON, NG-PON2, 10G-EPON). Supports 10G-capable PON networks. Pass-through mode for ONT/ONU verification. Bluetooth and USB connectivity. Smart app to configure, execute and report jobs.
To provide the right speeds to the right customers, communications service providers (CSPs) are deploying next-gen and legacy passive optical network (PON) technologies by overlaying multiple new wavelengths on existing fibers. This brings new challenges for quick and accurate testing during the critical service activation phase: CSPs need power meters capable of testing next-gen and legacy PON technologies, and their field teams need to be sure they are correctly testing the right technology.
The PPM-350D was designed to tackle both challenges head-on with its unique PON-aware™ technology. Developed in partnership with a Tier 1 CSP, the PPM-350D PON Power Meter automatically detects and adapts test parameters for the PON technology in use at the customer premises, eliminating costly guesswork by field technicians. As a result, service providers can deploy faster, cut activation costs and boost customer satisfaction.
Specifications
| Storage Capacity |
Up to 3500 results |
| Battery Autonomy |
8 hours of continuous use |
| Battery Charge Time |
< 2 hours |
| Display Resolution |
0.01 dBm |
| Measurement Units |
dB, dBm |
| Display Size |
69 mm (2.7 in) |
| Weight |
420 g (0.93 lb) |
| Display Type |
Reflective |
| Display Pixel Count |
400 × 240 |
| Operating Temperature |
0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature |
–40 °C to 70 °C (–40 °F to 158 °F) |
| Connector |
USB Type C |
| Connectivity |
Bluetooth Low Energy |
| Smart Device OS Compatibility |
Android 6 and above, iOS 11 and above |
| Standard Accessories Included |
Instruction manual (soft copy), Certificate of calibration (hard copy), GP-3257 USB-A to USB-C cable, GP-2227 USB AC adapter, GP-2275 Wrist strap, GP-2274 Protective cover for optical ports, GP-2277 Rechargeable battery, GP-10-071 Soft carrying case, GP-10-104 Rigid carrying case, GP-1008 VFL adapter for 1.25 mm ferrule |
