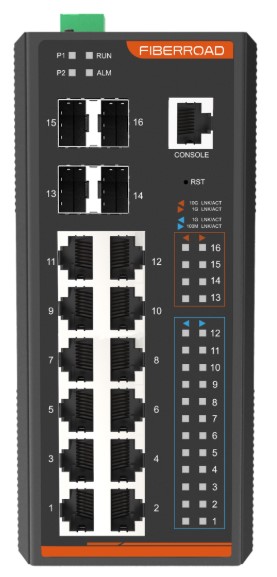

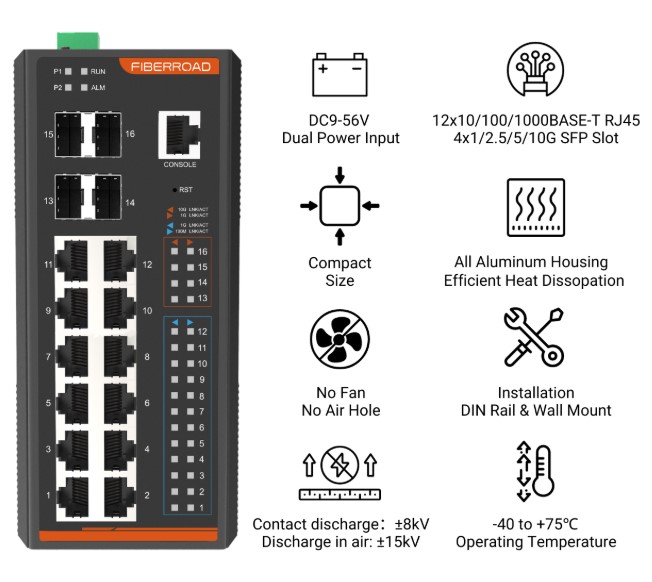

| Hardware Specifications |
| Copper Port |
12×10/100/1000Base-T RJ45 auto-MDI/MDI-X |
| SFP/SFP+ Port |
4X1/2.5/5/10G SFP/SFP+ slots |
| Compatible with 100BASE-FX,1000BASE-SX/LX/BX,2500BASE-X,5000BASE-X SFP and 10GBASE-SR/LR SFP+ optical transceiver |
| Console |
1xRJ45-to-RS232 serial port(115200,8,N,1) |
| Reset Button |
＜5 sec: System Reboot |
| ＞ 5 sec: Factory Default |
| Connector |
6-pin removable terminal block for power input |
| Pin 1-2 for Power 1, Pin 3-4 for Power 2, Pin 5-6 for fault alarm |
| Alarm |
One relay output for power failure. Alarm relay current carry ability:2A @ 24VDC |
| Enclosure |
IP40 aluminium case |
| Installation |

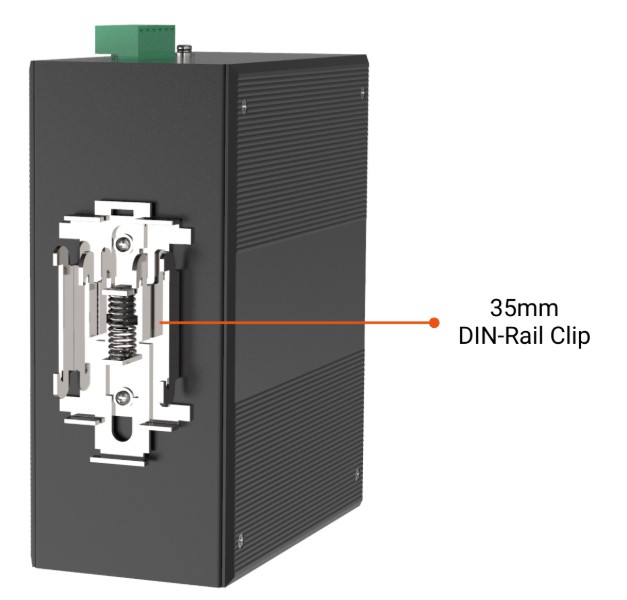

DIN-rail or wall mounting |
| Dimension(WxDxH) |
160mm x 132mm x 70mm |
| Weight |
1100g |
| Power Consumption |
Max. 16.8 watts/57.3BTU(System on) |
| MAX. 38.2 watts/10.3BTU(Full loading) |
| Electrostatic Discharge |
Contact discharge：±8kV |
| Discharge in air: ±15kV |
| Surge Protection |
Power Supply: ±4kV |
| RJ45 Port: ±2kV |
| LED Indicators |
P1(Green), P2(Green), ALM(Red). RUN(Green) |
| SFP: 1/2.5/5G(Green), 10G(Green) |
| RJ45: 10/100M(Green), 1000M(Green) |
| Switching Specifications |
| Switch Architecture |
Store-and-forward |
| Switch Fabric |
128 Gbps/non-blocking |
| Address Table |
32K entries, automatic sources address learning and aging |
| Data Buffer |
32Mbits |
| Jumbo Frame |
10K bytes |
| Flow Control |
IEEE 802.3x pause frame for full duplex |
| Back pressure for half duplex |
| Layer 3 Function |
| IP Interfaces |
Max. 128 VLAN interface |
| Routing Table |
Max. 512 static route entries |
| Max. 3072 routing table entries |
| Routing Protocol |
IPv4 RIPv2 |
| IPv4 OSPFv2 |
| IPv6 OSPFv3 |
| IPv4 Hardware Static Routing |
| IPv6 Hardware Static Routing |
| Layer 2 Functions |
| Port Configuration |
Port Disable/Enable |
| Auto-negotiation 10/100/1000Mbps full and half duplex mode selection |
| Flow control disable/enable |
| Port link capability control |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring |
TX/RX/Both |
| Many-to-1 monitor |
| Mirror – Remote Switched Port Analyzer(Cisco RSPAN) |
| Supports up to 5 sessions |
| VLAN |
IEEE 802.1Q tagged VLAN |
| IEEE 802.1ad Q-in-Q tunneling |
| Private VLAN |
| MAC-based VLAN |
| VLAN Translation |
| VCL Protocol-based VLAN |
| Voice VLAN |
| MVR(Multicast VLAN registration), MVRP(Multiple VLAN Registration Protocol |
| GVRP |
| Up to 4K VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk |
| 8 trunk groups with 16 ports per trunk group |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol |
| IEEE 802.1w Rapid Spanning Tree Protocol |
| IEEE 802.1s Multiple Spanning Tree Protocol |
| Supports 7 MSTP instance |
| BPDU Guard, BPDU filtering and BPDU transparent |
| Root Guard |
| IGMP Snooping |
IPv4 IGMP(v1/v2/v3) snooping |
| IPv4 IGMP querier mode support |
| Supports 255 IGMP groups |
| MLD Snooping |
IPv6 MLD(v1/v2) snooping |
| IPv6 querier mode support |
| Support 255 MLD groups |
| Bandwidth Control |
Per port bandwidth control |
| Ingress: 10Kbps ~ 13128Mbps |
| Egress: 10Kbps ~ 13128Mbps |
| Ring, Redundancy, Protection |
APS Protocol (1+1 , 1:1 Mode) |
| MRP(Media Redundancy Protocol) |
| ITU-T G.8032 ERPSv2 |
| Recovery time＜10ms @ 3 nodes |
| Recovery time＜50ms @ 16 node |
| Supports Major and sub-ring |
| Discovery and Monitoring |
UPnP(Universal Plug and Play) |
| LLDP |
| LLDP-MED |
| UDLD(Unidirectional Link Detection) |
| sFLOW |
| OAM |
IEEE 802.3ah OAM, |
| IEEE 802.1ag Connectivity Fault Management(CFM) |
| Synchronization |
IEEE 1588v2 PTP(Precision Time Protocol) |
| PTP Master |
| PTP Slave |
| Boundary Clock |
| Peer-to-peer transparent clock |
| End-to-end transparent clock |
| Profile:1588/G.8265.1/G.8275.1/802.1AS |
| QoS |
Traffic classification based, strict priority and WRR |
| 8-level priority for switching |
| -Port number |
| -802.1p priority |
| -802.1Q VLAN tag |
| -DSCP/ToS field in IP packet |
| Time-Sensitive Networking Protocols |
High Precision Time Synchronization |
| -IEEE1588(Time Stamping) |
| -802.1AS-Rev gPTP default profile |
