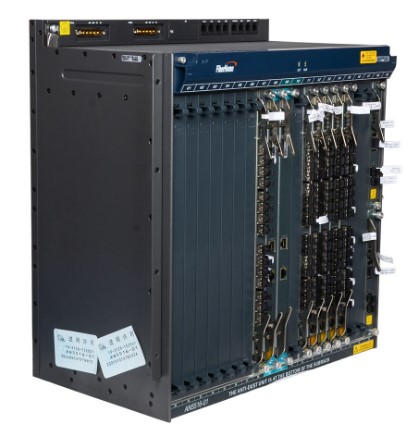

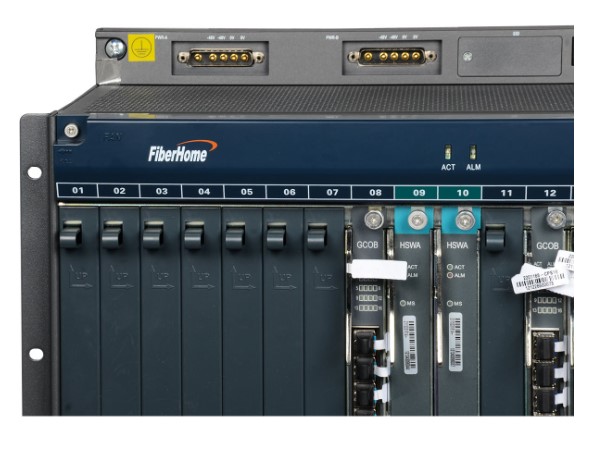

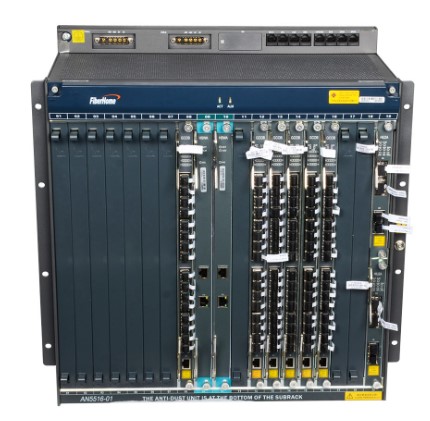

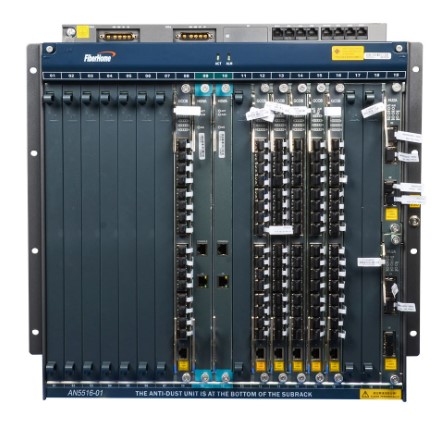

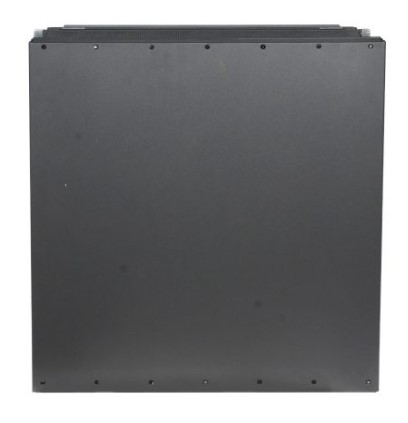

FiberHome AN5116-06B Hybrid-Platform Optical Line Terminal (OLT)
The FiberHome AN5116-06B is a hybrid-platform Optical Line Terminal designed for high-capacity and high-density fiber access networks. It supports up to 256 GPON ports or 64 XGPON ports, with a 3.84T switch card capacity and 5.12T backplane bus capacity.
The AN5116-06B provides flexible uplink connectivity with support for 6 x GE / 1 x 10GE, 4 x GE / 2 x 10GE, or 2 x GE / 4 x 10GE interfaces. These uplink options can be provided through optical or electrical interfaces according to network requirements.
For multiservice access, the FiberHome AN5116-06B supports Internet, Voice, IPTV, CATV, and TDM services. It also supports IEEE 1588v2 and a 1PPS+TOD clock interface, along with OSPF, VRRP, and RIP L3 protocols for network connectivity and synchronization.
The AN5116-06B provides a unified MSAN/GPON/10G PON/P2P platform to support smooth FTTX evolution. It supports optical split ratios of 1:32, 1:64, and 1:128 for long-haul transmission and supports CLASS C+ optical modules.
Designed for reliable network deployment, the FiberHome AN5116-06B uses a standard 19-inch cabinet with 16 service slots and supports front-access card installation and hot plugging for all cards and PON modules. It also features redundancy protection, end-to-end protection, RSTP/LACP uplink protection, intelligent temperature control, and energy-saving idle port sleep mode.
Key features
-
Supports up to 256 GPON or 64 XGPON ports
-
3.84T switch card capacity
-
5.12T backplane bus capacity
-
Supports multiple GE and 10GE uplink configurations
-
Supports Internet, Voice, IPTV, CATV, and TDM services
-
Supports IEEE 1588v2 and 1PPS+TOD clock interface
-
Standard 19-inch cabinet with 16 service slots
-
Supports GPON, 10G PON, P2P, and MSAN FTTX evolution
Specifications:
| Super Access Ability |
|
| GPON capacity |
High capacity and Density carrier-class GPON platforms supporting 256 GPON ports or 64 XGPON ports, switch card capacity of 3.84T and backplane bus capacity of 5.12T |
| Uplink interfaces |
Support 6 x GE /1 x 10GE + 4 x GE/ 2 x 10GE + 2 x GE/4 x10GE（optical or electrical）. |
| Private uplink interface |
Support STM-1/E1 private uplink interface and up to 16×16GE downlink P2P interfaces. |
| Optical split ratio |
It has capability to support split-ratio of 1:32/64/128 long haul transmission and CLASS C+ optical module. |
| Multi-service Access |
|
| Services |
Provide Internet/ Voice/ IPTV/ CATV/ TDM services. |
| Clock synchronization |
Support IEEE 1588v2 protocol and 1PPS+TOD Clock interface. |
| L3 protocols |
Support OSPF, VRRP and RIP L3 protocols. |
| Unified platform |
Unified platform of MSAN/GPON/10G PON/P2P for FTTX Smooth evolution. |
| High Reliability Optimization Design |
|
| Cabinet |
Standard 19” inches cabinet supporting 16 service slots. |
| Card access |
Full front card and front access design. |
| Hot plug |
Support hot plug for all cards and PON modules. |
| Redundancy protection |
Support redundancy error-check protection for services, controller and uplink cards. |
| Protection |
End-to-end protection, uplink ports RSTP/LACP protection and downlink PON port millisecond level switch protection. |
| Green Energy |
|
| Power consumption |
The overall power consumption is lower than the average industry level |
| Chip |
Use the high performance and low power consumption chip. |
| Intelligent temperature control |
8-level intelligent temperature control fan and support idle ports sleeping mode and energy saving. |
