You need a fast, reliable link for your data center, but the current transceiver keeps dropping packets and slowing your apps. The FiberMall OSFP-1.6T-DR8 1.6T, OSFP224 PAM4 1311nm SMF Optical Transceiver Module is built to replace that weak link. It connects servers, switches and routers with a 1.6 Tbps capacity over single-mode fiber, letting you move huge files and run demanding workloads without interruption.

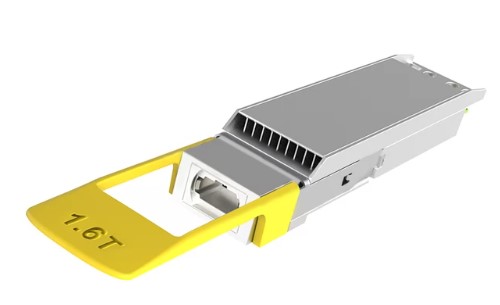

FiberMall OSFP-1.6T-DR8 1.6T, OSFP224 PAM4 1311nm SMF Optical Transceiver Module
Data centers often struggle with bandwidth bottlenecks when they try to upgrade from 400 G to 800 G or 1.6 T. The bottleneck slows applications, raises latency and can cause costly downtime. This module solves the problem by delivering a full 1.6 Tbps over 1311 nm SMF, fitting into standard OSFP slots and supporting the latest PAM4 modulation. With a simple plug-in design you get immediate capacity growth, no extra chassis or power changes needed.
Key Features
- Form factor: OSFP
- Maximum data rate: 1 x 1.6 Tbps, 2 x 800 Gbps, 4 x 400 Gbps, 8 x 200 Gbps
- Wavelength: 1311 nm
- Maximum distance: 500 m over SMF
- Modulation: PAM4
- Connector type: MTP/MPO-16
- Voltage supply: 3.3 V
- Cable type: Single-mode fiber (SMF)
- Protocol compliance: OSFP1600 MSA
- Vendor: FiberMall
- Part number: OSFP-1.6T-DR8
Specifications
| FiberMall P/N |
OSFP-1.6T-DR8 |
| Vendor Name |
FiberMall |
| Form Factor |
OSFP |
| Max Data Rate |
1x1.6T, 2x800G, 4x400G, 8x200G |
| Wavelength |
1311nm |
| Max Distance |
500m |
| Modulation Format |
PAM4 |
| Connector |
MTP/MPO-16 |
| Voltage Supply |
3.3V |
| Cable Type |
SMF |
| Operation Temperature |
0 to 70°C (32 to 158°F) |
| Protocols |
OSFP1600 MSA |
