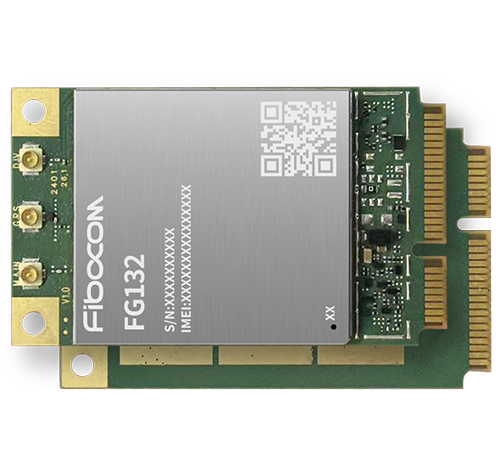

Fibocom FG132 MiniPCIe-CN 5G Module

Many modern devices need fast, reliable wireless links, but older modules cannot keep up with 5G speeds or the many bands used in China. When a device stalls or drops a connection, the whole system suffers - data is lost, users get frustrated, and businesses lose money. The Fibocom FG132 MiniPCIe-CN 5G Module solves this by delivering full-band 5G and LTE support in a compact MiniPCIe card, giving you a clear path to high-speed, low-latency connectivity.

Fibocom FG132 MiniPCIe-CN 5G Module with Fibocom

Imagine a tiny card that brings the power of 5G to any device that has a MiniPCIe slot. The Fibocom FG132 MiniPCIe-CN 5G Module is exactly that. It is built for industrial, automotive, and edge-computing applications that need fast data, voice, and SMS in one package. If your current modem cannot handle the new 5G bands or drops calls, this module gives you the speed and reliability you need, all while supporting Windows, Linux, and Android drivers.

Usages

The module fits perfectly in smart-factory controllers that must send sensor data in real time. It can be installed in autonomous vehicles to keep navigation maps up to date without delay. Remote monitoring stations use it to stream video and telemetry from far-flung sites. Point-of-sale terminals benefit from fast payment verification, and drones gain reliable command and control links even at high altitude. In each case the MiniPCIe form factor makes integration simple and space-saving.

Benefits

• Instant 5G speeds reduce data transfer time, so your applications run smoother.
• Multi-band support means the same card works across all Chinese carriers.
• Built-in voice, SMS, and GNSS let you add communication and location without extra hardware.
• Cross-platform drivers let you use the module with Windows, Linux, or Android systems.
• Compact MiniPCIe size saves space in tight enclosures, keeping your design compact.

Key Features

• Supports 5G NR SA bands N1, 3, 5, 8, 28, 40, 41, 78, 79.
• LTE bands include B1, 3, 5, 8, 34, 38, 39, 40, 41.
• 256QAM downlink 223 Mbps and uplink 123 Mbps for 5G.
• 256QAM LTE downlink 195 Mbps and uplink 75 Mbps.
• DFOTA for remote firmware updates.
• GNSS, SMS, and voice functions all integrated.
• One SIM slot and one USB 2.0 interface.
• Two UART ports and GPIO support for flexible I/O.
• Drivers available for Windows, Linux, and Android.
• Regulated for CCC, SRRC, NAL, and ROHS compliance.

Specifications
