Many developers need a small, reliable way to add LTE connectivity to their machines. Without a solid module, projects can suffer from dropped connections, slow data rates, and long development cycles. This hurts product launch dates and can increase costs. The FIBOCOM L716 MiniPcle LTE Module solves those issues by delivering fast LTE speeds in a compact MiniPCIe card that fits into standard slots and works in harsh environments.

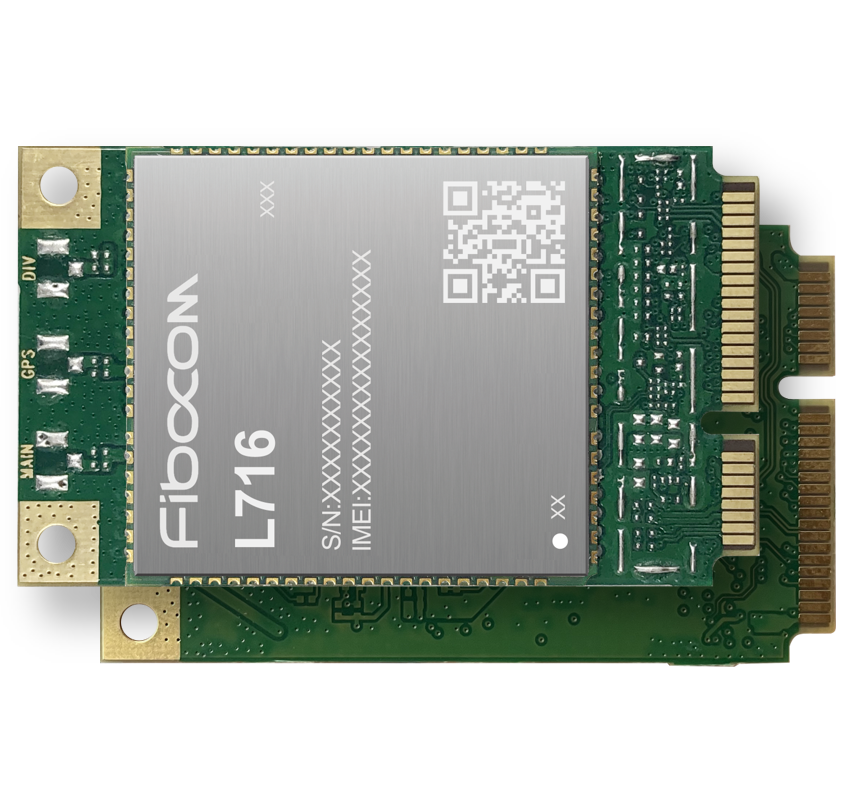

FIBOCOM L716 MiniPcle LTE Module with FIBOCOM - Power Your IoT Projects
The L716 is a MiniPCIe LTE card designed for embedded systems that need cellular data. It supports multiple bands across China, Europe, and Latin America, so you can deploy the same hardware worldwide. If you are struggling with unreliable Wi-Fi or need a backup connection for critical applications, this module gives you a clear, always-on link to the cloud.
Usages
The L716 fits into any device that has a MiniPCIe slot. It is ideal for industrial gateways that collect sensor data and send it to a server. It works well in digital signage that must download new content on the road. Vehicle telematics units can use it for real-time tracking and over-the-air updates. Point-of-sale terminals in remote stores can stay connected even when wired networks fail. It also serves as a backup link for edge computers in smart factories.
Benefits
- Fast LTE speeds up to 150 Mbps down and 50 Mbps up keep your data flowing.
- Wide band support lets you launch the same product in many regions.
- Rugged temperature range (-40 C to +85 C) ensures operation in tough environments.
- Low power consumption (3.3 V-4.4 V) helps battery-powered devices last longer.
- Standard interfaces (UART, USB, GPIO, SDIO) make integration simple for engineers.
Key Features
- MiniPCIe form factor, 51 30 3.4 mm size.
- Supports LTE-FDD bands B1/3/5/7/8/20/28 and LTE-TDD bands B34/38/39/40/41.
- Compatible with WCDMA and GSM/EDGE for fallback networks.
- Dual SIM slots (1.8 V/3.0 V) for redundancy.
- USB 2.0 interface for easy data transfer.
- UART x2, ADC x2, GPIO and SDIO for flexible I/O.
- Built-in MUX and USSD support for advanced signaling.
- Optional eSIM and OpenCPU for custom applications.
- Supports TCP/UDP, HTTP(S), FTP(S), MQTT, SSL/TLS protocols.
- Compliant with RoHS, CE, FCC and other regional regulations.
Specifications
| Package |
MiniPCIe |
| Dimensions (mm) |
51.0 x 30.0 x 3.4 |
| Frequency Bands -CN (China) |
LTEFDD:B1/3/5/8
LTETDD:B34/38/39/40/41
WCDMA:B1/5/8
GSM/GPRS/EDGE:900/1800MHz
|
| Frequency Bands -EU(EMEA/APAC) |
LTEFDD:B1/3/5/7/8/20/28
LTETDD:B38/40/41
WCDMA:B1/5/8
GSM/GPRS/EDGE:850/900/1800MHz
|
| Frequency Bands -LA (Latin America) |
LTE FDD: B1/2/3/4/5/7/8/28/66 |
| Power Supply |
3.3V ~ 4.4V (Typical 3.8V) |
| Operating Temp. |
-30°C ~ +75°C |
| Extended Temp. |
-40°C ~ +85°C |
| LTE FDD (Mbps) |
150(DL)/50(UL) |
| LTE TDD (Mbps) |
130(DL)/30.5(UL) |
| DC-HSPA+(Mbps) |
NA |
| HSPA/HSPA+(Mbps) |
21(DL)/5.76(UL) |
| WCDMA(Kbps) |
384(DL)/384(UL) |
| TD-SCDMA (Mbps) |
NA |
| EVDO(Mbps) |
NA |
| CDMA2000 1X(Kbps) |
NA |
| EDGE(Kbps) |
236.8(DL)/236.8(UL) |
| GPRS(Kbps) |
85.6 (DL)/85.6 (UL) |
| RemoteSIM |
NA |
| eCALL |
NA |
| OpenCPU |
Optional |
| eSIM |
Optional |
| MUX |
Supported |
| Jamming Detection |
NA |
| USSD |
Supported |
| STK |
NA |
| LBS |
NA |
| FOTA |
DFOTA |
| OSDrivers |
Linux/Windows/Android |
| GNSS |
Optional(-CN) |
| MMS |
NA |
| CSD |
NA |
| GNSS |
NA |
| TTS |
Optional |
| SNS |
Supported |
| AnalogAudio |
NA |
| DigitalAudio |
Supported |
| Voice Code |
Optional |
| VoiceCode |
Optional |
| Audio Play/Record |
Optional |
| Protocols |
TCP/UDP/HTTP(S)/FTP(S)
/HeartBeat/MQTT/SSL/TLS/ECLOUD/
|
| SIM |
x 2, 1.8V/ 3.0V |
| USB |
x 1, USB2.0 |
| PCIe |
NA |
| UART |
x2 |
| SPI |
NA |
| ADC |
x 2 |
| GPIO |
Supported |
| SDIO |
Supported |
| PCM |
Supported |
| SGMII |
RMII |
| Regulation -CN |
RoHS/SRRC/CCC/NAL |
| Regulation -EU |
RoHS/REACH/CE/UKCA/RCM |
| Regulation -LA |
RoHS/FCC/ANATEL/CRC |
| Operator |
NA |
| Industry |
NA |
