Imagine a gateway that can run heavy AI models and still fit on a small rack. The Firefly AIO-GS1N2 is that gateway. It combines NVIDIA Jetson Orin Nano and Rockchip RK3576 on one board, giving you two powerful processors in a single, compact device. If you have struggled with slow edge computers or need many network ports for cameras, this board solves the bottleneck and lets you deploy AI at the edge without extra hardware.

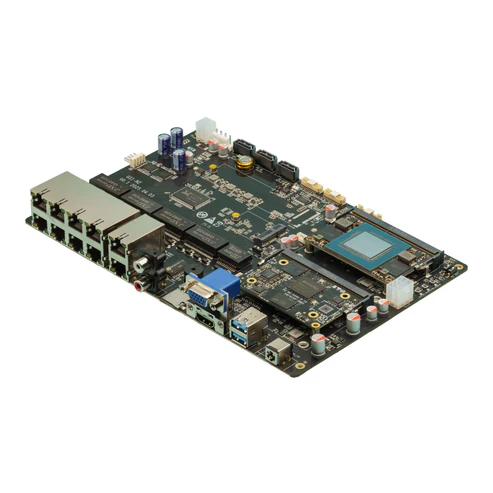

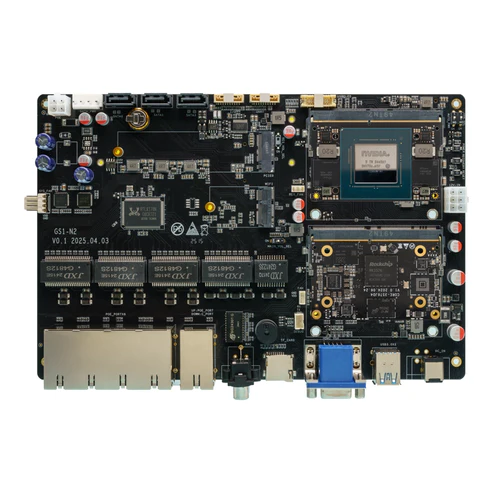

Firefly AIO-GS1N2, Orin Nano 8G RK3576, 8GB/64GB With PoE, Gateway Motherboard
Many edge projects fail because a single processor cannot handle both vision and data-fusion tasks, and adding more devices creates cable chaos. This matters when you need real-time decisions for security cameras or industrial sensors. The Firefly board solves the problem by offering a dual-heterogeneous architecture that delivers up to 73 TOPS of AI power, eight PoE-enabled Ethernet ports, and plenty of storage options, all in one sturdy chassis.
Key Features
- Dual processors: NVIDIA Jetson Orin Nano 8 GB + Rockchip RK3576 8 GB.
- AI performance up to 67 TOPS (Orin) + 6 TOPS (RK3576 NPU).
- Eight Gigabit Ethernet ports with PoE/PSE support.
- Three SATA 3.0, two M.2 (PCIe NVMe), and one microSD slot for storage expansion.
- 1 HDMI 2.0 and 1 VGA video output for flexible display options.
- 3 USB 3.0 ports for fast peripheral connections.
- ALARM, RS485, and general-purpose I/O interfaces for industrial signaling.
- DC 24 V/5 A or ATX power input for versatile power setups.
Specifications
| Product Name |
Firefly AIO-GS1N2 Gateway Motherboard |
| Configuration |
NVIDIA Jetson Orin Nano 8GB + Rockchip RK3576 Dual Module |
| Processor |
Dual heterogeneous architecture: NVIDIA Jetson Orin Nano + Rockchip RK3576 |
| AI Performance |
Up to 67 TOPS (Jetson Orin Nano) + 6 TOPS (RK3576 NPU) |
| Memory |
Jetson Orin Nano: 8GB LPDDR5; RK3576: 8GB LPDDR4/LPDDR4x |
| Storage |
RK3576 with 64GB eMMC; Jetson Orin Nano module has no onboard storage |
| Storage Expansion |
3 × SATA 3.0, 2 × M.2 M-Key (PCIe NVMe 2280), 1 × TF (microSD) card slot |
| Networking |
8 × Gigabit Ethernet (RJ45) with PoE/PSE support, 2 × Gigabit LAN (RJ45) |
| PoE |
Yes (With PoE version) |
| Video Output |
1 × HDMI 2.0, 1 × VGA |
| Audio |
1 × Audio In, 1 × Audio Out |
| USB Ports |
3 × USB 3.0 |
| Expansion Interfaces |
Multiple M.2 slots, SATA ports, ALARM/RS485/IO interface |
| Power Input |
DC 24V/5A or ATX power input (supports industrial power options) |
| Operating System |
Linux |
| Dimensions |
231.27 × 164.13 × 33.57 mm |
| Weight |
Approximately 350 g |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-20°C to +70°C |
| Applications |
AI gateway, enterprise security, smart city, traffic management, industrial automation, edge AI, home security |
