Industrial sites need a computer that can run AI models, handle video streams, and survive temperature swings. When a device stalls or overheats, production stops and costs rise. The Firefly EC-A8550JD4, 16GB/256GB QCS8550 AI Industrial Computer gives you fast processing, rugged design, and flexible connectivity, so your line keeps moving.

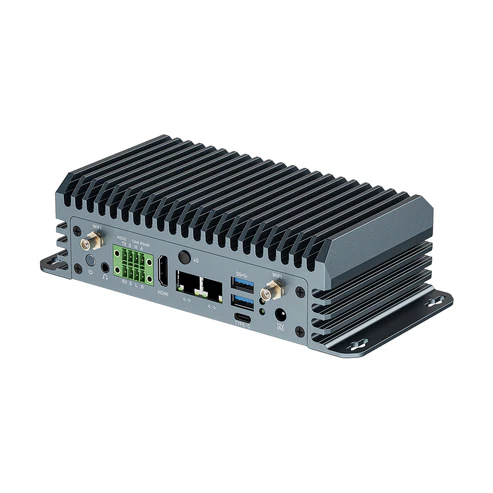

Firefly EC-A8550JD4, 16GB/256GB QCS8550 AI Industrial Computer with Firefly
Meet a compact board that packs a Qualcomm QCS8550 SoC, 16 GB LPDDR5x memory and 256 GB UFS4.0 storage. It runs Linux and supports AI inference, 8K video decode, and real-time edge analytics. Factories often lack space for bulky PCs, and they need a device that can survive dust, cold and heat. This Firefly model fits into tight enclosures and keeps working in harsh conditions.
Key Features
- Qualcomm QCS8550 SoC with octa-core Kryo CPU up to 3.36 GHz.
- Adreno 740 GPU with ray-tracing and Vulkan 1.2 support.
- Spectra Cognitive ISP with three 36 MP ISPs for high-quality imaging.
- 16 GB LPDDR5x RAM for smooth multitasking.
- 256 GB UFS4.0 storage for fast data access.
- 8K @ 60 fps decode and 8K @ 30 fps encode video capabilities.
- Dual RJ45 1 GbE ports and optional Wi-Fi 6/5G modules.
- HDMI 2.0 output delivering 4K @ 60 Hz video.
- 3.5 mm audio jack with microphone support.
- Operating temperature from -20 C to 60 C and humidity up to 90 %.
Specifications
| SoC |
Qualcomm QCS8550 |
| CPU |
Qualcomm Kryo® CPU: Octa-core 64-bit (1×[email protected] + (2+2)[email protected] + 3×[email protected]),
4nm advanced process, maximum frequency up to 3.36GHz
|
| GPU |
Adreno 740 GPU: Supports ray tracing technology, OpenGL ES 3.2, Vulkan 1.2, full-profile OpenCL 3.0, and Adreno NN Direct |
| NPU |
Equipped with Qualcomm Spectra Cognitive ISP (Image Signal Processor), featuring three 18-bit 36MP ISPs |
| RAM |
16GB LPDDR5x |
| Storage |
256GB UFS4.0 |
| Codecs |
Video decoding: 8K@60fps / 4K@240fps H.264/VP9/AV1
Video encoding: 8K@30fps / 4K@120fps H.264
Supports concurrent 4K@60fps decoding and 4K@60fps encoding for wireless display scenarios
|
| Power |
DC 12V (5.5mm × 2.1mm, supports 12V~24V wide voltage input) |
| Video Output |
1 × HDMI 2.0 (4K@60Hz) |
| Audio |
1 × 3.5mm Audio jack (Supports MIC recording, American standard CTIA) |
| OS |
Linux |
| Weight |
Net weight: 0.79kg
Total package weight: 1.15kg
|
| Environment |
Operating Temperature: -20℃～60℃
Storage Temperature: -20℃～70℃
Operating Humidity: 10%～90%RH (No condensation)
|
| Network |
Ethernet: 2 × RJ45 (1000Mbps)
WiFi: Extend WiFi/Bluetooth module through M.2 E-KEY (2230), supporting
2.4GHz/5GHz dual-band WiFi 6 (802.11a/b/g/n/ac/ax) and Bluetooth 5.24G:
Extend 4G LTE via Mini PCIe (shared with 5G)5G: Extend 5G via M.2 B-KEY (shared with 4G, not mounted by default)
|
| Other |
1 × SIM Card1 × Phoenix connector (8Pin-3.5mm): 1 × RS485, 1 × RS232, 1 × CAN 2.0 |
