Imagine a tiny computer that can run AI models, stream 4K video, and stay silent in any environment. The Firefly EC-OrinNano Jetson Orin Nano Edge AI Fanless PC, 8GB/128GB SSD with WiFi is that device. It is built for developers, makers, and small businesses who need powerful edge AI without the noise and heat of a fan. If you have struggled with bulky servers or slow Raspberry-Pi-style boards, this compact PC solves the problem.

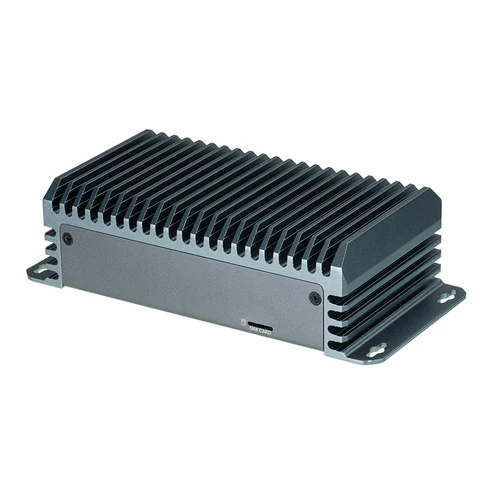

Firefly EC-OrinNano Jetson Orin Nano Edge AI Fanless PC, 8GB/128GB SSD with WiFi
Many edge projects fail because the hardware cannot keep up with modern AI workloads. When the processor stalls, projects become costly and deadlines slip. Firefly removes that barrier by delivering 67 TOPS of AI performance in a fanless, rugged case. The device runs Ubuntu 22.04 with CUDA, TensorRT and all major deep-learning frameworks, so you can deploy vision, language, or robotics models instantly.
Key Features
- Hexa-core ARM Cortex-A78AE CPU up to 1.7 GHz.
- 1024-core NVIDIA Ampere GPU with 32 Tensor Cores.
- 67 TOPS AI performance for deep-learning inference.
- 1 M.2 PCIe NVMe slot, supports 2242/2260/2280 SSDs.
- 8 GB RAM, 128 GB SSD pre-installed.
- HDMI 2.0 output, 4K@60 fps video.
- WiFi 6 / Bluetooth 5.2 module, expandable via M.2.
- Gigabit Ethernet RJ45 port.
- USB-C debug port, 3.5 mm audio jack with mic support.
- Industrial temperature range -20 to 60 , humidity 10-90 %RH.
- RS485, RS232, CAN 2.0 connectors for sensor integration.
- Supports ROS, LLaMA2, Stable Diffusion, TensorFlow, PyTorch, Docker, and more.
Specifications
| AI Performance |
67 TOPS |
| CPU |
Hexa-core 64-bit ARM Cortex-A78AE v8.2 processor, up to 1.7GHz |
| GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| Storage |
1 × M.2 (internal device, PCIe NVMe SSD expansion available, supporting 2242/2260/2280) |
| Power |
DC 12V (5.5mm × 2.1mm, 9-24V wide input voltage) |
| Display |
1 × HDMI 2.0 (4K@60fps) |
| Audio |
1 × 3.5mm audio jack, supporting MIC recording, CTIA standard |
| OS |
Based on Ubuntu 22.04, Jetson system provides a comprehensive desktop Linux environment with accelerated graphics,
supporting NVIDIA CUDA 11.4.19, TensorRT 8.5.2, and CuDNN 8.6.0
|
| Software Support |
Robotic Models: ROS models
Large Language Models: Private deployment of Transformer-based large-scale parameter models such as LLaMA2, ChatGLM, and Qwen
Vision Models: ViT, Grounding DINO, SAM
AI Painting: Stable Diffusion V1.5 image generation model
Deep Learning Frameworks: TensorFlow, PyTorch, MXNet, ONNX, PaddlePaddle, Darknet, custom operator development
Traditional Architectures: CNN, RNN, LSTM
Containerization: Docker container management technology for easy image deployment
|
| Dimension |
188mm × 88.44mm × 50.65mm |
| Environment |
Operating Temperature: -20℃～60℃
Operating Humidity: 10%～90%RH (non-condensing)
|
| Network |
Ethernet: 1 × Gigabit Ethernet (RJ45)
WiFi: WiFi 6 / Bluetooth 5.2 modules expandable via M.2 interface
4G: 4G LTE expansion available via Mini PCIe
|
| Other |
1 × Type-C (USB 2.0/DEBUG)
1 × SIM Card
1 × Phoenix connector (2×4Pin, 3.5mm pitch): 1 × RS485, 1 × RS232, 1 × CAN 2.0
|
