Imagine you could test a powerful AI board without waiting weeks for a prototype. The Firefly RK182X, RK3588S 8GB/64GB & RK1820, 3D RAM Stacking Development Kit gives you exactly that - a ready-to-run platform for AI, vision and edge computing. Engineers often struggle with slow hardware cycles and limited memory options, which slows product launches. This kit solves those pain points with a high-performance processor, generous RAM and flexible storage, so you can start coding and validating today.

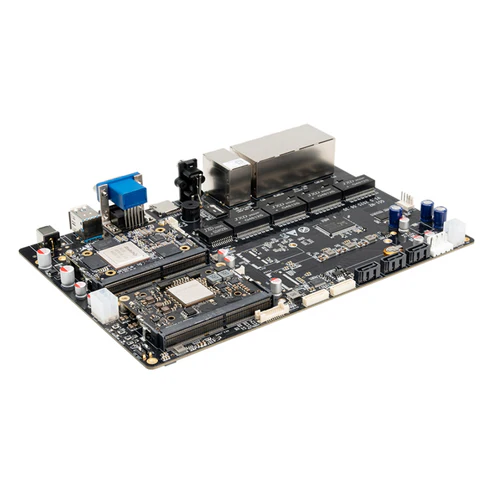

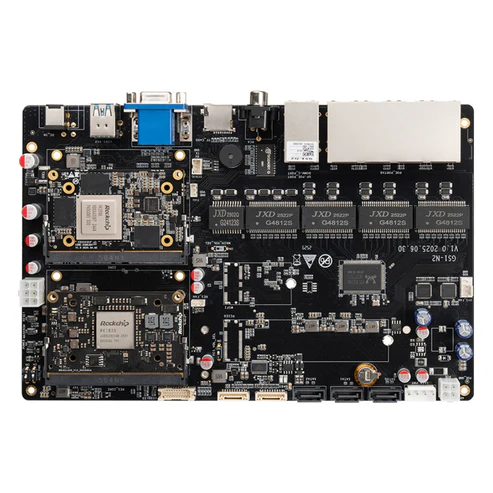

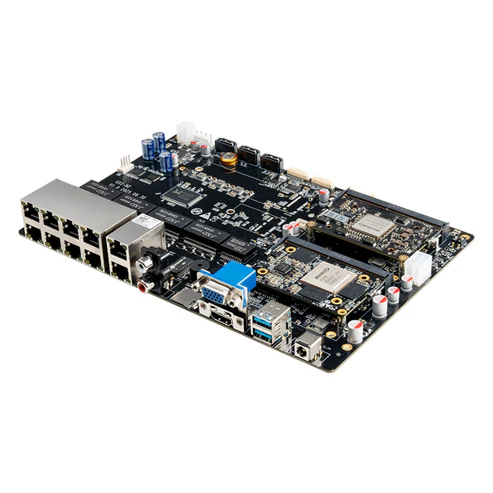

Firefly RK182X, RK3588S 8GB/64GB & RK1820, 3D RAM Stacking Development Kit
Developers need a board that can handle heavy neural-network workloads while staying easy to integrate. Without enough compute power, projects stall and budgets grow. This Firefly kit packs the RK3588S processor, 8 GB of RAM and 64 GB of eMMC, delivering desktop-class speed in a compact form. The built-in 3D RAM stacking adds extra bandwidth for demanding AI models, giving you a clear path from prototype to production without extra hardware purchases.
Key Features
- RK3588S processor with 8 GB DDR4 RAM for high-performance computing.
- 64 GB eMMC storage plus a TF card slot for easy expansion.
- One SATA3.0 port and optional M.2 slots for SSD or Wi-Fi modules.
- Dual video ports: VGA (up to 1080P) and HDMI 2.0.
- Two USB 3.0 Type-A ports and an additional 20-pin USB 3.0 connector.
- Power flexibility: 24 V DC jack, 12 V ATX, and 48 V PoE support.
- Integrated RS485, UART, and additional I/O headers for industrial connections.
- Four fan connectors and a system fan header for active cooling.
- DIP switches for auto power-on and USB host/device mode selection.
Specifications
| Storage Expansion |
1 × TF Card |
| SATA / M.2 |
1 × SATA3.0 (SATA2)One of the following optional interfaces (shared with SATA0):• 1 × SATA3.0 (SATA0, default)
• 1 × M.2 M-Key (PCIe NVMe 2280 SSD, not populated by default)• 1 × M.2 E-Key (Dual-band Wi-Fi module, not populated by default)
|
| Power Supply |
Mainboard:• DC 24V/5A (5.5 × 2.1mm DC jack)• 12V ATX connector
48V ATX Connector: Supports PoE (PSE) output to terminal devices when connected to an external 48V power supply.
Compatible Power Supply: 280W AC PSU (Input: 100–240V AC, 50/60Hz, 6A; Output 1: 12V DC, 5A; Output 2: 52V DC,
4.6A; Hot-swap not supported)
|
| Video Output |
1 × VGA (up to 1080P), 1 × HDMI 2.0 (default 1080P output) |
| Audio |
1 × Audio input, 1 × Audio output |
| Operating System |
Linux |
| Dimensions |
231.27 × 164.13 × 33.57 mm |
| Weight |
Approx. 350g |
| Operating Environment |
Operating temperature: -20°C to 60°CStorage temperature: -20°C to 70°CStorage humidity: 10%–90% RH (non-condensing) |
| USB |
2 × USB 3.0, 1 × USB 3.0 (20-pin 1.25mm wafer connector) |
| Buttons |
1 × Power, 1 × MaskRom, 1 × Reset |
| Other Features |
DIP Switches:• Automatic power-on switch (ON: Auto power-on after power is applied; OFF: Manual power-on using the power button)
• USB mode switch (ON: USB Host; OFF: USB Device)
Additional Interfaces:• 1 × RS485 & IO (10-pin 1.25mm)• 1 × SATA_PWR (4-pin 3.96mm)• 1 × UART (10-pin 1.25mm)
• 2 × FAN (4-pin 1.25mm)• 1 × SYS_FAN (4-pin 2.54mm)• 1 × Debug (3-pin 2mm)• 1 × 12V ATX connector (6-pin 4.2mm)
• 1 × 48V ATX connector (4-pin 4.2mm)
|
