| General |
|
| Display |

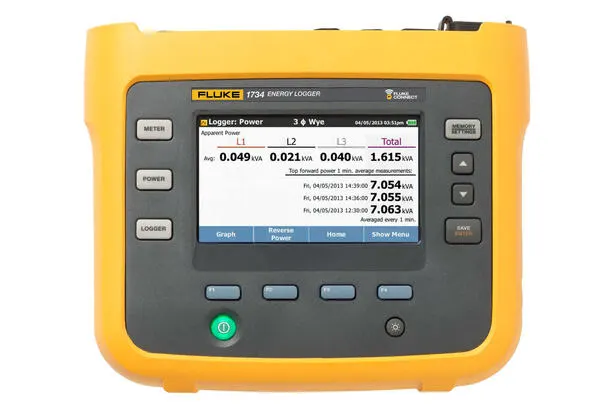

4.3-inch active matrix TFT, 480 × 272 px, resistive touch panel |
| Dimensions (instrument) |
19.8 × 16.7 × 5.5 cm (7.8 × 6.6 × 2.2 in) |
| Dimensions (with PSU attached) |
19.8 × 16.7 × 9.0 cm (7.8 × 6.6 × 3.5 in) |
| Weight (instrument) |
1.1 kg (2.5 lb) |
| Weight (power supply) |
400 g (0.9 lb) |
| Enclosure |
IP50 (EN 60529) |
| Safety rating |
CAT IV 600 V / CAT III 1000 V (IEC 61010-2-031) |
| Pollution degree |
2 |
| EMC |
EN 61326-1 Industrial · CISPR 11 Group 1 Class A · FCC 47 CFR 15 Subpart B |
| Vibration |
MIL-T-28800E Type 3, Class III, Style B |
| Warranty (instrument) |
2 years (battery not included) |
| Warranty (accessories) |
1 year |
| Calibration cycle |
2 years |
| Tamper protection |
Kensington lock slot |
| WiFi / Bluetooth |
Not included on 1732/B (optional upgrade) |
| Power supply |
|
| Voltage range (measurement circuit) |
100–500 V (safety plug input) |
| Voltage range (power cord) |
100–240 V AC (IEC 60320 C7) |
| Maximum power consumption |
50 VA (max. 15 VA via IEC 60320 input) |
| Efficiency |
≥68.2% |
| No-load power consumption |
<0.3 W |
| Mains frequency |
50/60 Hz ±15% |
| Battery |
Li-ion 3.7 V, 9.25 Wh, customer-replaceable |
| Battery runtime |
4 hours (standard), up to 5.5 hours (power saving) |
| Charging time |
<6 hours |
| Voltage inputs |
|
| Number of inputs |
4 (3 phases + neutral) |
| Maximum input voltage |
1000 V rms, CF 1.7 |
| Input impedance |
10 MΩ |
| Bandwidth (-3 dB) |
42.5 Hz to 3.5 kHz |
| Scaling |
1:1 and variable (potential transformers) |
| Current inputs |
|
| Number of inputs |
3 (auto-selected for attached sensor) |
| iFlex 1500 A probe |
1–150 A / 10–1500 A |
| iFlex 3000 A probe |
3–300 A / 30–3000 A |
| iFlex 6000 A probe |
6–600 A / 60–6000 A |
| i40s-EL clamp |
40 mA–4 A / 0.4–40 A |
| Clamp input voltage |
500 mV rms / 50 mV rms, CF 2.8 |
| Rogowski input voltage |
150/15 mV rms @ 50 Hz · 180/18 mV rms @ 60 Hz, CF 4 |
| Bandwidth (-3 dB) |
42.5 Hz to 3.5 kHz |
| Scaling |
1:1 and variable |
| Auxiliary inputs |
|
| Number of inputs |
2 |
| Input range |
0 to ±10 V DC |
| Sampling rate |
1 reading/s |
| Scale factor |
mx + b (user configurable gain and offset) |
| Displayed units |
User configurable (7 characters) |
| Data acquisition |
|
| Resolution |
16-bit synchronous sampling |
| Sampling frequency |
10.24 kHz at 50/60 Hz |
| Input signal frequency |
50/60 Hz (42.5–69 Hz) |
| Circuit types |
1-φ, 1-φ IT, Split phase, 3-φ Delta, 3-φ Wye, 3-φ Wye IT, 3-φ Wye balanced,
3-φ Aron/Blondel, 3-φ Delta open leg, Currents only
|
| Data storage |
Internal flash memory (not user replaceable) |
| Memory capacity |
Typical 10 logging sessions of 8 weeks at 1-minute intervals + 500 events |
| Averaging interval |
1 s, 5 s, 10 s, 30 s, 1 min, 5 min, 10 min, 15 min, 30 min |
| Standards compliance |
IEEE 1459 (Power) |
| Logged parameters |
|
| Parameters |
Voltage, Current, Auxiliary, Frequency, THD V, THD A, Active Power, Reactive Power,
Power Factor, Fundamental Power, DPF, Energy (Wh, varh, VAh)
|
| Demand interval options |
5, 10, 15, 20, 30 min or Off |
| Demand parameters |
Energy (Wh, varh, VAh), PF, Maximum Demand, Cost of Energy |
| Interfaces |
|
| USB-A |
USB flash drive file transfer, firmware updates (max. 120 mA) |
| USB-mini |
Data download to PC |
| WiFi |
Optional (included on 1734 only) |
| Bluetooth |
Optional upgrade for Fluke Connect 3000 series modules |
| Environmental |
|
| Operating temperature |
-10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature |
-20 °C to +60 °C (with battery: -20 °C to +50 °C) |
| Operating humidity |
≤95% RH (10–30 °C), ≤75% RH (30–40 °C), ≤45% RH (40–50 °C) |
| Operating altitude |
2000 m (1000 V CAT II derated to 4000 m) |
| Storage altitude |
12,000 m |
