Tired of slow, unreliable boards that stall your AI projects? The Forlinx FET3572-C Rockchip RK3572 64GB eMMC System on Module (SoM) gives you a compact, high-performance core that fits into any design. It is built for edge AI, industrial vision and smart displays, where you need fast processing, plenty of storage and stable operation. If your current platform cannot handle 4K video or heavy neural networks, you are losing time and money - this SoM solves that problem.

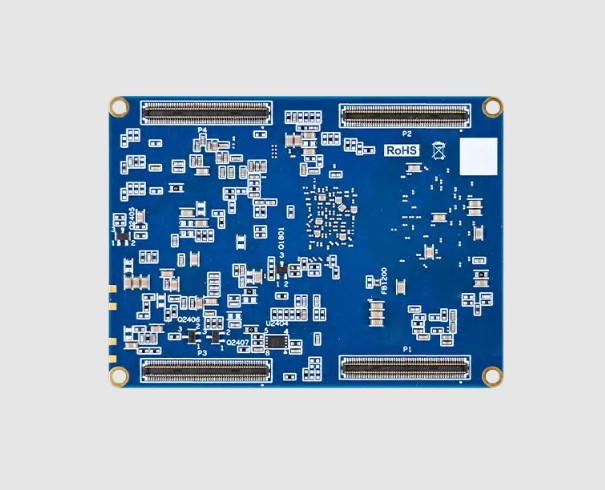

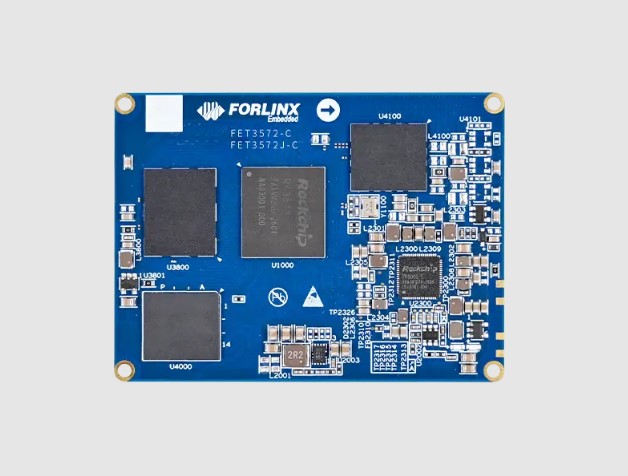

Forlinx FET3572-C Rockchip RK3572 64GB eMMC System on Module (SoM)
Many developers struggle with fragmented components that require separate CPU, GPU and storage boards. The result is a bulky prototype, higher power draw and difficult firmware integration. This matters because every extra millimeter adds cost and every missed frame hurts user experience. The Forlinx module combines a powerful RK3572 processor, 64 GB eMMC, LPDDR5 memory and a rich set of interfaces on a single board, giving you a clean, ready-to-program solution that reduces design time and improves reliability.
Key Features
- Rockchip RK3572 processor with 2 Cortex-A73 + 6 Cortex-A53 cores.
- 4 TOPS INT8 NPU supporting INT4/INT8/INT16/FP4/FP8/FP16/BF16.
- ARM Mali-G310V2 MC1 GPU with OpenGL ES 3.2, OpenCL 3.0 and Vulkan 1.4.
- Video processing unit: H.264/H.265 4K @ 60 fps encode, 8K @ 30 fps decode.
- LPDDR5 memory options: 2 GB, 4 GB or 8 GB.
- 64 GB eMMC storage, ready for OS and application data.
- Operating voltage 5 V - 13 V for flexible power design.
- Board-to-board 4 x 100-pin connector, 0.4 mm pitch.
- Supports Linux 6.12, Debian 13, Android 16 and Forlinx Desktop 24.04.
- USB OTG and TF-card flashing for easy firmware updates.
Specifications
| Processor |
Rockchip RK3572 |
| CPU |
2 × Cortex-A73 + 6 × Cortex-A53 |
| NPU |
4 TOPS INT8, supports INT4/INT8/INT16/FP4/FP8/FP16/BF16 |
| GPU |
ARM Mali-G310V2 MC1, supports OpenGL ES 1.1/2.0/3.2, OpenCL 3.0, Vulkan 1.4 |
| Video Processing (VPU) |
H.264/H.265 4K@60fps hardware encoding; H.264/H.265/VP9/AV1/AVS2 hardware decoding up to 8K@30fps or 4K@120fps |
| Memory |
2GB / 4GB / 8GB LPDDR5 |
| Storage |
64GB eMMC |
| Operating Voltage |
DC 5V–13V |
| Operating Temperature |
FET3572-C: 0°C to +80°C; FET3572J-C: -40°C to +85°C |
| Connection |
Board-to-board connector (4 × 100-pin, 0.4 mm pitch, 1.5 mm combined height) |
| Operating System Support |
Linux 6.12, Forlinx Desktop 24.04 (R&D), Android 16 (R&D), Debian 13 (R&D) |
| Flashing |
USB OTG, TF Card |
