Running a small office or a remote branch often means juggling many devices, cloud apps, and employee laptops. Without a strong firewall, each connection can become a doorway for hackers, malware, or data loss. That risk slows work, hurts reputation, and can cost money. The FortiGate 60F appliance gives you fast, reliable protection and easy network control, so you can keep traffic safe and your business moving.

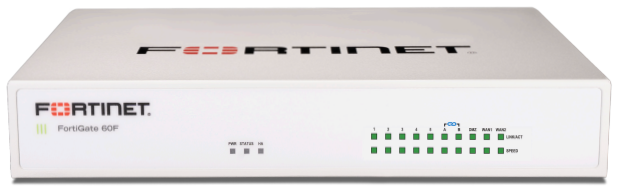

FortiGate 60F, 1.4 Gbps IPS Throughput Next-Gen firewall & SD-WAN appliance with FortiGate
Imagine a single box that blocks threats, speeds up apps, and connects branches without a complex setup. That is exactly what this FortiGate device does. It is a next-generation firewall with built-in SD-WAN, delivering up to 1.4 Gbps of IPS throughput and 1 Gbps of NGFW performance. If you are worried about ransomware, slow VPNs, or unmanaged traffic, this appliance solves those issues in one compact desktop unit. The device also supports high availability, so if one unit fails the other takes over without interrupting traffic. Management is done through an intuitive web UI, making policy changes quick even for non-technical staff.
Key Features
- 10 GE RJ45 ports (7 internal, 2 WAN, 1 DMZ).
- 1.4 Gbps IPS throughput for deep packet inspection.
- 1 Gbps NGFW throughput for robust firewall performance.
- 700 Mbps threat-protection throughput with low latency.
- Supports up to 700 000 concurrent TCP sessions.
- IPsec VPN up to 6.5 Gbps and SSL-VPN up to 900 Mbps.
- Active-Active and Active-Passive high-availability clustering.
- Fanless design for silent operation in any office.
- Desktop form factor, 2.23 lb weight, easy to mount.
- Compliant with FCC, CE, UL and other global certifications.
Specifications
|
Description
|
10x GE RJ45 ports (including 7x Internal ports, 2x WAN ports, 1x DMZ port) |
|
Hardware Specifications
|
|
|
GE RJ45 WAN / DMZ Ports
|
2 / 1
|
|
GE RJ45 Internal Ports
|
5
|
|
GE RJ45 FortiLink Ports (Default)
|
2
|
|
USB Ports
|
1
|
|
Console (RJ45)
|
1
|
|
System Performance — Enterprise Traffic Mix
|
|
|
IPS Throughput
|
1.4 Gbps
|
|
NGFW Throughput 2,
|
1 Gbps
|
|
Threat Protection Throughput
|
700 Mbps
|
|
System Performance
|
|
|
Firewall Throughput (1518 / 512 / 64 byte UDP packets)
|
10/10/6 Gbps
|
|
Firewall Latency (64 byte UDP packets)
|
3.3 μs
|
|
Firewall Throughput (Packets Per Second)
|
9 Mpps
|
|
Concurrent Sessions (TCP)
|
700 000
|
|
New Sessions/Second (TCP)
|
35 000
|
|
Firewall Policies
|
2000
|
|
IPsec VPN Throughput (512 byte)
|
6.5 Gbps
|
|
Gateway-to-Gateway IPsec VPN Tunnels
|
200
|
|
Client-to-Gateway IPsec VPN Tunnels
|
500
|
|
SSL-VPN Throughput6
|
900 Mbps
|
|
Concurrent SSL-VPN Users6 (Recommended Maximum, Tunnel Mode)
|
200
|
|
SSL Inspection Throughput (IPS, avg. HTTPS)3
|
630 Mbps
|
|
SSL Inspection CPS (IPS, avg. HTTPS)
|
400
|
|
SSL Inspection Concurrent Session (IPS, avg. HTTPS)
|
55 000
|
|
Application Control Throughput (HTTP 64K)
|
1.8 Gbps
|
|
CAPWAP Throughput (HTTP 64K)
|
8 Gbps
|
|
Virtual Domains (Default / Maximum)
|
10 / 10
|
|
Maximum Number of FortiSwitches Supported
|
24
|
|
Maximum Number of FortiAPs (Total / Tunnel Mode)
|
64 / 32
|
|
Maximum Number of FortiTokens
|
500
|
|
High Availability Configurations
|
Active-Active, Active-Passive, Clustering
|
|
Dimensions
|
|
|
Height x Width x Length (inches)
|
1.5 x 8.5 x 6.3
|
|
Height x Width x Length (mm)
|
38.5 x 216 x 160 mm
|
|
Weight
|
2.23 lbs (1.01 kg)
|
|
Form Factor
|
Desktop
|
|
Operating Environment and Certifications
|
|
|
Power Rating
|
12Vdc, 3A
|
|
Power Required
|
Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
|
|
Maximum Current
|
100Vac/1.0A,
|
|
Power Consumption (Average / Maximum)
|
10.17 W / 12.43 W
|
|
Heat Dissipation
|
42.4 BTU/hr 42.4 BTU/hr
|
|
Operating Temperature
|
32°F to 104°F (0°C to 40°C)
|
|
Storage Temperature
|
-31°F to 158°F (-35°C to 70°C)
|
|
Humidity
|
10% to 90% non-condensing
|
|
Noise Level
|
Fanless 0 dBA
|
|
Operating Altitude
|
Up to 7400 ft (2250 m)
|
|
Compliance
|
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
|
|
Certifications
|
USGv6/IPv6
|
