Product Code: MNHO-379
MPN #: FG-90G

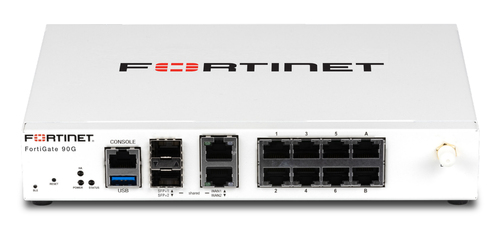

Imagine a network that never slows down, never lets a threat slip through, and keeps your business running smoothly even during a cyber attack. That is what the Fortinet FortiGate 90G delivers. It is a high-performance next-generation firewall designed to protect midsize and large enterprises. If you are tired of frequent outages, slow VPN connections, or worrying about ransomware, this device gives you the speed and security you need to stay productive.
Businesses that handle a lot of traffic often face two problems: performance bottlenecks and weak security layers. When a firewall cannot keep up, users experience lag, and attackers find openings. This matters because lost productivity and data breaches cost money and reputation. The FortiGate 90G solves both issues with 27.9 Gbit/s firewall throughput, AI-driven threat detection, and built-in SD-WAN. You get fast, reliable connections and a strong shield that blocks malware, ransomware, and unauthorized access before they reach your network.
| Model | 90G |
| Product Line | Fortinet FortiGate |
| Packaged Quantity | 1 |
| Miscellaneous | |
| Encryption Algorithm | TLS 1.3 |
| Color Category | White |
| Compliant Standards | FCC, ICES, RCM, VCCI, BSMI, UL, cUL, CB, USGv6 |
| Networking | |
| Remote Management Protocol | HTTPS |
| Capacity | Concurrent TCP sessions: 1500000, New TCP sessions per second: 124000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Client to gateway IPSec VPN tunnels: 2500, Concurrent SSL VPN users: 200, SSL inspection CPS: 1400, SSL inspection concurrent sessions: 300000, Virtual domains: 10, Maximum virtual domains: 10, Number of FortiSwitches: 24, Number of FortiAP devices: 96, Number of FortiAP devices (tunnel): 48, Maximum number of FortiTokens: 500 |
| Status Indicators | HA, power, status, Bluetooth Low Energy (BLE), reset |
| Network | IPv6 |
| Transport Protocol | DNS, IPv6, IPSec, TCP/IP, UDP/IP, HTTP, HTTPs |
| Data Link Protocol | 2.5 Gigabit Ethernet |
| Type | Security appliance |
| Form Factor | Desktop |
| Connectivity Technology | Wired |
| Features | SD-WAN support, NGFW appliance, Zero Trust Network Access (ZTNA), Trusted Platform Module (TPM), AI powered, Bluetooth Low Energy (BLE), CAPWAP support, High Availability, VPN support |
| Performance | IPS throughput (enterprise traffic mix): 4.5 Gbps, NGFW throughput (enterprise traffic mix): 2.5 Gbps, Threat protection throughput (enterprise traffic mix): 2.2 Gbps, Firewall throughput (1518-byte UDP): 28 Gbps, Firewall throughput (512-byte UDP): 28 Gbps, Firewall throughput (64-byte UDP): 27.9 Gbps, Firewall latency (64-byte UDP): 3.23 µs, Firewall throughput: 41.85 Mpps, VPN throughput (512-bit IPSec): 25 Gbps, VPN throughput (SSL): 1.4 Gbps, SSL inspection throughput: 2.6 Gbps, Application control (HTTP 64K): 6.7 Gbps, CAPWAP Throughput (HTTP 64K): 23.6 Gbps |
| Encryption Algorithm | SSL, TLS 1.3, 256-bit AES, 256-bit SHA |
| Dimensions & Weight | |
| Height | 0.9in |
| Width | 8.5in |
| Depth | 7in |
| Weight | 2.47lbs |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| General | |
| Depth | 7 in |
| Width | 8.5 in |
| Weight | 2.47 lbs |
| Device Type | Security appliance |
| Height | 0.9 in |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T - RJ-45, 2 x 2.5/5/10 Gigabit Ethernet - RJ-45 (WAN), 2 x 1 Gigabit Ethernet/10Gb Ethernet - SFP/SFP+ (WAN), 1 x console - RJ-45, 1 x USB - Type A |
| Power | |
| Power Device | External power adapter |
| Product Overview | |
| Firewall throughput | 27.9 Gbit/s |
| Firewall throughput | 41.85 Mpps |
| Firewall (UDP 1518) throughput | 28 Gbit/s |
| Heat dissipation | 70.03 BTU/h |
| Concurrent users | 200 user(s) |
| Noise level | 21.73 dB |
| Number of users | 200 user(s) |
| Firewall security | 64 byte, UDP |
| VPN support | IPsec, SSL |
| Management platform | FortiOS |
