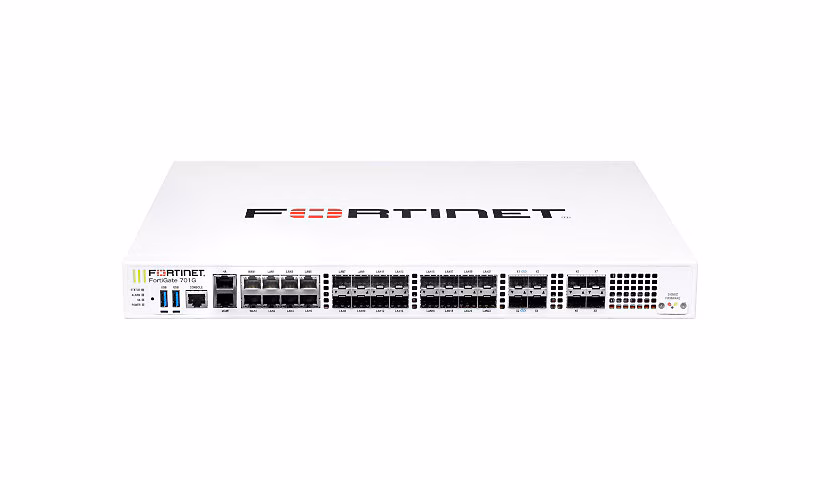

Fortinet FortiGate FG-701G 38Gbps IPS Throughput 1U Rackmount Security Appliance
Fortinet FortiGate FG-701G 38Gbps IPS Throughput 1U Rackmount Security Appliance

Fortinet FortiGate FG-701G 38Gbps IPS Throughput 1U Rackmount Security Appliance

UK Free Shipping UK Free Shipping over £249


Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: MNHO-279

MPN #: FG-701G

Tired of network slowdowns and security breaches that cost you time and money? The Fortinet FortiGate FG-701G 38Gbps IPS Throughput 1U Rackmount Security Appliance is built to protect a busy enterprise while keeping traffic fast. It sits in a standard 1U rack and acts as a firewall, intrusion-prevention system, and VPN hub all in one. If your business struggles with growing bandwidth demands and advanced threats, this device gives you the power and control you need.



Fortinet FortiGate FG-701G 38Gbps IPS Throughput 1U Rackmount Security Appliance

Many midsize and large companies cannot keep up with the speed of modern applications and the sophistication of cyber attacks. When a firewall cannot inspect traffic fast enough, users experience lag and attackers find gaps. The FG-701G solves this problem by delivering 38 Gbps of IPS throughput and 29 Gbps of NGFW performance on a single 1U chassis. Its hardware-accelerated ports and dual power supplies keep the network running smoothly even during peak loads.





Key Features
    • 38 Gbps IPS throughput for real-time threat detection.
    • 29 Gbps NGFW throughput with low latency
    • 55 Gbps IPsec VPN throughput for secure site-to-site links.
    • 8 Gbps SSL-VPN throughput supporting up to 10,000 users.
    • Four 25 GE SFP28 slots and four 10 GE SFP+ slots for flexible uplinks.
    • Eight 5 GE RJ45 ports and sixteen 1 GE SFP ports for diverse connections.
    • Dual AC power supplies for redundant power.
    • 2 x 480 GB SSD storage for logs and policies.
    • Support for up to 50 virtual domains and 96 FortiSwitches.
    • Active-Active and Active-Passive HA clustering for resilience.



Specifications
Interfaces and Modules
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ Slots 4
Hardware Accelerated 10 GE SFP+ / GE SFP Slots 4
Hardware Accelerated GE SFP Slots 16
Hardware Accelerated GE RJ45 Slots 8
2.5 GE / GE HA Port 1
GE Management Port 1
USB Ports (Client / Server) 2
Console Port 1
Included Transceivers 2 x SFP SX
Onboard Storage 2 x 480 GB
System Performance — Enterprise Traffic Mix
IPS Throughput 38 Gbps
NGFW Throughput  29 Gbps
Threat Protection Throughput  26 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 164 / 163 / 145 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) 164 / 163 / 145 Gbps
Firewall Latency (64 byte, UDP) 3.87 μs
Firewall Throughput (Packet per Second) 217.5 Mpps
Concurrent Sessions (TCP) 28 Million
New Sessions/Second (TCP) 700000
Firewall Policies 30000
IPsec VPN Throughput (512 byte) 55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2000
Client-to-Gateway IPsec VPN Tunnels 50000
SSL-VPN Throughput 8 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 10000
SSL Inspection Throughput (IPS, avg HTTPS) 14 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 13000
SSL Inspection Concurrent Session (IPS, avg HTTPS) 1.6 Million
Application Control Throughput (HTTP 64K) 50 Gbps
CAPWAP Throughput (HTTP 64K) 133 Gbps
Virtual Domains (Default / Maximum) 10 / 50
Maximum Number of FortiSwitches Supported 96
Maximum Number of FortiAPs (Total / Tunnel) 1024 / 512
Maximum Number of FortiTokens 5000
FG-700G
High Availability Configurations Active-Active, Active-Passive, Clustering
Interface Provided

4 x 25G SFP28 slots, 4 x 10GE SFP+ slots, 16 X 1G SFP slots, 8 x 5G

BASE-T RJ45 ports, 2 x RJ45 ports (Incl. HA 2.5G and MGMT 1G), SPU

 NP7 and CP10 hardware accelerated, 960GB onboard SSD storage,

 dual AC power supplies.

Dimensions and Power
Height x Width x Length (mm) 44.45 x 432 x 342
Weight 7.72 lbs (3.5 kg)
Form Factor (supports EIA/non-EIA standards) Rack Mount, 1RU
AC Power Supply 100–240VAC, 50/60 Hz
AC Current (Maximum) 6A@100VAC
Power Consumption (Average / Maximum) 240 W / 295 W
Heat Dissipation 1006 BTU/h
Operating Environment and Certifications
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity 10% to 90% non-condensing
Noise Level 59 dBA
Forced Airflow Side and Front to Back
Operating Altitude Up to 10000 ft (3048 m)
Compliance FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications USGv6/IPv6
