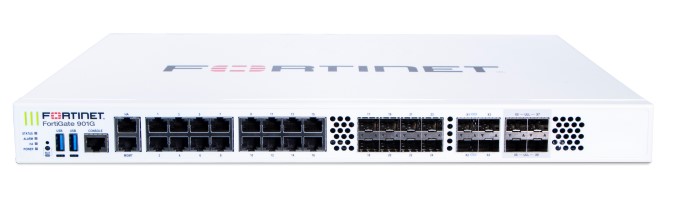

Fortinet Fortigate FG-900G, Enterprise Next-Gen Firewall Appliance
Fortinet Fortigate FG-900G, Enterprise Next-Gen Firewall Appliance
Fortinet Fortigate FG-900G, Enterprise Next-Gen Firewall Appliance

Fortinet Fortigate FG-900G, Enterprise Next-Gen Firewall Appliance


Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: MNHO-372

MPN #: FG-900G

Businesses that handle a lot of data often worry about slow networks, security breaches, and downtime. When a firewall cannot keep up, users experience lag, and attackers find weak spots. This can cost money, damage reputation, and waste time. The Fortinet Fortigate FG-900G, Enterprise Next-Gen Firewall Appliance gives you fast, reliable protection that scales with your traffic, so you stay secure and productive.



Fortinet Fortigate FG-900G, Enterprise Next-Gen Firewall Appliance with Fortinet

Imagine a single device that blocks threats, speeds up traffic, and lets you manage everything from one console. The FG-900G is a high-performance firewall built for midsize to large enterprises. It stops malware, controls applications, and supports thousands of VPN users without slowing your network. If you need a strong defense that does not become a bottleneck, this appliance is the answer.



Key Features
    • 4 x 25 GbE SFP28 and 4 x 10 GbE SFP+ ultra-low latency slots
    • 16 GE RJ45 switch ports plus 8 GE SFP slots
    • 42 Gbps IPS throughput and 30 Gbps threat-protection throughput
    • 55 Gbps IPsec VPN throughput with up to 2,000 gateway tunnels
    • 10 Gbps SSL-VPN throughput supporting 10,000 concurrent users
    • Active-Active and Active-Passive HA clustering for zero downtime
    • Built-in TPM and BLE support for secure authentication
    • 80 Plus-compliant dual hot-swappable power supplies
    • Rack-mount 1RU form factor, 15.98 lb weight, fits standard data-center racks
    • Supports up to 5,000 FortiTokens for two-factor authentication



Specifications
Model FG-900G

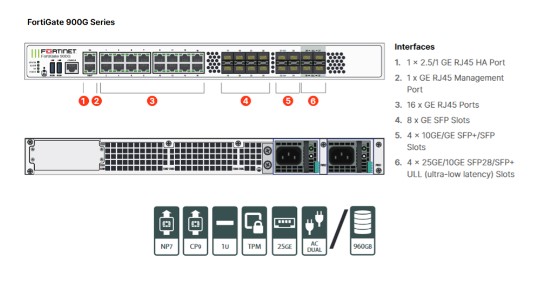

Description 4x 25G SFP28 slots, 4x 10GE SFP+ slots, 17x GE RJ45 ports (including 1x MGMT port,
16x switch ports), 1x 2.5G HA port, 8x GE SFP slots, SPU NP7 and CP9 hardware accelerated,
dual AC PSU.
Interfaces and Modules
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ Ultra Low Latency Slots 4
Hardware Accelerated 10 GE SFP+ / GE SFP Slots 4
Hardware Accelerated GE SFP Slots 8
Hardware Accelerated GE RJ45 Slots 16
2.5 GE / GE HA Port 1
GE Management Port 1
USB Ports (Client / Server) 2-Feb
Console Port 1
Onboard Storage No
Trusted Platform Module (TPM) Supported
Bluetooth Low Energy (BLE) Supported
Included Transceivers 2x SFP SX
System Performance — Enterprise Traffic Mix
IPS Throughput² 42 Gbps
NGFW Throughput²˒⁴ 31 Gbps
Threat Protection Throughput²˒⁵ 30 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 164 / 163 / 153 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) 164 / 163 / 153 Gbps
Firewall Latency (64 byte, UDP) 3.78 / 2.5 μs*
Firewall Throughput (Packet per Second) 229.5 Mpps
Concurrent Sessions (TCP) 28 Million
New Sessions/Second (TCP) 720,000
Firewall Policies 50,000
IPsec VPN Throughput (512 byte)¹ 55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2,000
Client-to-Gateway IPsec VPN Tunnels 50,000
SSL-VPN Throughput 10 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 10,000
SSL Inspection Throughput (IPS, avg HTTPS)³ 16.7 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)³ 18,000
SSL Inspection Concurrent Session (IPS, avg HTTPS)³ 1.6 Million
Application Control Throughput (HTTP 64K)² 74.8 Gbps
CAPWAP Throughput (HTTP 64K) 133 Gbps
Virtual Domains (Default / Maximum) Oct-50
Maximum Number of FortiSwitches Supported 196**
Maximum Number of FortiAPs (Total / Tunnel) 2048 / 1024
Maximum Number of FortiTokens 5,000
High Availability Configurations Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches) 1.5 x 17.0 x 15.0
Height x Width x Length (mm) 44.45 x 432 x 380
Weight 15.98 lbs (7.25 kg)
Form Factor (supports EIA/non-EIA standards) Rack Mount, 1RU
AC Power Supply 100–240VAC, 50/60 Hz
AC Current (Maximum) 6A @ 100VAC
DC Power Supply 48–60VDC
DC Current (Maximum) 7A @ 48V
Power Consumption (Average / Maximum) 170 W / 313 W /
Heat Dissipation 1069 BTU/h
Power Supply Efficiency Rating 80Plus Compliant
Redundant Power Supplies (Hot Swappable) Supported (comes with 2 PSU default)
Operating Environment and Certifications
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity 10% to 90% non-condensing
Noise Level 58 dBA
Forced Airflow Side and Front to Back
Operating Altitude Up to 10,000 ft (3048 m)
Compliance FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications USGv6/IPv6
