Imagine a factory floor where a single network breach can halt production for hours. You need a firewall that works even in dust, cold and heat, and never drops the connection. The Fortinet FortiGate Rugged 70G-5G-Dual, IP40 Security appliance is a hardened next-generation firewall built for harsh industrial sites. It gives you fast, reliable protection and a built-in dual 5G modem so your network stays online when the main line fails.

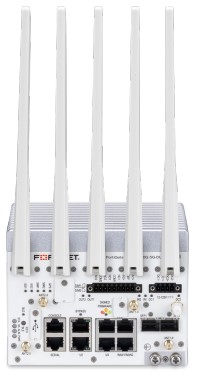

Fortinet FortiGate Rugged 70G-5G-Dual, IP40 Security appliance
Industrial networks often suffer from unreliable WAN links and exposure to extreme temperatures. When the link drops, machines stop, data is lost and revenue falls. This problem matters because every minute of downtime costs money and can damage reputation. The FortiGate Rugged 70G-5G-Dual solves the issue by combining a high-performance NGFW with dual 5G cellular backup, automatic SIM switching and IP40 protection. You get continuous security and connectivity without needing a separate router or backup device.
Key Features
- FortiSP5 processor for high-speed inspection.
- Six RJ45 GE LAN/WAN ports plus two dedicated SFP slots.
- Dual 5G cellular modems with GPS and active/active SIM support.
- Automatic SIM auto-switching with LED status.
- Bluetooth Low Energy for remote monitoring.
- Trusted Platform Module for hardware-based key storage.
- Digital I/O module: 4 inputs, 4 outputs for alarm integration.
- MicroSD slot for local logging and backup.
- Redundant dual DC power inputs (12 V to 125 V).
- DIN-rail mounting for easy installation in control panels.
- IP40 rating protects against dust and accidental water spray.
Specifications
| Product |
FortiGate Rugged 70G-5G-DUAL |
| Product Series |
FortiGate Rugged Series |
| Firewall Type |
Next-Generation Firewall (NGFW) |
| Processor |
FortiSP5 |
| GE LAN/WAN Interfaces |
6 × RJ45 |
| Bypass GE Port Pair |
PORT1-2 RJ45 |
| Dedicated GE SFP Slots |
2 |
| Serial Interface |
1 × RJ45 |
| USB Client/Server |
1 × USB-A 2.0 |
| Console Port |
1 × RJ45 |
| Cellular Modem |
Dual 5G, GPS |
| Number of Modems |
2 |
| 5G |
Supported |
| 4G LTE |
Supported |
| 3G |
Supported |
| 3G/4G/5G Handover |
Supported |
| GPS |
Supported |
| Dual SIM Cards |
Supported |
| SIM Card Auto-Switching |
Supported |
| Dual SIM LED |
Supported |
| eSIM |
Not supported |
| Bluetooth Low Energy (BLE) |
Supported |
| Trusted Platform Module (TPM) |
Supported |
| Digital I/O Module (DIO) |
Supported |
| MicroSD Card Slot |
Supported |
| IPS Throughput |
2.5 Gbps |
| NGFW Throughput |
1.5 Gbps |
| Threat Protection Throughput |
1.3 Gbps |
| IPv4 Firewall Throughput (1518/512/64-byte UDP packets) |
8 / 8 / 8 Gbps |
| Firewall Latency (64-byte, UDP) |
5.82 μs |
| Firewall Throughput (Packets Per Second) |
11.9 Mpps |
| IPsec VPN Throughput (512-byte) |
7.5 Gbps |
| SSL-VPN Throughput |
1.2 Gbps |
| IPSec VPN Tunnels |
200 |
| Concurrent Sessions |
500,000 |
| New Sessions/Second |
25,000 |
| Virtual Domains (VDOMs) |
10 |
| Height × Width × Length |
5.47 × 4.1 × 4.8 in. |
| Height × Width × Length |
139 × 104 × 122 mm |
| Weight |
4.63 lbs (2.1 kg) |
| Form Factor |
DIN-rail |
| IP Rating |
IP40 |
| Antenna Height × Width |
205 mm × 25 mm |
| Power Supply |
12V to 125V DC redundant dual inputs |
| Operating Temperature |
-40°C to 75°C |
| Storage Temperature |
-40°C to 85°C |
| Relative Humidity |
5% to 95% non-condensing |
| Digital I/O |
4 × digital inputs, 4 × digital outputs |
| Mounting |
DIN-rail |
| Industrial Environment |
Designed for mission-critical industrial environments |
| 5G Modem |
FN990A28-HP |
| 5G SIM Configuration |
Dual SIM, active/active |
| Cellular Connectivity |
Additional Internet connection and/or redundant WAN link |
