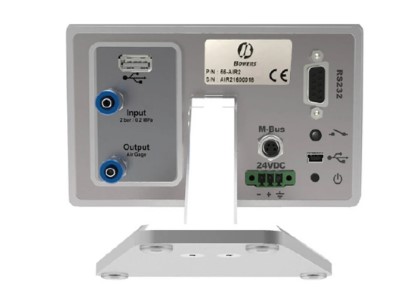

Fowler Bowers Air1 Single Channel Air Gaging Display Unit Industrial Controller

Tired of guessing air pressure and flow values on the shop floor? The Fowler Bowers Air1 Single Channel Air Gaging Display Unit Industrial Controller gives you instant, accurate readings without any moving parts. It is built for factories, workshops, and any place where air-gaging data must be reliable every minute. If you have ever lost time fixing bad measurements, this controller will end that frustration and keep production moving.

Fowler Bowers Air1 Single Channel Air Gaging Display Unit Industrial Controller

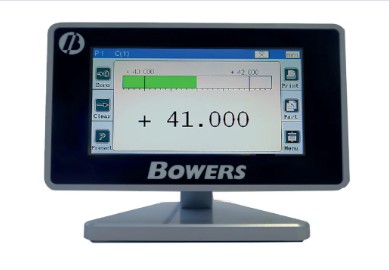

The main problem many operators face is a lack of clear, real-time air-gaging information. Without a visible readout, you cannot tell if a system is over-pressured or under-performing, which can cause waste or equipment damage. This matters because every minute of downtime costs money and quality suffers. The Air1 solves the issue with a bright 4.3-inch touchscreen that shows static and dynamic data, supports two characteristics on one channel, and lets you store results on a USB stick for later analysis.

Key Features

• 1 channel supporting two measurement characteristics.
• 4.3-inch TFT color touchscreen with 480 272 resolution.
• Static and dynamic modes: Max, Min, Max-Min, Avg, Median.
• Resolution down to 0.1 m for fine detail.
• Three-point calibration (min, mid, max).
• Analog or digital display options.
• Units in mm, m, inch, or DMS.
• Up to 16-class grading with color coding.
• RS232 and USB interfaces for easy data transfer.
• USB stick CSV export for record keeping.
• QR code setup for fast configuration.
• Power range 85-265 VAC or USB/24 VDC, plus foot pedal support.

Specifications
