Tired of guessing when a part is out of tolerance? The Fowler D62S Advanced Digital Display Bluetooth 4.3" Touch Industrial Gauge Unit gives you instant, precise measurements so you can stop re-work and scrap. It is a rugged handheld gauge that reads tiny dimensions and sends the data wirelessly to your PC or printer. If you need reliable numbers on the shop floor, this unit is the tool you have been missing.

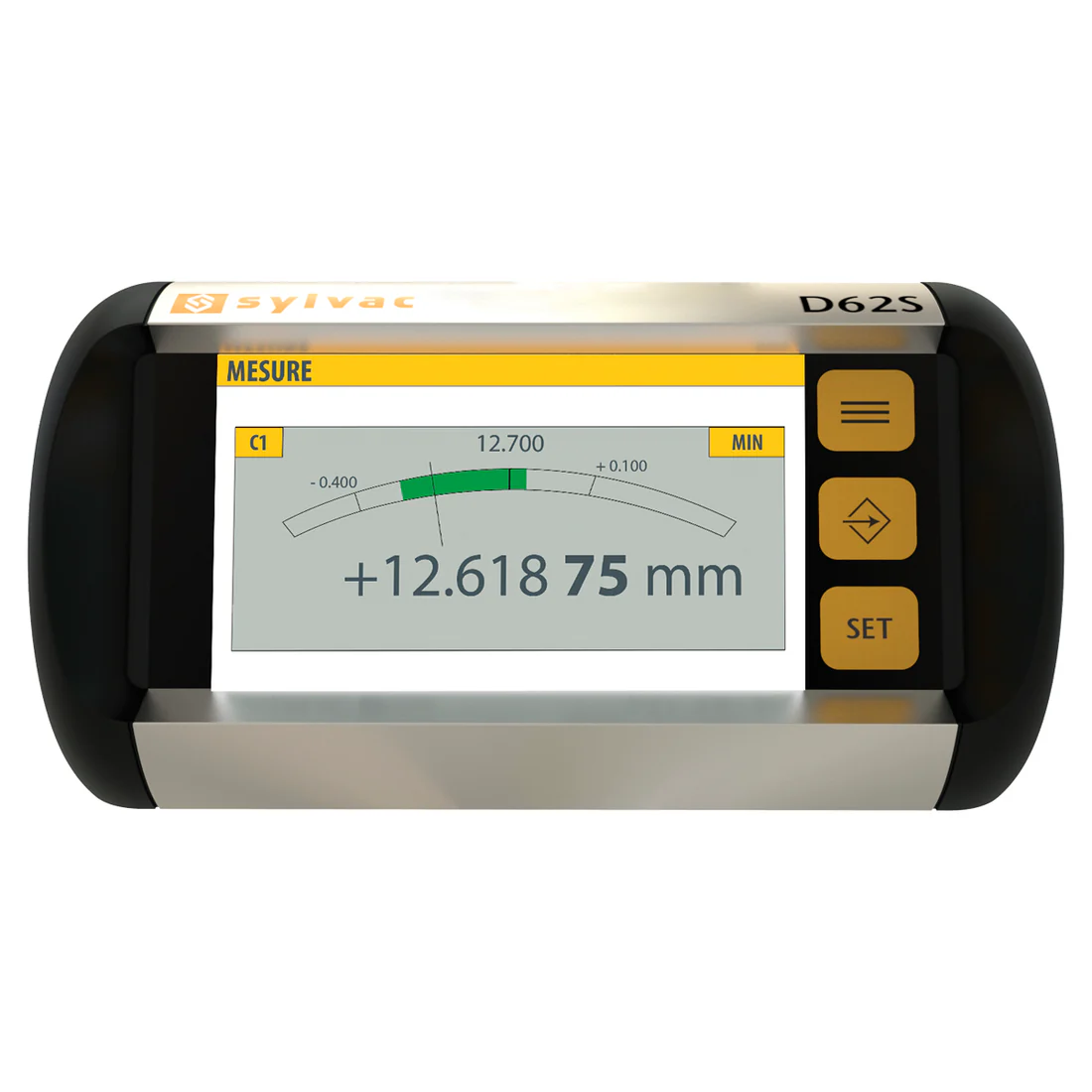

Fowler D62S Advanced Digital Display Bluetooth 4.3" Touch Industrial Gauge Unit
The biggest headache in a production line is not knowing whether a component meets the required tolerance until after it is assembled. Missing that window can cause costly delays, wasted material, and unhappy customers. The D62S solves this by delivering 0.01 m resolution on a bright 4.3 inch touchscreen, and it stores the result directly in the device or streams it via Bluetooth, USB or RS-232. You get a clear readout, a visual tolerance LED, and the ability to log every measurement for quality reports. In short, the gauge removes uncertainty and keeps your process running smoothly.
Key Features
- 4.3 inch color touchscreen for easy navigation.
- Two P12D (M8) probe inputs for flexible measurement setups.
- Resolution down to 0.01 m (0.00001 mm).
- Static and dynamic measurement modes.
- Min / Max / Delta functions with formula capability.
- Bluetooth, USB, and RS232 connectivity.
- SPC, PC, and printer compatible data output.
- Aluminum body with shock-proof rubber housing.
- Optional foot-pedal support for hands-free operation.
Specifications
| General Information |
|
| Model |
D62S Advanced Digital Display |
| SKU |
546181063 |
| Display & Measurement |
|
| Display |
4.3" color touchscreen |
| Probe Inputs |
2 × P12D (M8 connectors) |
| Measurement resolution |
Up to 0.01 µm (0.00001 mm) |
| Measurement functions |
Min / Max / Delta / Formulas |
| Modes |
Static and dynamic measurement |
| Tolerance display |
Global tolerance LED indicators |
| Interfaces & Connectivity |
|
| Connectivity |
Bluetooth®, USB, RS232 |
| Data output |
SPC / PC / printer compatible |
| Foot pedal support |
Yes (optional connection) |
| Power & Battery |
|
| Battery |
Built-in rechargeable (up to 8 hours) |
| Power |
AC adapter / internal battery |
| Construction & Protection |
|
| Material |
Aluminum + shockproof rubber housing |
| Protection rating |
IP54 front panel |
| Software & Programming |
|
| Programming |
PC programmable |
| Environmental Conditions |
|
| Operating temperature |
Not explicitly specified by manufacturer |
| Physical Characteristics |
|
| Dimensions |
167 × 90 × 90 mm |
| Weight |
0.75 kg |
| Special Features |
|
| Special features |
Wireless Bluetooth data transmission |
