Tired of guessing whether your inductive probe readings are accurate? The Fowler D70I Digital Display Unit gives you a clear, real-time view of every measurement, so you can stop re-working parts and start trusting your data.

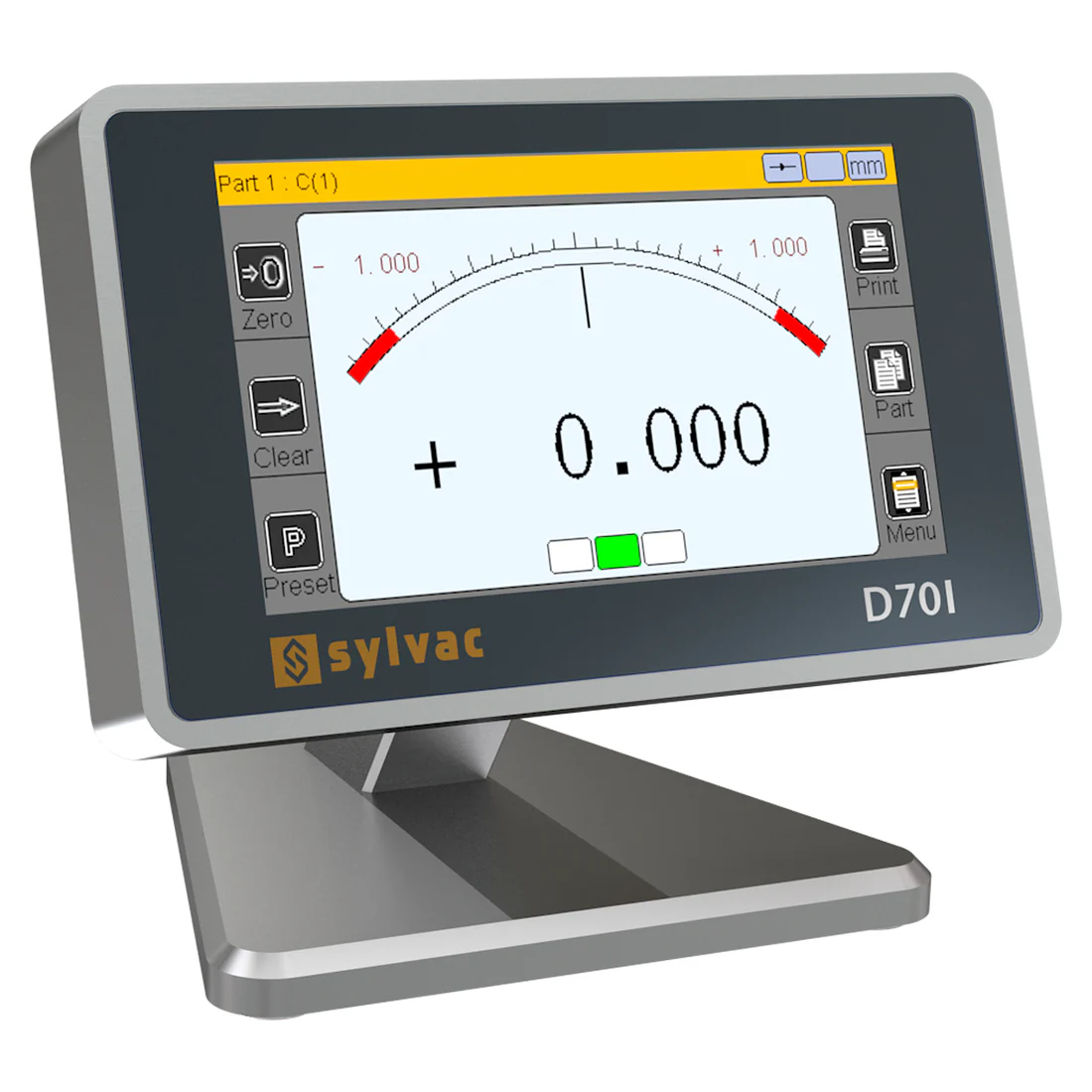

Fowler D70I Digital Display Unit for Inductive Probes Industrial Meter System
In a busy shop floor, a wrong reading can mean wasted material, delayed shipments, and unhappy customers. This problem matters because it directly hits your profit and reputation. The D70I solves it by turning raw probe signals into easy-to-read numbers, graphs, and alerts on a rugged touchscreen, letting you act the moment a value goes out of tolerance.
Key Features
- 4.3 inch colour touchscreen with 480 272 pixel resolution.
- Two probe inputs support Sylvac, Tesa, and Mahr inductive probes.
- Static and dynamic measurement modes (min, max, average, max-min).
- Display options: analog bar, digital readout, or graph view.
- Resolution down to 0.00001 mm for ultra-fine measurements.
- Units selectable in mm, m, or inches.
- Dual sensor comparison and tolerance overlay on screen.
- RS-232, USB, and M-Bus ports for bidirectional communication.
- Excel-compatible data export for SPC analysis.
- Power via USB or 85-265 V AC adapter for flexible installation.
- Industrial sealed front with IP rating for dust and splash protection.
Specifications
| General Information |
|
| Model |
D70I (Fowler / Sylvac compatible) |
| SKU |
ZZ-546182710 |
| Display & Measurement |
|
| Display type |
4.3" colour touchscreen |
| Resolution |
480 × 272 pixels |
| Probe inputs |
2 inputs |
| Supported sensors |
Inductive probes (Sylvac / Tesa / Mahr compatible) |
| Measurement modes |
Static, dynamic (min/max/avg) |
| Display modes |
Analog, digital, bar graph |
| Measurement functions |
Min, Max, Average, Max-Min |
| Resolution (measurement) |
Up to 0.00001 mm (model dependent) |
| Units |
mm, µm, inch |
| Special features |
Dual sensor comparison, tolerance display |
| Interfaces & Communication |
|
| Interface ports |
RS-232, USB, M-Bus |
| Data output |
Excel / SPC compatible |
| Communication |
USB + RS-232 bidirectional |
| Power & Electrical |
|
| Power supply |
USB / 85–265 V AC adapter |
| Environmental Conditions |
|
| Operating temperature |
+15°C to +30°C |
| Humidity |
Max 80% RH |
| Protection |
Industrial sealed front (IP rated in series design) |
| Physical Characteristics |
|
| Dimensions |
140 × 105 × 110 mm |
| Weight |
0.6 kg |
| Housing |
Aluminium robust industrial body |
