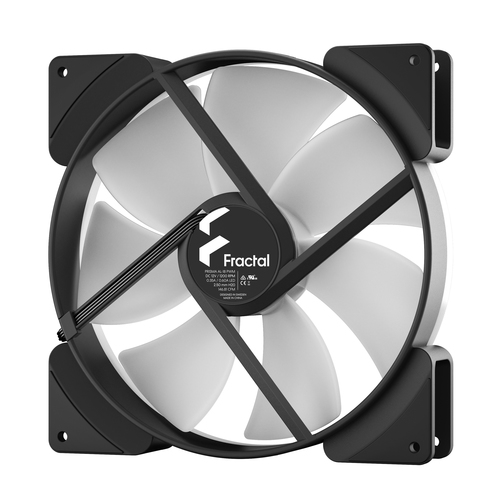

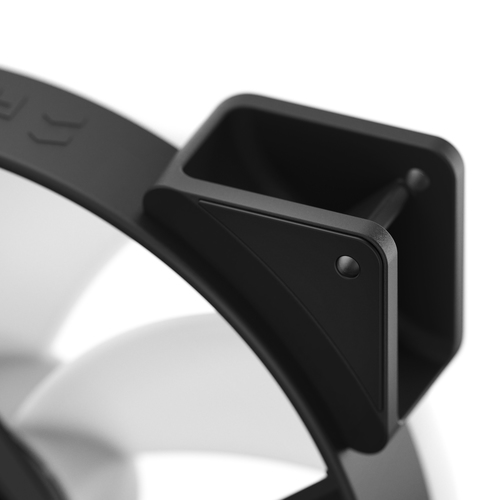

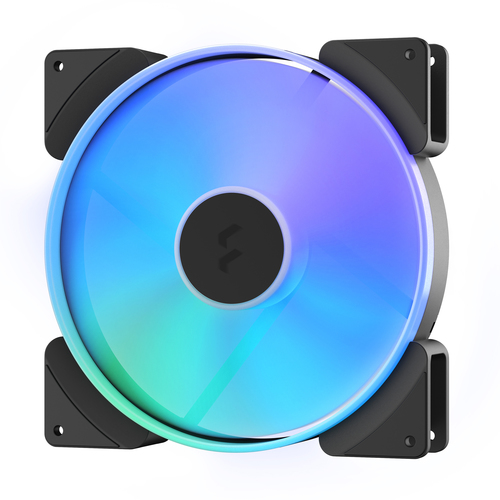

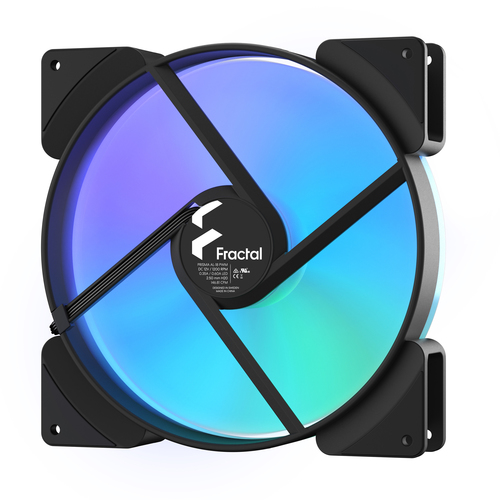

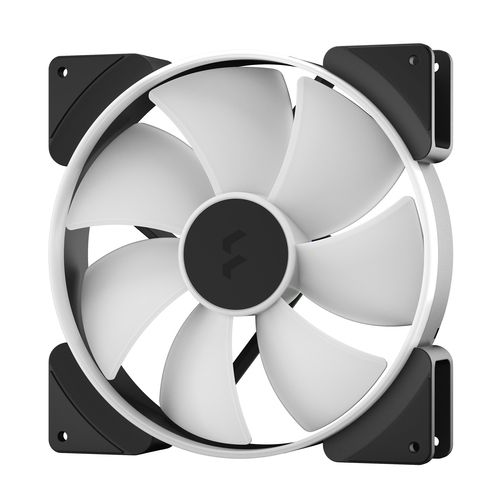

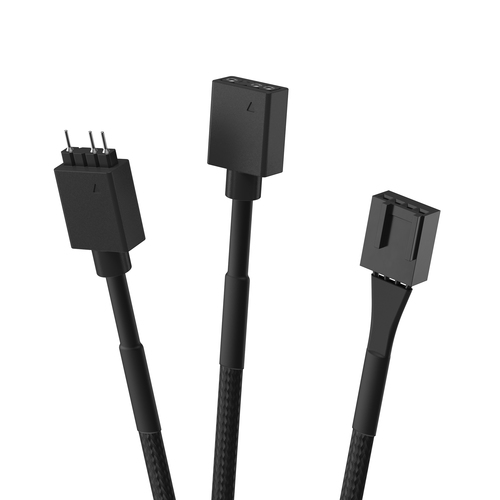

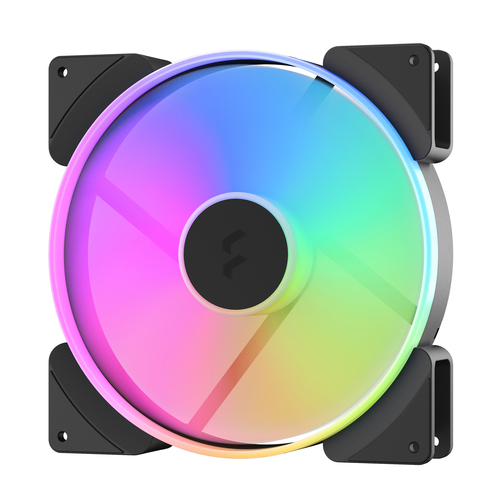

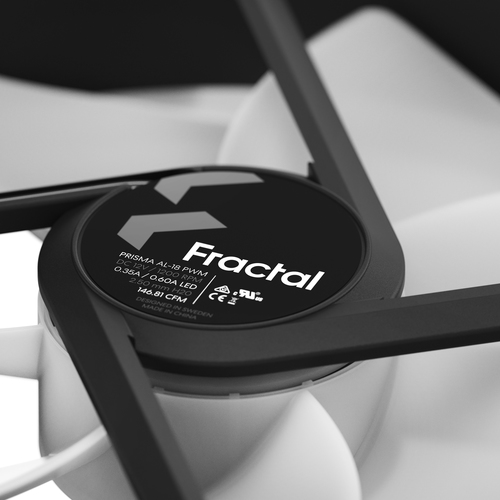

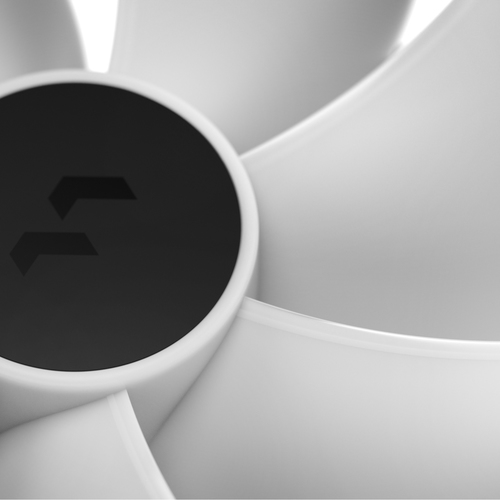

The Prisma AL-18 is a powerful 180 mm ARGB fan that packs a mean punch in the airflow department. Massive blades, stout 38 mm thickness, and wide 300-1200 RPM range with PWM control allow the AL-18 to yield remarkably high airflow while remaining exceptionally quiet. PWM precision - PWM control with a wide 300-1200 RPM speed range ideal for radiators - Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency - Aerodynamic stator struts with embedded wiring reduce noise and turbulence Manually Controllable - Adjust R1 RGB controller (sold separately) enables physical control of colors and effects - Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern - Black sleeved power cables offer an extra touch of style Maximum compatibility Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma High-grade LLS bearing Long-Life Sleeve bearing with 90,000-hour MTTF delivers long-lasting dependability Smooth operation Integrated synthetic rubber corners nullify fan vibrations Chained connections Chain RGB cables to simplify wiring and run multiple fans or additional RGB devices from a single connector
Specifications
| Performance |
| Mean time between failures (MTBF) |
90000 h |
| Quantity per pack |
1 pc(s) |
| Bearing type |
Sleeve bearing |
| Pulse-width modulation (PWM) support |
Y |
| Maximum air pressure |
2.5 mmH2O |
| Minimum air pressure |
0.44 mmH2O |
| Airflow |
249.56 m³/h |
| Maximum airflow |
146.8 cfm |
| Minimum airflow (imperial) |
43.1 cfm |
| Noise level (high speed) |
37.4 dB |
| Noise level (low speed) |
14.9 dB |
| Rotational speed (max) |
1200 RPM |
| Rotational speed (min) |
300 RPM |
| Compatible processor series |
Not supported |
| Supported processor sockets |
Not supported |
| Fan diameter |
18 cm |
| Type |
Fan |
| Suitable location |
Computer case |
| Design |
| Fan connector |
4-pin |
| Illumination colour |
Multi |
| Number of LEDs |
12 |
| Illumination LED |
Y |
| Number of fan blades |
7 |
| Number of fans |
1 fan(s) |
| Product colour |
Black, White |
| Power |
| Maximum current |
0.35 A |
| Rated current |
0.6 A |
| Rated voltage |
5 V |
| Voltage |
6 - 12 V |
| Weight & dimensions |
| Package weight |
570 g |
| Package height |
40 mm |
| Package depth |
182 mm |
| Package width |
227 mm |
| Cable length |
1 m |
| Fan weight |
521 g |
| Fan dimensions (W x D x H) |
180 x 180 x 38 mm |
| Packaging content |
| Number of screws |
12 |
| Screws included |
Y |
| Package type |
Hanging box |
| Other features |
| Airflow |
249.56 m³/h |
| Country of origin |
China |
