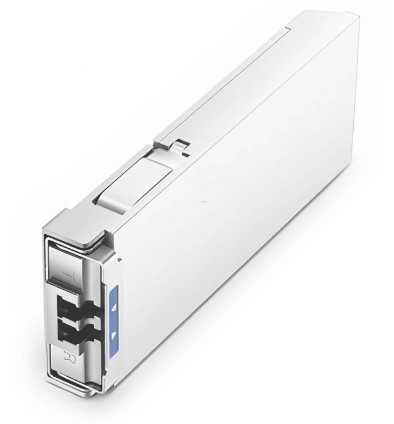

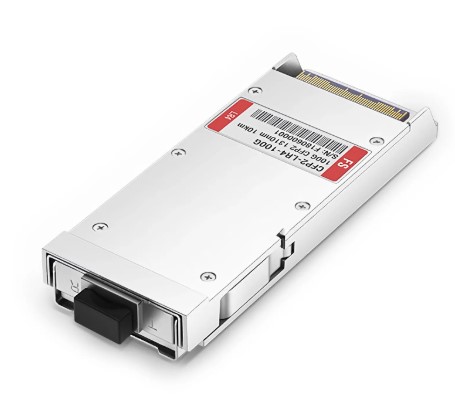

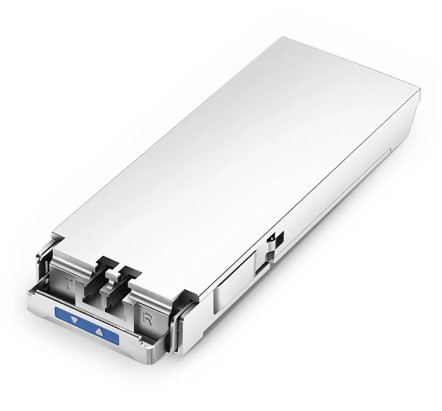

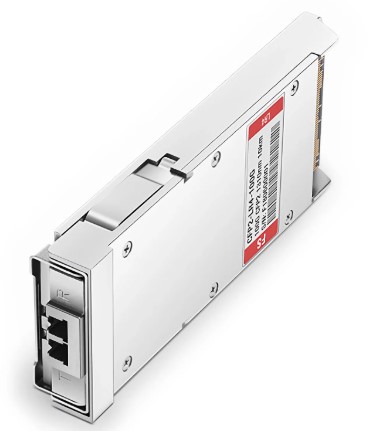

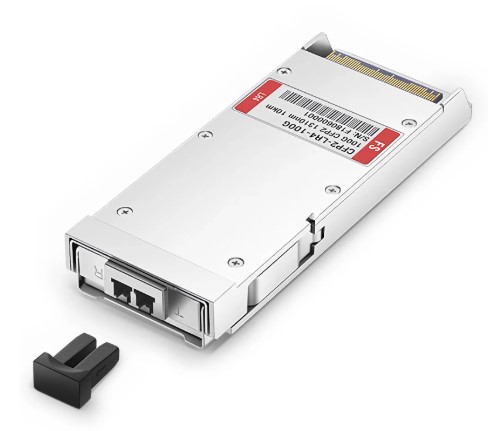

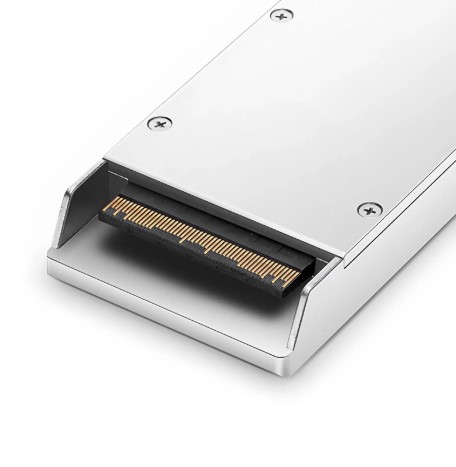

FS 100GBASE-LR4 CFP2 1310nm 10km Duplex LC SMF Transceiver Module

Imagine a network that can move 100 Gbps over ten kilometres without a single glitch. The FS 100GBASE-LR4 CFP2 1310nm 10km Duplex LC SMF Transceiver Module makes that possible. It is a high-speed optical transceiver built for CFP2 slots, designed to carry long-reach 100 Gb Ethernet signals. If you are tired of frequent signal loss on long fiber runs, this module solves the problem by delivering stable, low-error transmission at 1310 nm.

FS 100GBASE-LR4 CFP2 1310nm 10km Duplex LC SMF Transceiver Module

Network engineers often struggle with reaching distant data centers while keeping latency low. The distance limitation can force costly repeaters or lower-speed links. This transceiver removes that barrier. By supporting the CFP2 form factor and IEEE 802.3ba 100GBASE-LR4 standard, it lets you run a single-mode fiber link up to ten kilometres with full 100 Gbps throughput. The result is a clean, reliable connection that saves you money on extra equipment and reduces downtime.

Benefits

• High-speed 100 Gbps transmission keeps your applications fast and responsive.
• 10 km reach eliminates the need for intermediate amplifiers, cutting installation cost.
• Duplex LC connectors make plug-in simple and compatible with existing fiber cabinets.
• Low power consumption (6 W) reduces heat and saves energy bills.
• Built-in DDM/DOM monitoring lets you see temperature and power levels in real time.

Usages

The module fits perfectly in data-center uplinks where you need to connect two halls separated by several kilometres. It is also ideal for campus networks linking buildings with single-mode fiber, for metro-area networks that require long reach without repeaters, and for service providers building 100 Gbps backbone links. Any scenario that demands reliable, high-capacity fiber over distance will benefit from this CFP2 transceiver.

Key Features

• Form factor: CFP2, compatible with standard slots.
• Max data rate: 112 Gbps (4 x 25 G-NRZ).
• Wavelengths: 1295.56 nm, 1300.05 nm, 1304.58 nm, 1309.14 nm.
• Maximum cable distance: 10 km on SMF.
• Connector type: Duplex LC for easy installation.
• Optical components: 4 DFB lasers for stable output.
• TX power: -4.3 ~ 4.5 dBm, RX power: -10.6 ~ 4.5 dBm.
• Extinction ratio greater than 4 dB for clear signal separation.
• Supported protocols: CFP2 MSA, IEEE 802.3ba 100GBASE-LR4.
• DDM/DOM support for real-time diagnostics.
