Tired of slow data links that hold back your network growth? The FS CWDM-SFP10G-1530-10 10G 1530nm 10km SMF SFP+ Transceiver Module gives you a fast, reliable 10G connection over long distances, so you can move large files, run video streams, and keep cloud services smooth without costly upgrades.

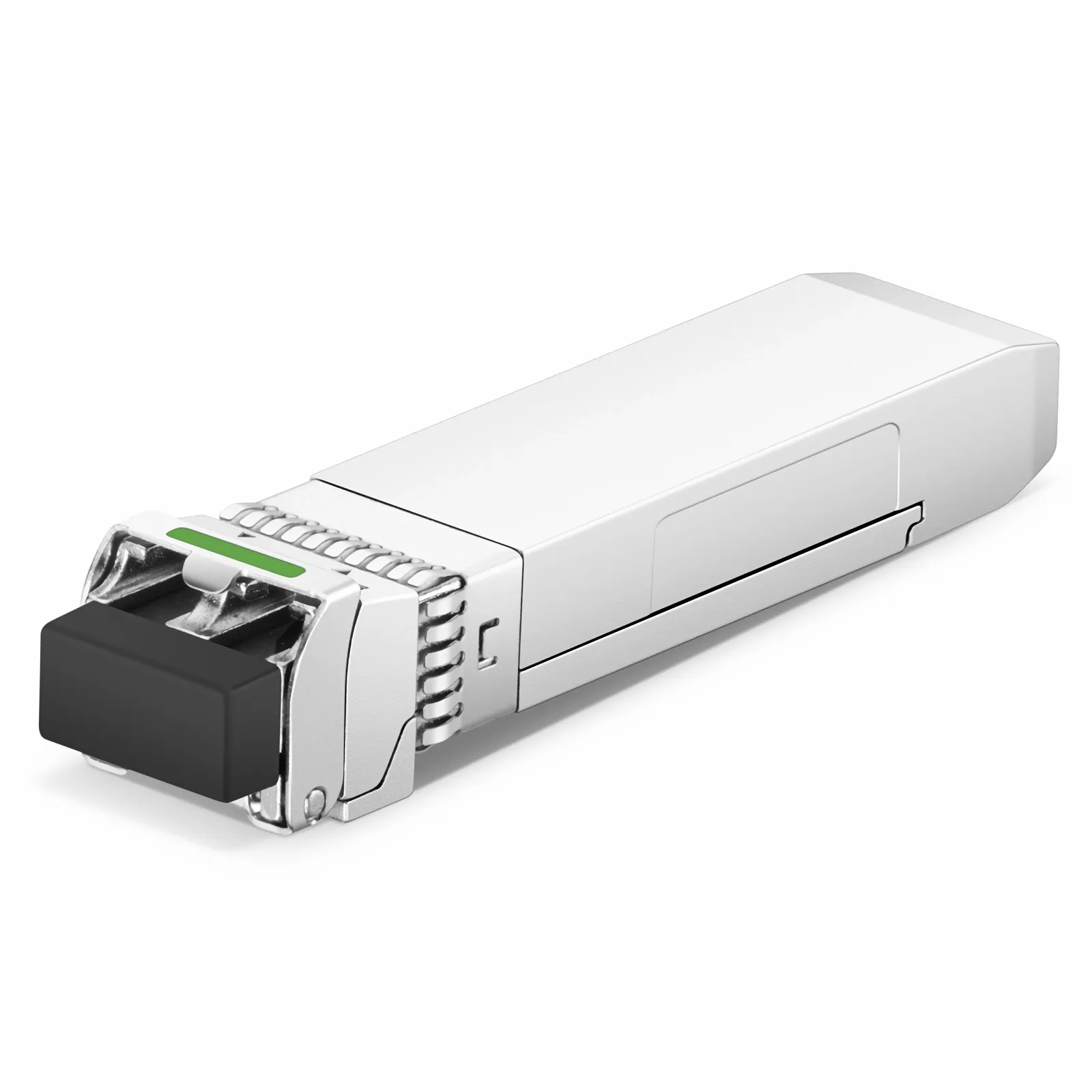

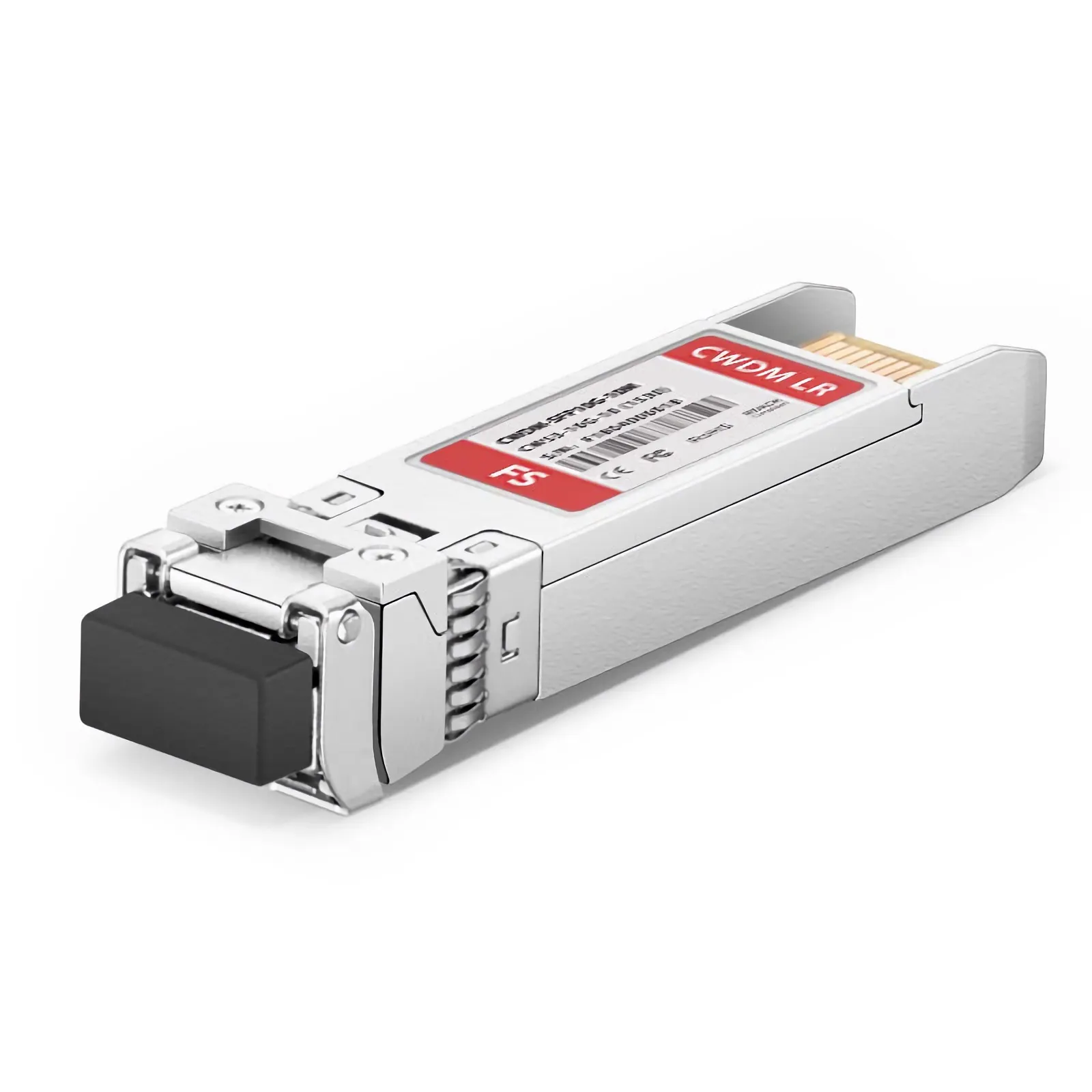

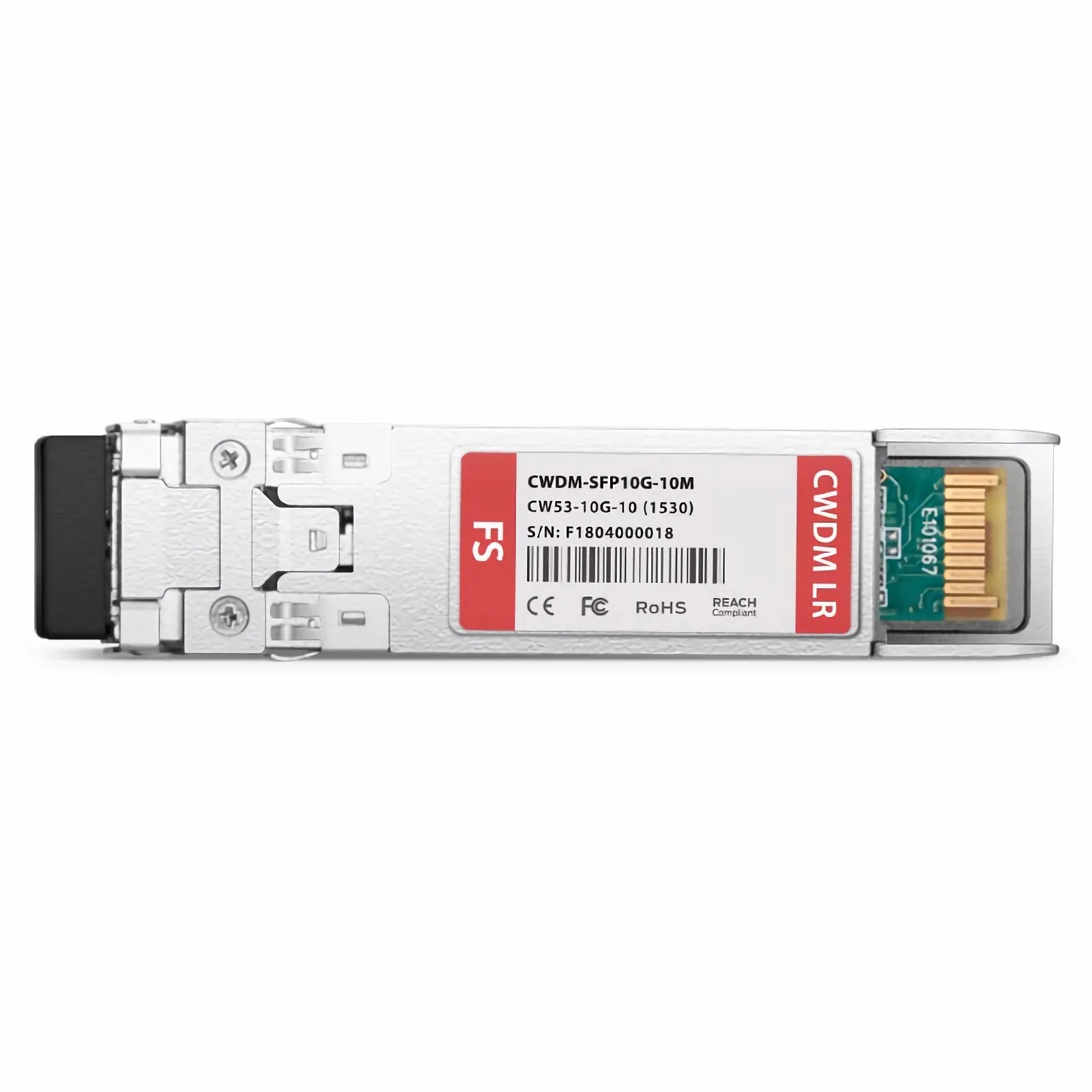

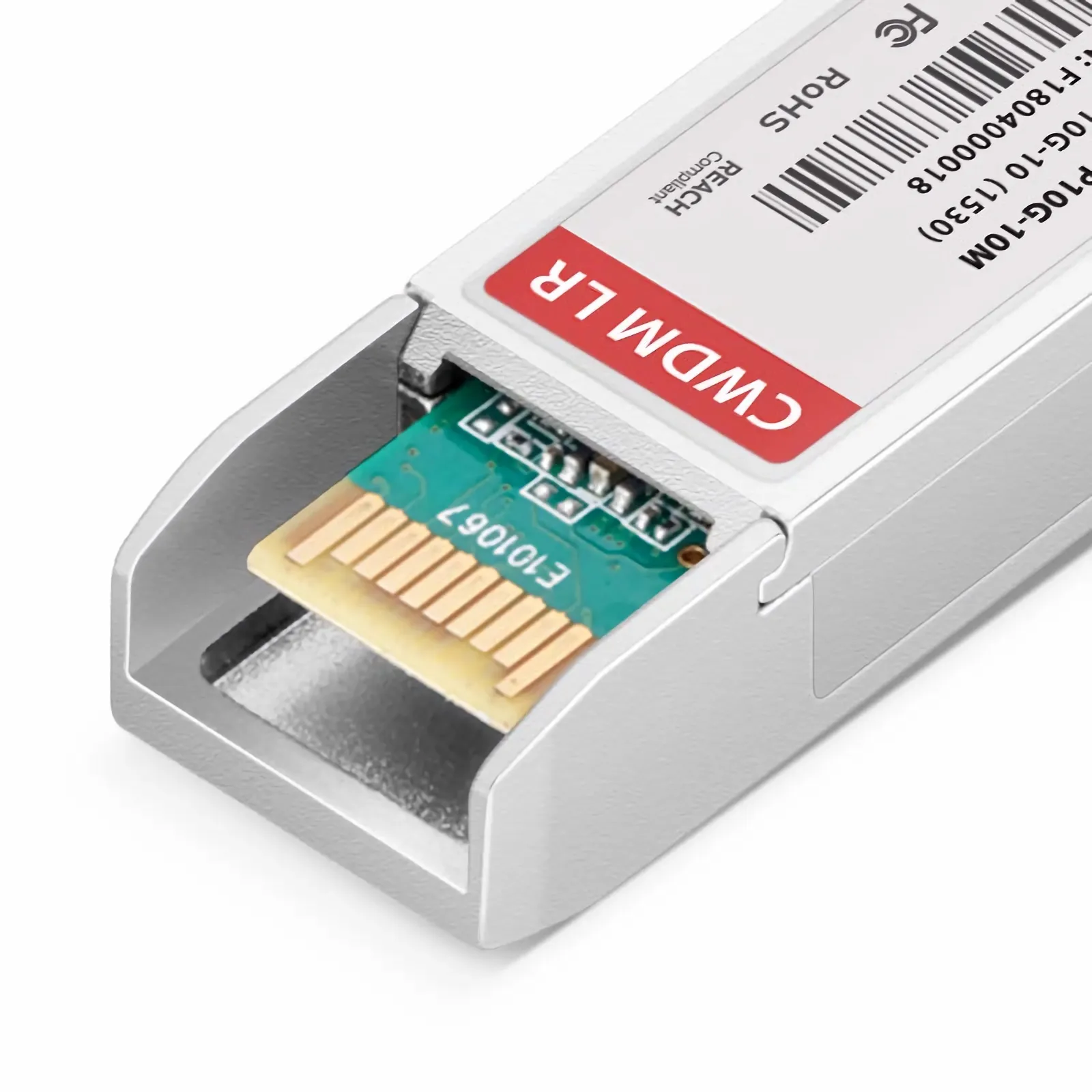

FS CWDM-SFP10G-1530-10 10G 1530nm 10km SMF SFP+ Transceiver Module
Network managers often struggle with signal loss when they try to link buildings or data halls that are several kilometers apart. Weak signals cause errors, downtime, and extra maintenance. This module solves the problem by delivering a stable 10G optical link at 1530 nm over up to 10 km of single-mode fiber. You get clear data flow, lower error rates, and peace of mind, all while staying compatible with Cisco equipment.
Benefits
- High-speed 10G transmission lets you handle bandwidth-intensive apps without lag.
- 10 km reach eliminates the need for repeaters or extra hardware between sites.
- Low power draw (1.5 W) reduces energy costs and heat in your rack.
- Built-in DOM support gives you real-time monitoring of temperature and optical performance.
- Cisco compatible design ensures easy integration with existing gear.
Usages
Use this transceiver to connect two data centers that are up to 10 km apart, link campus buildings, extend storage area networks, or build high-speed backbones for video surveillance systems. It works well in enterprise LANs, metro Ethernet, and carrier-grade environments where reliable 10G performance is required.
Key Features
- CWDM-SFP10G-1530-10 model, Cisco compatible.
- SFP+ form factor fits standard 10G ports.
- Maximum data rate of 10 Gbps.
- Wavelength of 1530 nm for low-loss SMF transmission.
- Supports up to 10 km of single-mode fiber (SMF).
- Duplex LC connectors for easy plug-in.
- DFB CWDM optical components for stable output.
- TX power range -1 to 5 dBm, RX power -14.4 to 0 dBm.
- Extinction ratio greater than 3.5 dB, NRZ modulation.
- Compliant with SFP+ MSA, SFF-8472, SFF-8431, 802.3ae, ITU-T G.652.
- Operating temperature from 0 °C to 70 °C (32 °F to 158 °F).
- DOM support for real-time diagnostics.
Specifications
| Product Information |
|
| Cisco Compatible |
CWDM-SFP10G-1530-10 |
| Vendor Name |
FS.COM |
| Form Factor |
SFP+ |
| Max Data Rate |
10Gbps |
| Wavelength |
1530nm |
| Max Cable Distance |
10km |
| Connector |
Duplex LC |
| Media |
SMF |
| Power Consumption |
1.5W |
| Packaging Technology |
TO |
| Optical Components |
DFB CWDM |
| DOM Support |
Yes |
| TX Power |
-1~5dBm |
| RX Power |
-14.4~0dBm |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| Receiver Sensitivity |
<-14.4dBm |
| Modulation |
NRZ |
| Extinction Ratio |
>3.5dB |
| Protocols |
SFP+ MSA Compliant, SFF 8472,SFF 8431,802.3ae, ITU-T G.652 |
