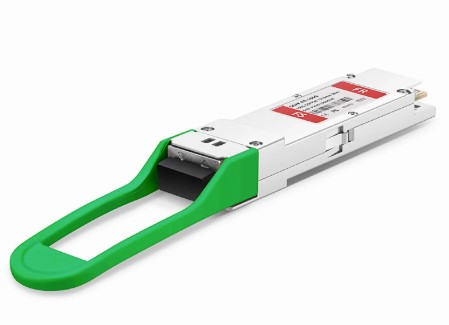

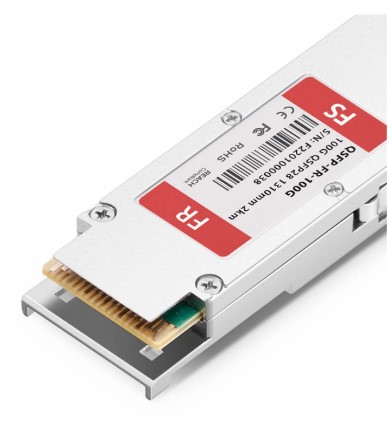

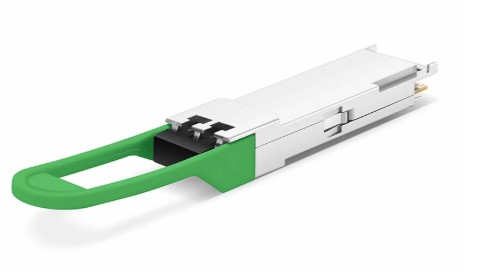

FS QSFP-100G-FR-S QSFP28 1310nm 2km Duplex LC/UPC SMF Transceiver Module

FS QSFP-100G-FR-S QSFP28 100G 1310nm 2km Duplex LC SMF Transceiver

The FS QSFP-100G-FR-S is a QSFP28 transceiver module designed for 100Gbps optical networking over single-mode fiber (SMF). It supports a maximum cable distance of 2km and provides a maximum data rate of 103.125Gbps (4x 25.78Gbps).

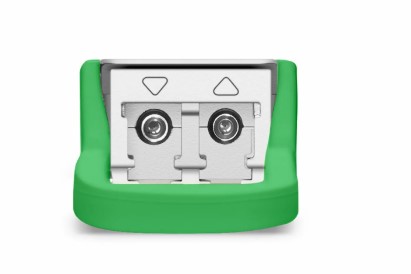

This 100G QSFP28 transceiver operates at a 1310nm wavelength and features a Duplex LC connector. It uses an EML transmitter and PIN receiver for optical transmission and reception.

The module provides a 4dB power budget with TX power of -2.4~4dBm and minimum receiver power of -6.4dBm. It supports DDM/DOM for monitoring and has a maximum power consumption of ≤4W.

The FS QSFP-100G-FR-S uses 4x 25G-NRZ electrical modulation and 1x 100G-PAM4 optical modulation. It also features BOX Packaging technology and supports KP4 inbuilt FEC.

The transceiver operates within a commercial temperature range of 0 to 70°C (32 to 158°F) and complies with the 100G Lambda MSA 100G-FR Specification. It is supplied with a 5-year warranty.

Key Features

• QSFP28 form factor

• 103.125Gbps maximum data rate

• 1310nm wavelength

• 2km maximum cable distance

• Duplex LC connector

• Single-mode fiber (SMF)

• EML transmitter

• PIN receiver

• DDM/DOM supported

• ≤4W power consumption

• 4x 25G-NRZ electrical modulation

• 1x 100G-PAM4 optical modulation

Specifications
