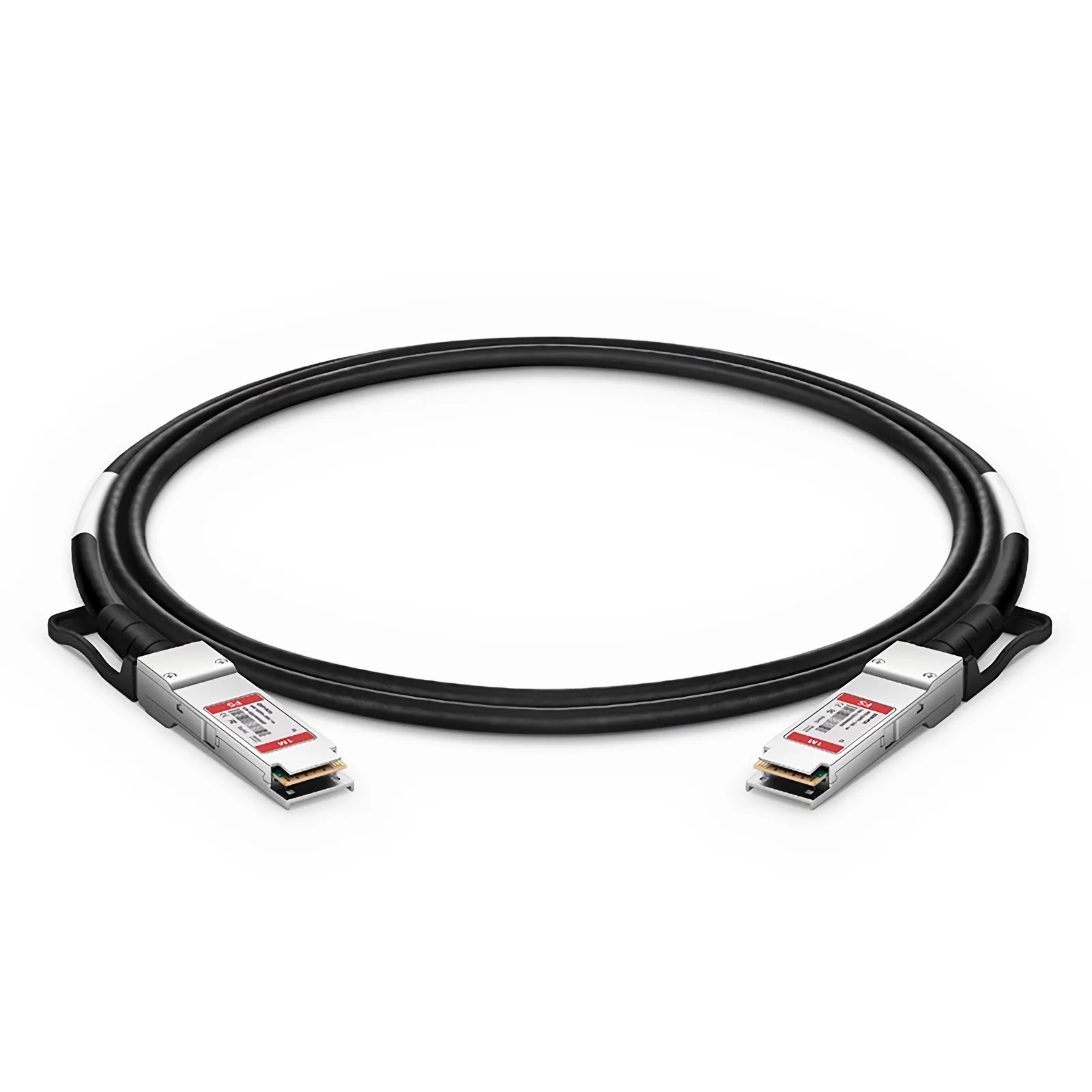

FS QSFP-40G-PC01 1m 40G QSFP+ Passive Copper Cable 40Gbps
The FS QSFP-40G-PC01 is a 1m (3.28ft) 40G QSFP+ Passive Copper Cable designed for high-speed direct connectivity between compatible QSFP+ interfaces. It supports a maximum data rate of 40Gbps.
This 40G QSFP+ passive copper cable features a QSFP+ to QSFP+ connector configuration, providing a direct copper connection for compatible high-speed networking equipment.
The cable uses 30AWG wire and has a minimum bend radius of 35mm. Its 1m length makes it suitable for short-distance connections within network racks and equipment installations.
The FS QSFP-40G-PC01 features a PVC (OFNR) jacket material and operates across a temperature range of 0 to 70°C (32 to 158°F).
The cable is specified for SFF-8436, QSFP+ MSA and IEEE 802.3ba protocols, supporting compatible 40Gbps networking applications.
Key Features
-
40Gbps maximum data rate
-
QSFP+ to QSFP+ connector type
-
1m (3.28ft) cable length
-
Passive copper cable
-
30AWG wire
-
35mm minimum bend radius
-
PVC (OFNR) jacket material
-
0 to 70°C operating temperature
-
SFF-8436 compliant
-
QSFP+ MSA compliant
-
IEEE 802.3ba compliant
Specifications
| Part Information |
|
| Part Number |
QSFP-40G-PC01 |
| Vendor Name |
FS |
| Connectivity |
|
| Connector Type |
QSFP+ to QSFP+ |
| Max Data Rate |
40Gbps |
| Physical |
|
| Minimum Bend Radius |
35mm |
| Wire AWG |
30AWG |
| Cable Length |
1m (3.28ft) |
| Jacket Material |
PVC (OFNR) |
| Environmental |
|
| Temperature |
0 to 70°C (32 to 158°F) |
| Protocols |
|
| Protocols |
SFF-8436, QSFP+ MSA and IEEE 802.3ba |
