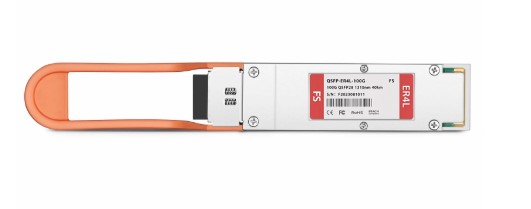

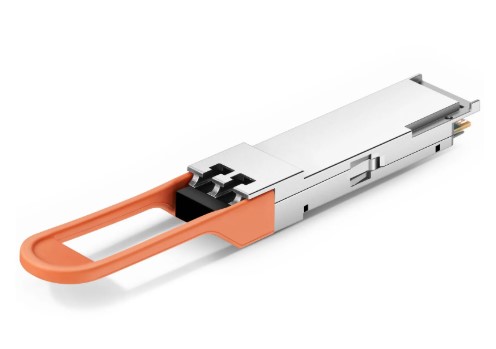

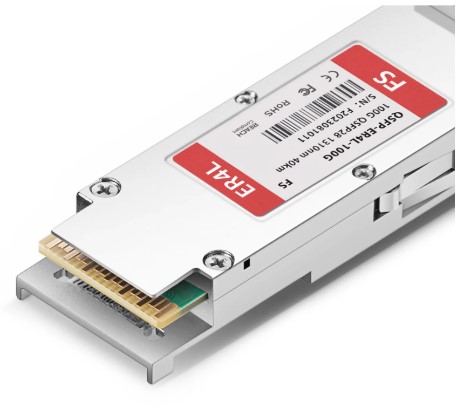

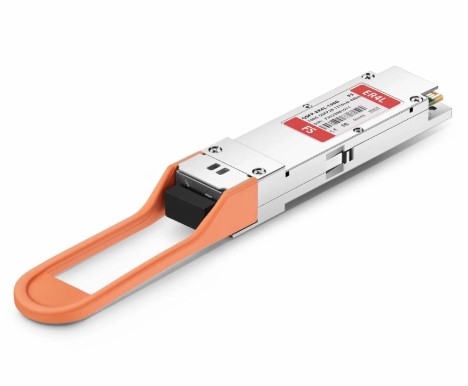

FS QSFP-ER4L-100G, 100GBASE-ER4L QSFP28 1310nm 40km Transceiver Module

Looking for a fast, reliable link that can stretch over dozens of kilometres? The FS QSFP-ER4L-100G, 100GBASE-ER4L QSFP28 1310nm 40km Transceiver Module gives you exactly that. It is a QSFP28 transceiver designed for 100 Gbps Ethernet and works on single-mode fiber up to 40 km. If your network is losing speed or cannot reach a remote site, this module solves the distance problem while keeping the signal clean and stable.

FS QSFP-ER4L-100G, 100GBASE-ER4L QSFP28 1310nm 40km Transceiver Module

Many data centres and campus networks need to connect buildings that are far apart. The lack of a long-reach solution forces you to add extra equipment, which raises cost and complexity. This problem matters because every extra hop adds latency and a point of failure. The FS QSFP-ER4L-100G provides a single-module answer: 100 Gbps over 40 km of SMF, low power use, and built-in diagnostics, so you can extend your network without extra repeaters.

Key Features

• Form factor: QSFP28
• Wavelength: 1310 nm
• Maximum cable distance: 40 km on SMF
• Connector: Duplex LC/UPC
• Transmitter type: EML, Receiver type: APD
• TX power: -2.5 ~ 6.5 dBm, Receiver sensitivity: -20.5 dBm
• Power budget: 18 dB, Power consumption: 4.5 W
• BER: 1E-12, MTBF: over 16 million hours
• Supports DDM/DOM, built-in TX & RX CDR, and IEEE 802.3bm/CAUI-4 protocols

Specifications
