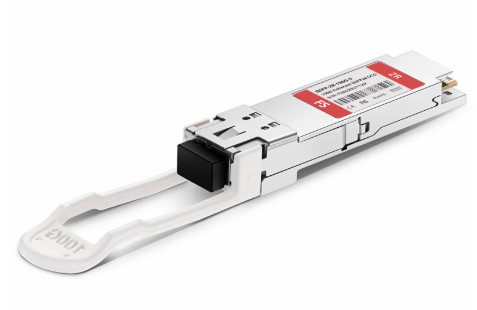

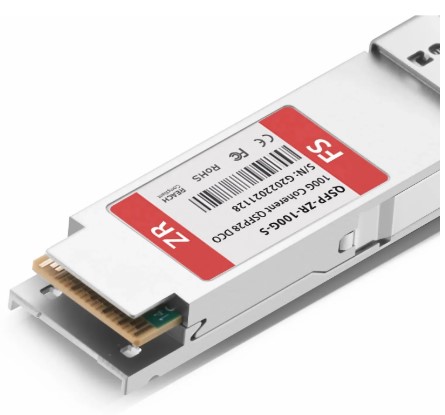

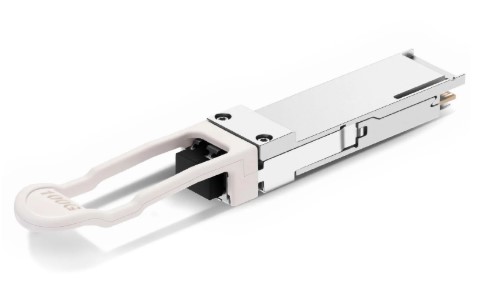

FS QSFP-ZR-100G-S QSFP28 DCO 100G 80km SMF Transceiver Module
The FS QSFP-ZR-100G-S is a QSFP28 DCO transceiver module designed for 100Gbps optical networking over duplex single-mode fiber. It supports a maximum cable distance of 80km without amplification.
This 100G QSFP28 transceiver uses C-Band 5THz DWDM Tunable wavelength technology and features a Duplex LC/UPC connector. Its tunable transmitter and coherent receiver are designed for long-distance optical transmission.
The module supports multiple transmission distances depending on network configuration, including 80km unamplified, 120km amplified, and up to 300km with amplification and DCM.
The FS QSFP-ZR-100G-S provides a 22dBm power budget, -30dBm minimum receiver power, and a maximum power consumption of ≤5.5W. It also supports DDM/DOM for optical diagnostics and monitoring.
The transceiver supports NRZ and DP-DQPSK modulation formats and includes RS (528,514), SC inbuilt FEC. It operates within a commercial temperature range of 0 to 70°C (32 to 158°F).
Key Features
-
100Gbps maximum data rate
-
QSFP28 DCO transceiver
-
80km unamplified cable distance
-
Up to 120km amplified distance
-
Up to 300km with amplification and DCM
-
C-Band 5THz DWDM Tunable wavelength
-
Duplex LC/UPC connector
-
Duplex SMF media
-
Tunable transmitter
-
Coherent receiver
-
22dBm power budget
-
DDM/DOM supported
-
≤5.5W maximum power consumption
Specifications:
| Compatibility |
|
| Cisco Compatible |
DP01QS28-E20 |
| Vendor Name |
FS |
| Optical & Performance |
|
| Form Factor |
QSFP28 |
| Max. Data Rate |
100Gbps |
| Wavelength |
C-Band 5THz DWDM Tunable |
| Max. Cable Distance |
80km (unamplified), 120km (amplified), 300km (amplified and DCM) |
| Connector |
Duplex LC/UPC |
| Media |
Duplex SMF |
| Transmitter Type |
Tunable |
| Receiver Type |
Coherent |
| TX Power |
-8~-4dBm |
| Minimum Receiver Power |
-30dBm |
| Power Budget |
22dBm |
| Receiver Overload |
3dBm |
| Max. Power Consumption |
≤5.5W |
| Inbuilt FEC |
RS (528,514), SC |
| DDM/DOM |
Supported |
| Environmental |
|
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| Transmission Performance |
|
| CD Robustness |
100G DQPSK SC: 16.5dB/0.1nm, 100G DQPSK RS: 21.5dB/0.1nm |
| OSNR Tolerance |
Default, OSNR penalty <0.5dB: 2.4ns/nm, Extended, OSNR penalty < 1.0dB: 6.0ns/nm |
| Modulation Format |
NRZ, DP-DQPSK |
| Protocols |
|
| Protocols |
IEEE 802.3™-2022, 100GBASE-ZR, CMIS, SFF-8024 |
