FS SMLCSCDX 1m LC to SC UPC Duplex Single Mode (OS2) Fiber Patch Cable

When a network needs fast, reliable data transfer, a bad fiber connection can cause slow speeds, dropped packets, and costly downtime. This matters to anyone who runs a data center, an office LAN, or a telecom link because every minute of loss hurts productivity and revenue. The FS SMLCSCDX 1m LC to SC UPC Duplex Single Mode (OS2) Fiber Patch Cable solves the problem by giving you a high-quality, low-loss link that fits both LC and SC ports, so you can connect equipment quickly and keep your network running smoothly.

FS SMLCSCDX 1m LC to SC UPC Duplex Single Mode (OS2) Fiber Patch Cable with SMLCSCDX

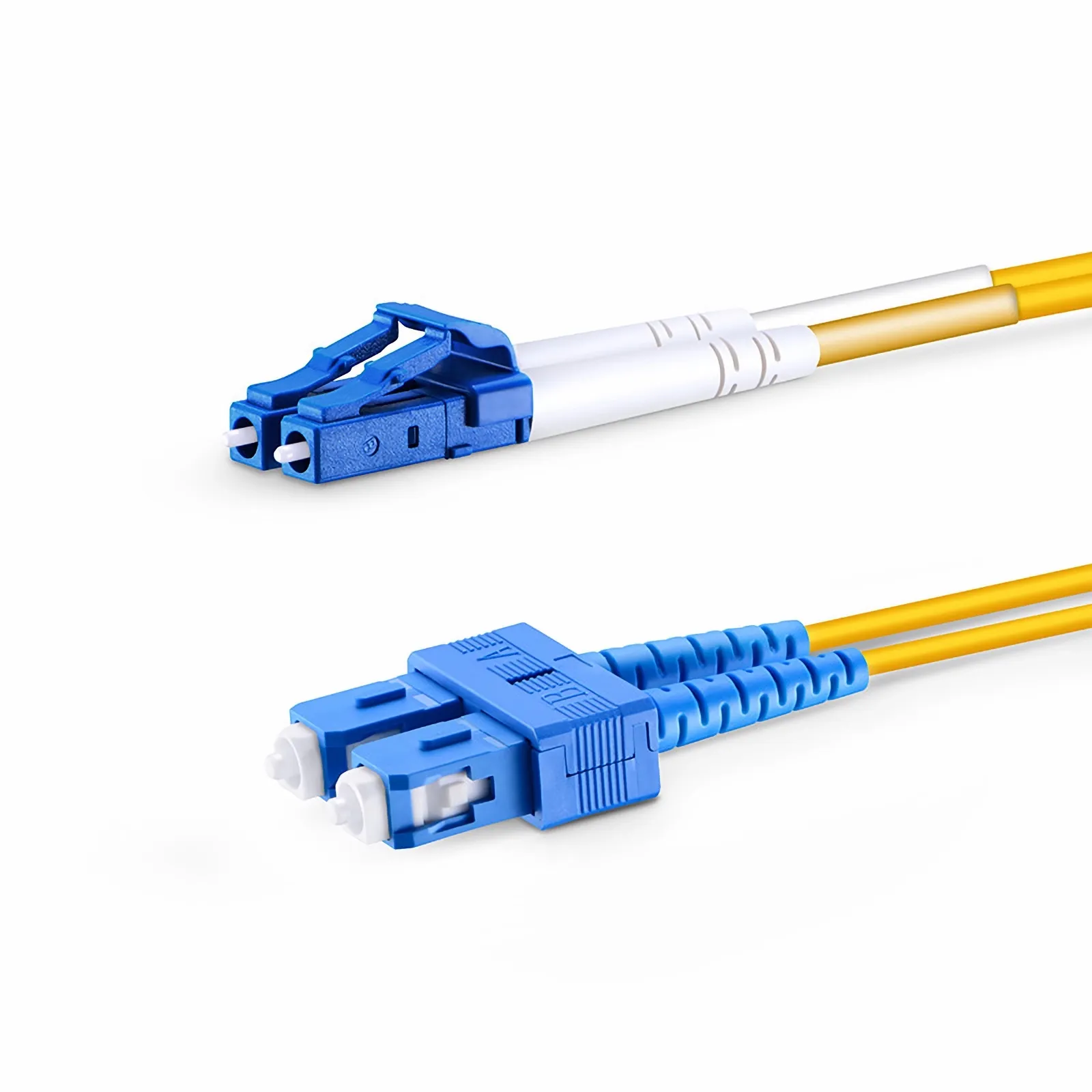

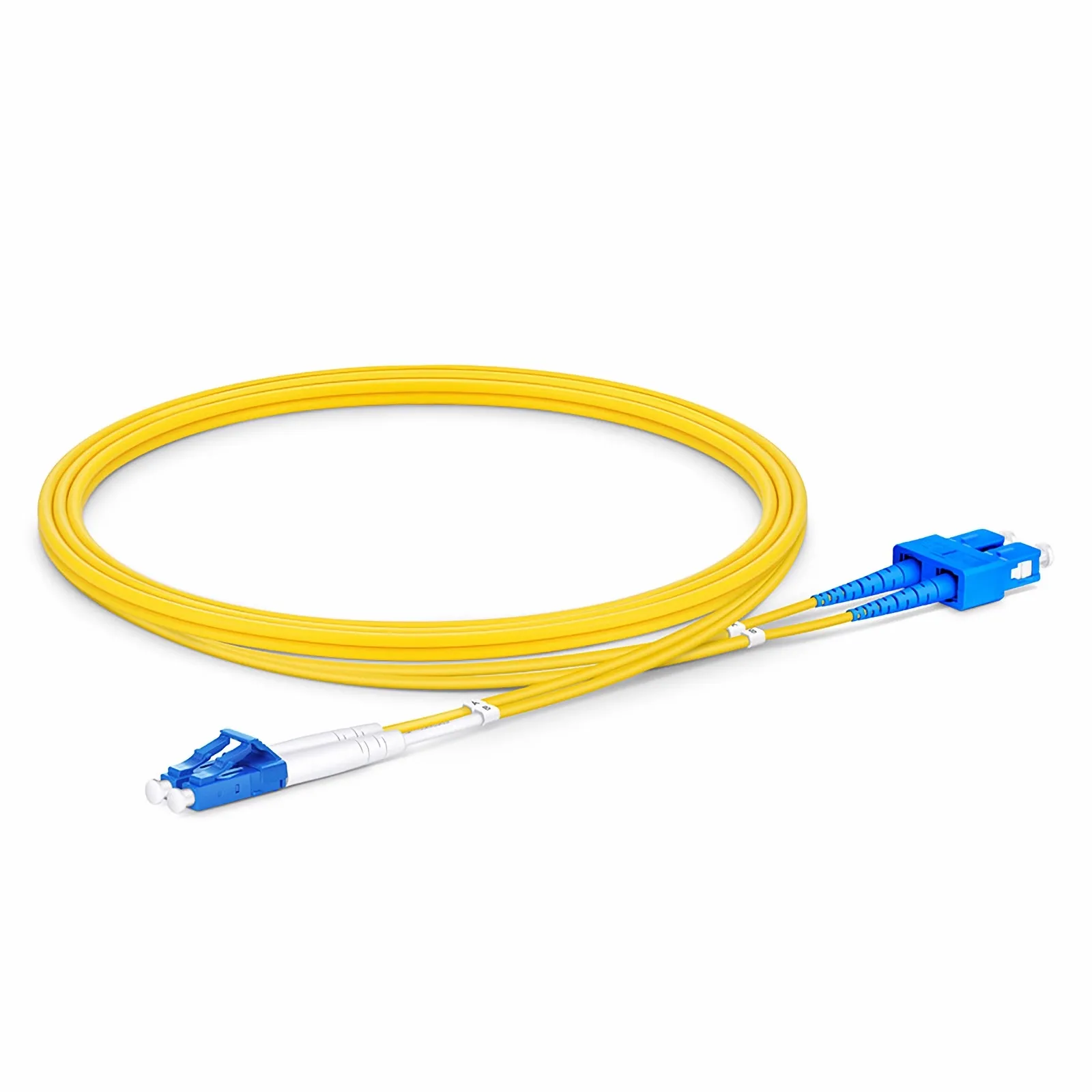

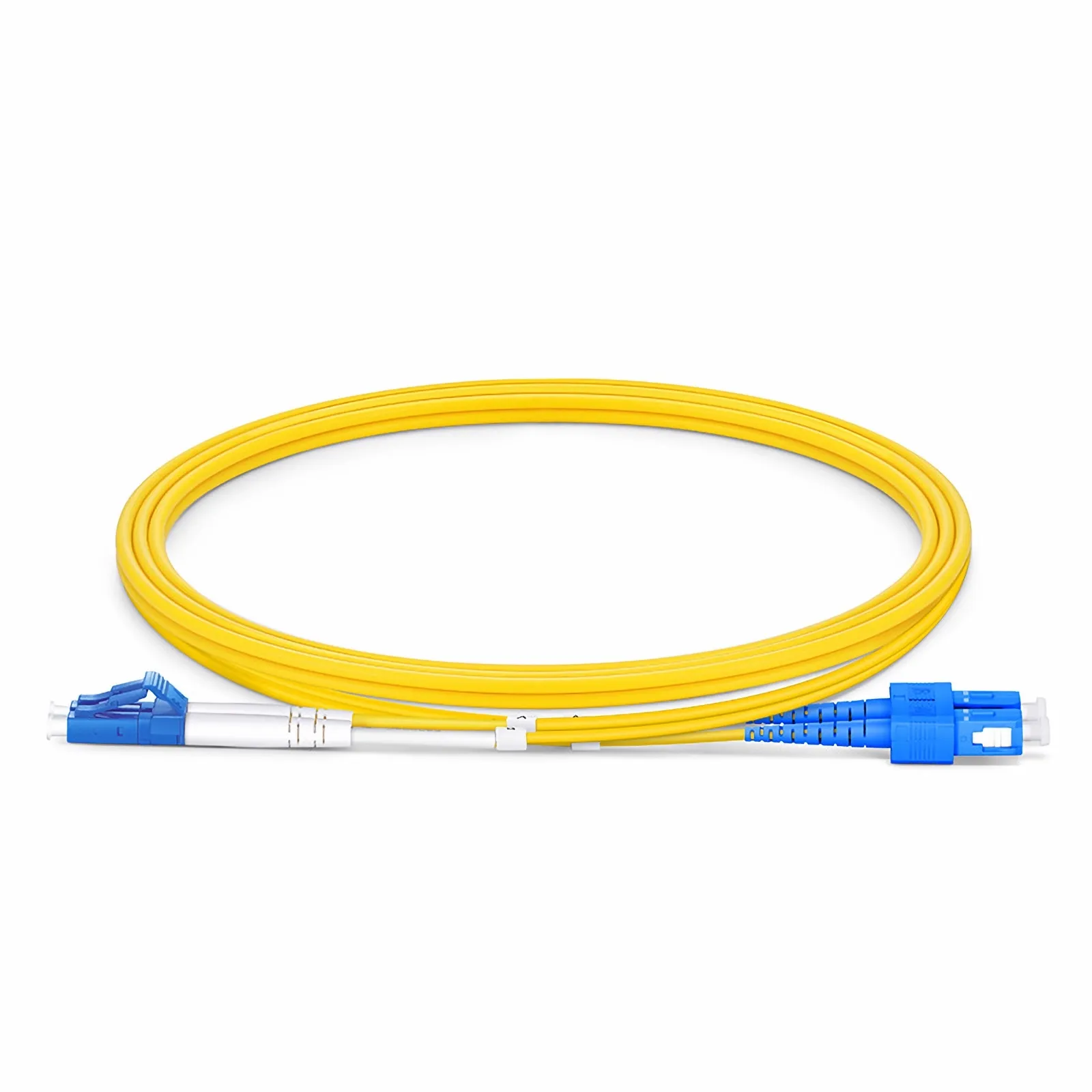

You need a cable that bridges two different connector types without sacrificing performance. This SMLCSCDX patch cable is a 1 meter duplex fiber link that joins LC UPC on one end to SC UPC on the other. It is built for single-mode OS2 fiber, so it carries 1310 nm and 1550 nm signals with almost no loss. If you have mismatched ports in a rack or need to connect a server to a switch, this cable gives you the exact fit and the signal quality you expect.

Key Features

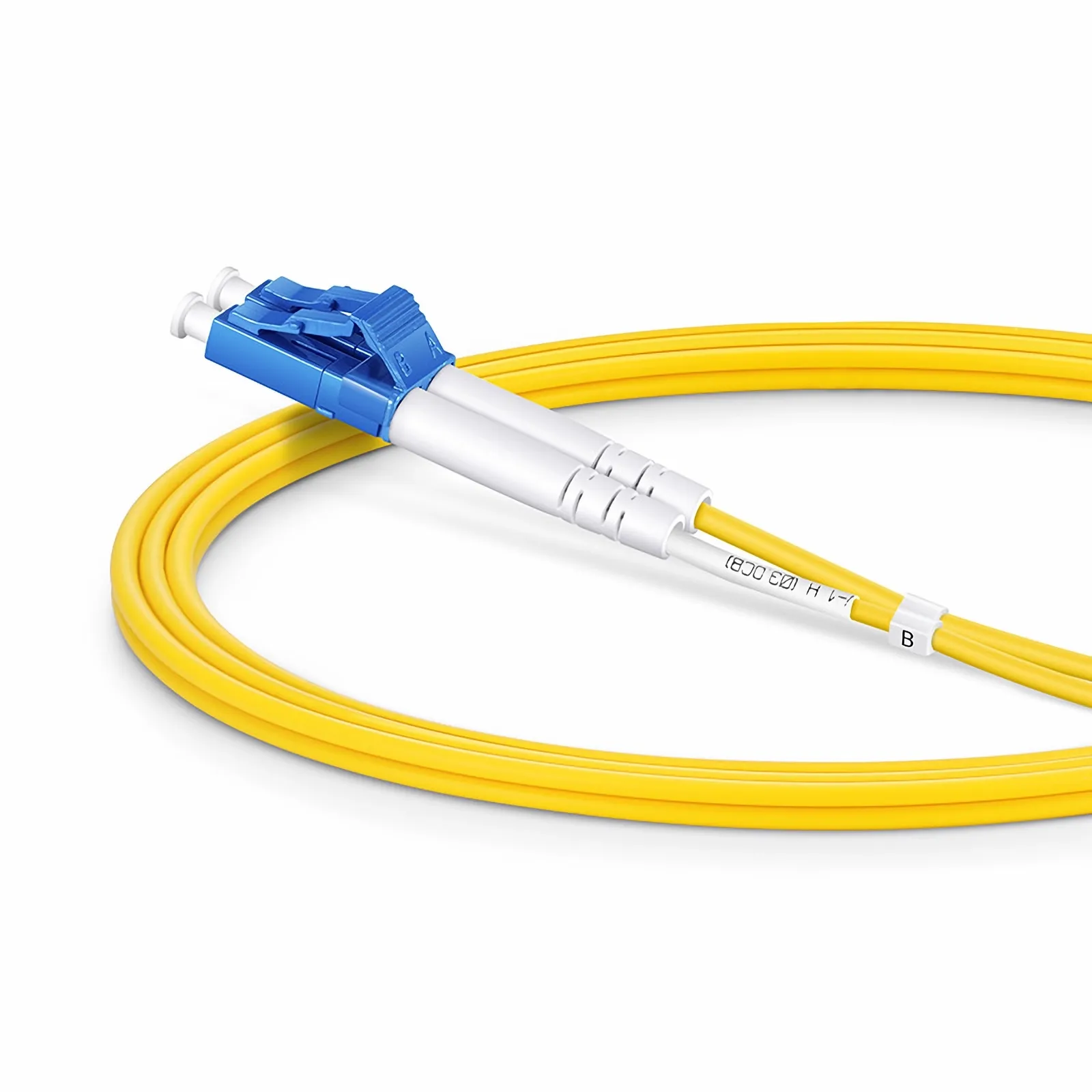

• LC UPC duplex connector on A side.

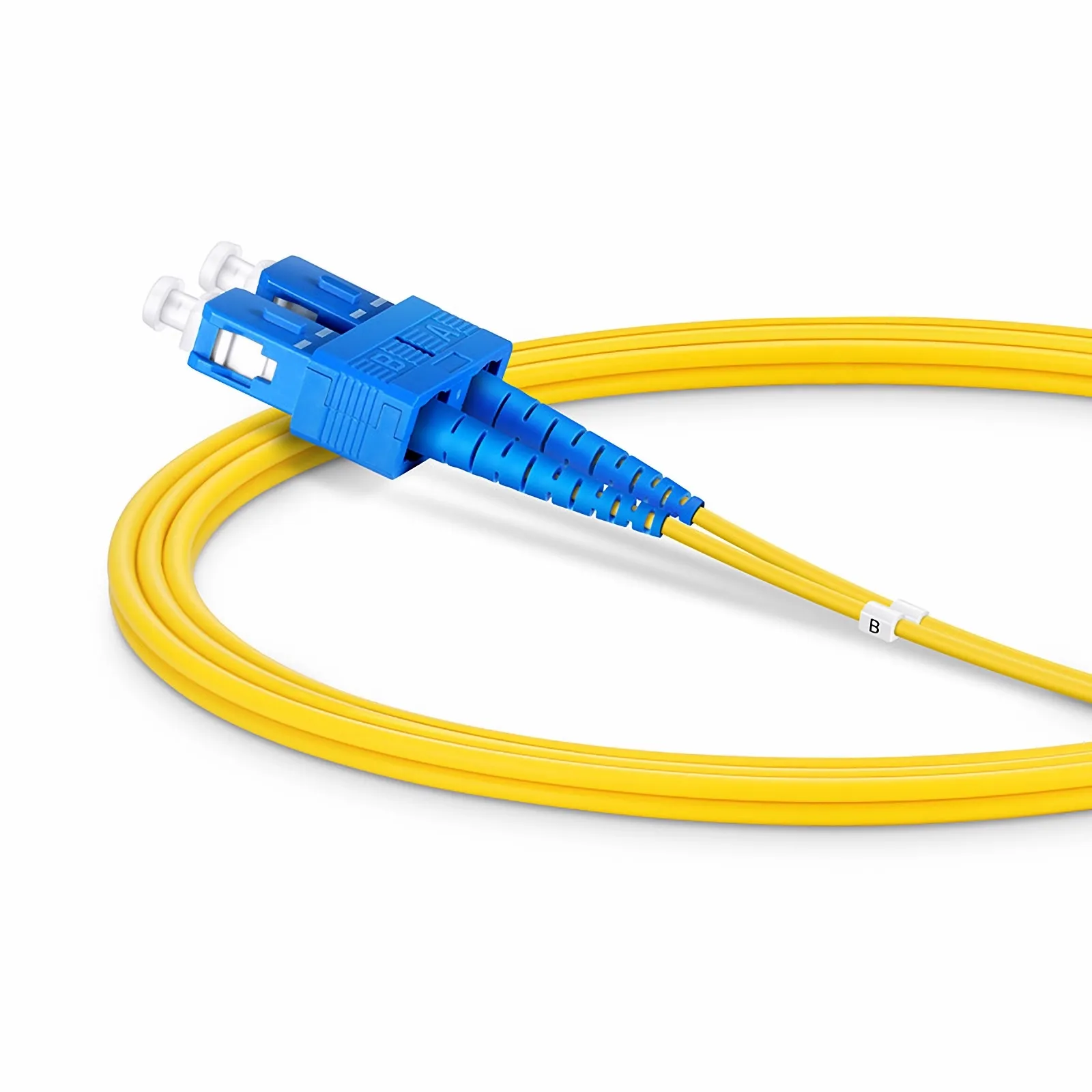

• SC UPC duplex connector on B side.
• Two single-mode fibers, G.657.A1 grade.
• OS2 9/125 m core for long-distance transmission.
• 1 m tight-buffered cable with 2.0 mm outer diameter.
• Min. bend radius 10 mm for easy routing.
• Flame rating OFNR (riser) for building compliance.
• Insertion loss 0.3 dB, return loss 50 dB.
• Attenuation 0.4 dB/km at 1310 nm, 0.3 dB/km at 1550 nm.
• Tensile strength 90 N long-term, 150 N short-term.
