When you need a fast, reliable link between two single-mode devices, a bad fiber patch can cause loss, downtime, and costly troubleshooting. This matters because every lost bit can slow your network, affect video streams, or interrupt critical data transfers. The FS SMSTDX ST UPC to ST UPC, Single Mode (OS2) 1m Fiber Patch Cable gives you a clean, low-loss connection that eliminates those problems and keeps your system running smoothly.

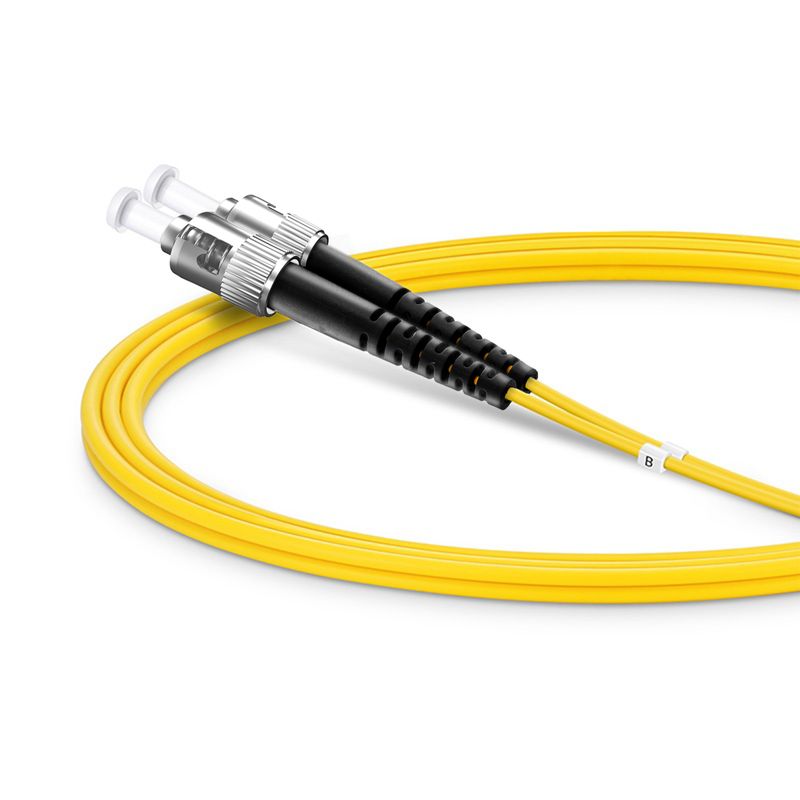

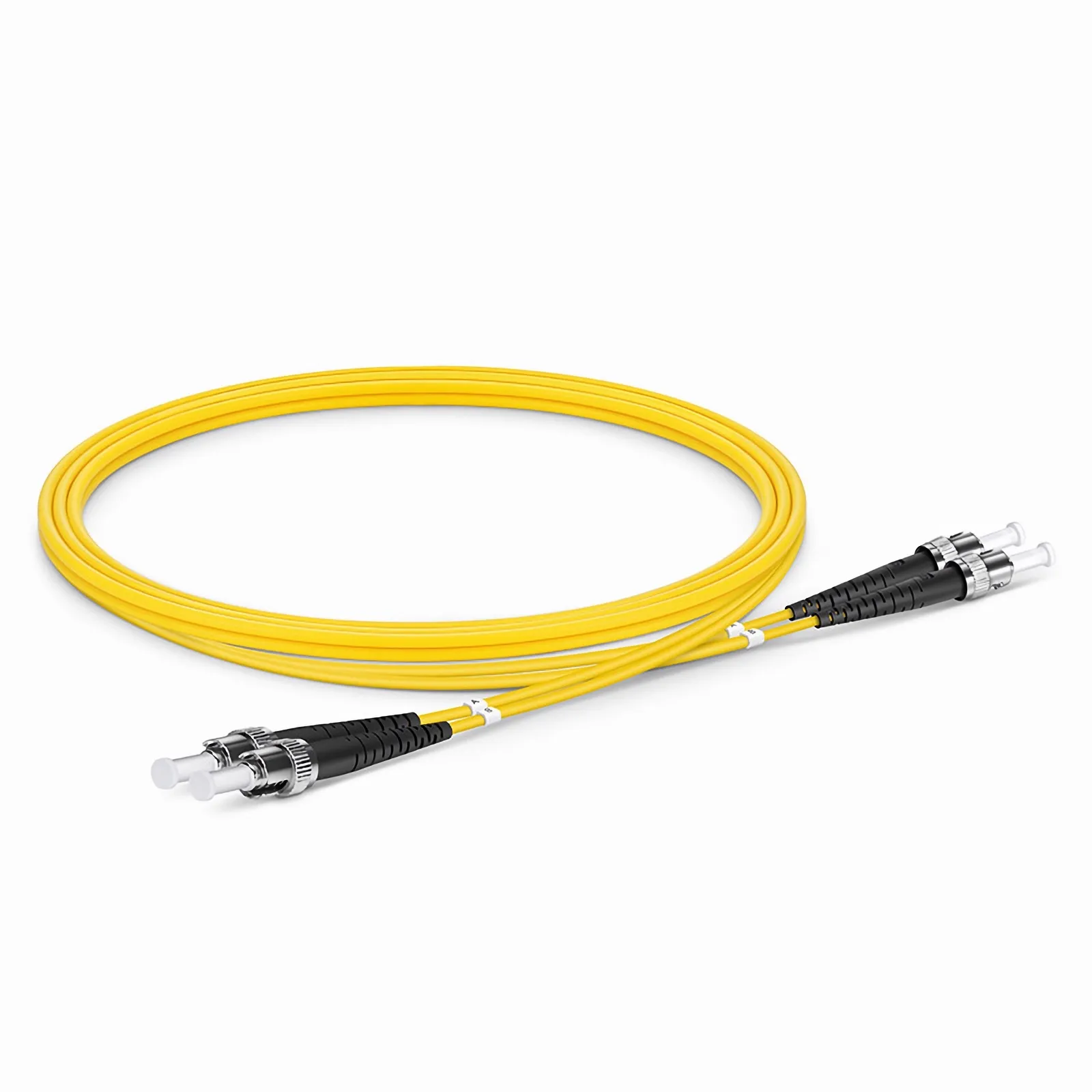

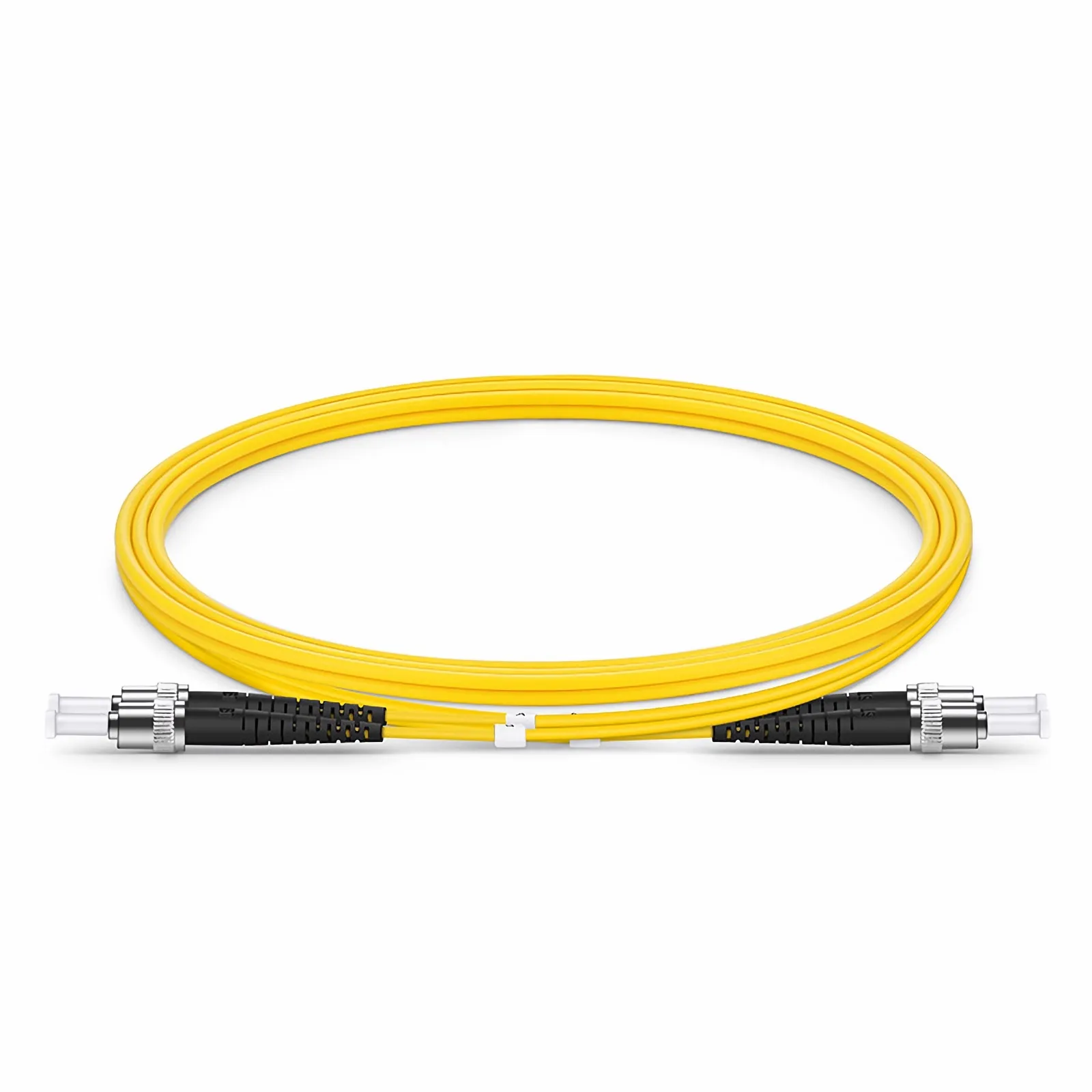

FS SMSTDX ST UPC to ST UPC, Single Mode (OS2) 1m Fiber Patch Cable with SMSTDX
You need a cable that simply works, no matter where you install it. This 1 meter SMSTDX patch cable connects two ST UPC connectors with OS2 single-mode fiber, delivering ultra-low insertion loss and high return loss. If you are fighting weak signals or frequent disconnects, this cable solves the issue by providing a stable optical path that meets industry standards.
Usages
The cable is perfect for linking switches, routers, or media converters in a data center rack. Use it to connect transceivers in a telecom cabinet, or as a short jump between optical modules in a test lab. It also works well for building-to-building fiber runs where space is limited and a short, reliable link is required.
Benefits
- Very low loss (< 0.3 dB) keeps your signal strong.
- High return loss ( 50 dB) reduces reflections and errors.
- Riser-rated jacket meets fire safety codes for building installations.
- Durable connectors survive 1000 mating cycles, so you can re-plug without wear.
- Yellow jacket makes the cable easy to spot in crowded racks.
Key Features

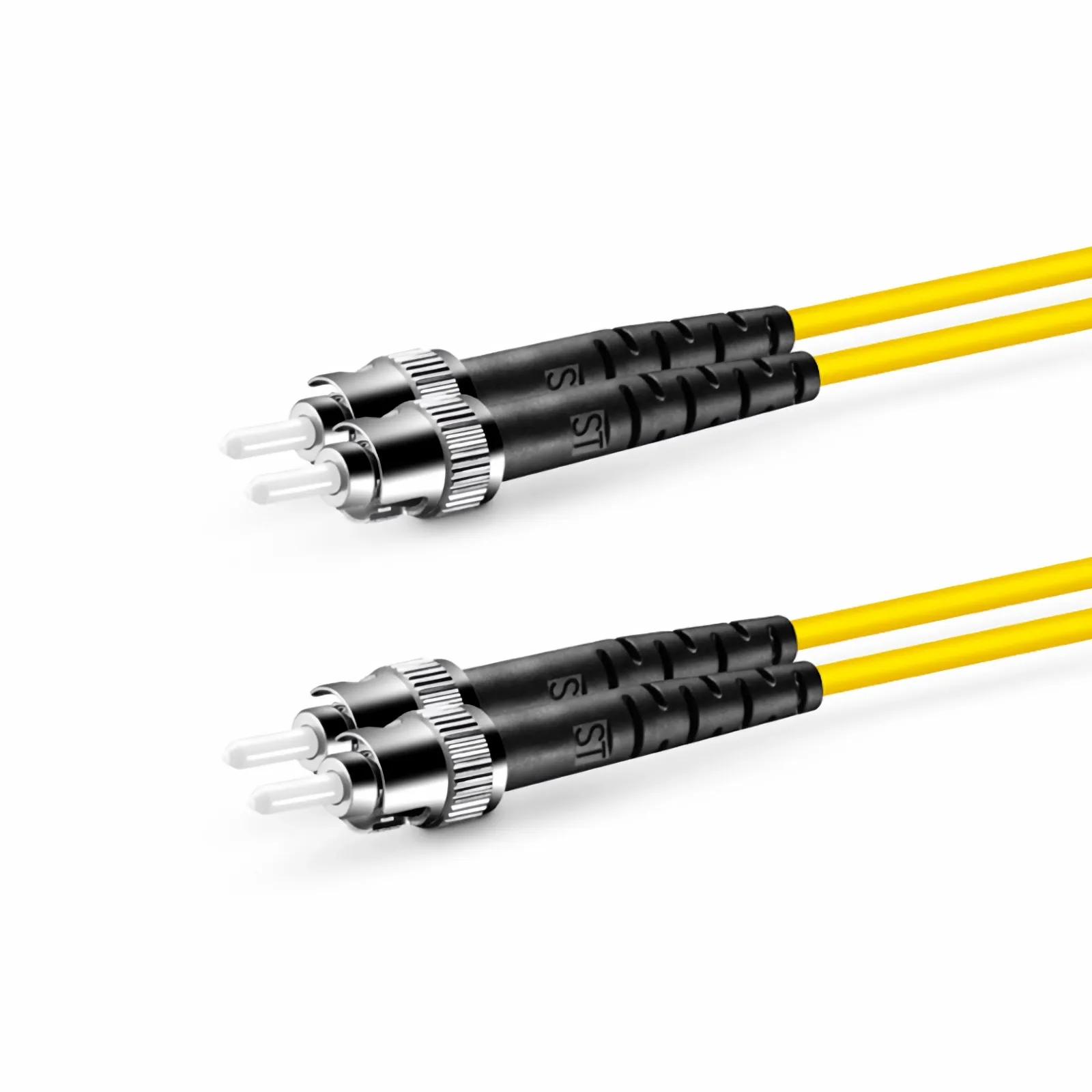

- ST UPC connectors on both ends.
- 2-fiber, G.657.A1 grade compatible with G.652.D.
- OS2 9/125 m single-mode fiber for 1310/1550 nm wavelengths.
- 1 m length for tight-space applications.
- Riser (OFNR) flame rating for safe building use.
- 2.0 mm outer diameter, easy to route.
- Tight-buffered construction for robust handling.
- Minimum bend radius 10 mm (optical) and 10/5D (dynamic/static).
- Insertion loss 0.3 dB, return loss 50 dB.
Specifications
| Connector |
|
| Connector A |
ST UPC |
| Connector B |
ST UPC |
| Fiber |
|
| Fiber Count |
2 Fibers |
| Fiber Grade |
G.657.A1 (Compatible with G.652.D) |
| Fiber Mode |
OS2 9/125μm |
| Wavelength |
1310/1550nm |
| Cable |
|
| Flame Rating |
Riser (OFNR) |
| Cable Outside Diameter (OD) |
2.0mm |
| Jacket Color |
Yellow |
| Cable Type |
Tight-Buffered |
| Min. Bend Radius (Optical Fiber) |
10mm |
| Min. Bend Radius (Fiber Cable) |
10/5D (Dynamic/Static) |
| Performance |
|
| Connector Durability |
1000 times |
| Tensile Strength |
90/150N (Long/Short Term) |
| Insertion Loss |
≤0.3dB |
| Return Loss |
≥50dB |
| Attenuation at 1310nm |
≤0.4dB/km |
| Attenuation at 1550nm |
≤0.3dB/km |
| Environmental |
|
| Operating Temperature |
-10 to 70°C (14 to 158℉) |
| Storage Temperature |
-20 to 70°C (-4 to 158℉) |
