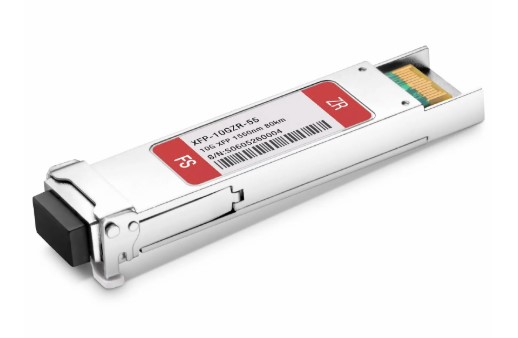

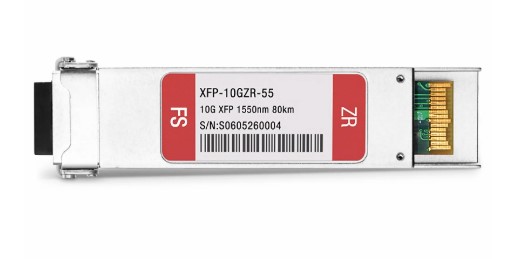

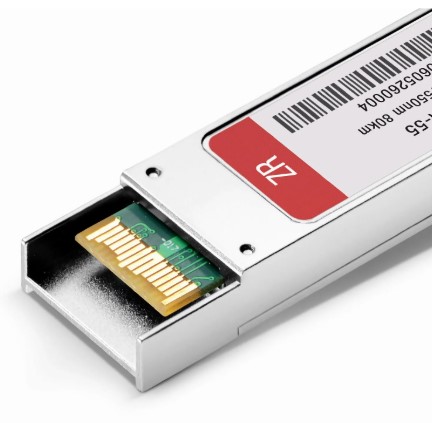

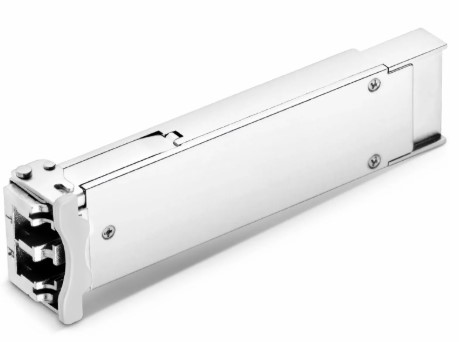

FS XFP-10GZR-OC192LR XFP 1550nm 80km Duplex LC SMF Transceiver Module

Looking for a reliable way to extend your 10 Gbps network over long distances? The FS XFP-10GZR-OC192LR XFP 1550nm 80km Duplex LC SMF Transceiver Module is the answer. This XFP transceiver lets you send and receive data up to 80 km on single-mode fiber, perfect for campus links, data-center interconnects, and carrier backbones. If you have been struggling with signal loss or costly repeaters, this module solves the problem with a clean, plug-and-play design.

FS XFP-10GZR-OC192LR XFP 1550nm 80km Duplex LC SMF Transceiver Module

Network managers often face the challenge of keeping high-speed links stable over many kilometers. Weak signals mean downtime, lost revenue, and endless troubleshooting. This transceiver removes that worry by delivering a strong 1550 nm optical signal that can travel up to 80 km without degradation. It works with Cisco equipment and follows the SFP+ MSA, so you do not need special adapters or firmware changes. In short, you get a simple, cost-effective solution that keeps your 10 Gbps traffic flowing.

Benefits

• Long reach up to 80 km reduces the need for repeaters and saves money.
• 10 Gbps data rate supports bandwidth-intensive applications like video streaming and cloud backup.
• LC duplex connector fits standard fiber patch panels, making installation quick.
• Built-in DOM monitoring lets you see temperature and power levels in real time.
• Compatible with Cisco and other major vendors, so you avoid lock-in.

Usages

Use this module to connect two data-center buildings that are far apart, to link campus networks across a university, or to extend a carriers metro Ethernet ring. It also works well in telecom sites that need CPRI or eCPRI transport for radio-access networks. Anywhere you need a stable 10 Gbps link over single-mode fiber, this XFP fits the job.

Key Features

• Form factor: XFP, easy to slot into compatible ports.
• Wavelength: 1550 nm for low attenuation on SMF.
• Maximum data rate: 10 Gbps.
• Transmission distance: up to 80 km on single-mode fiber.

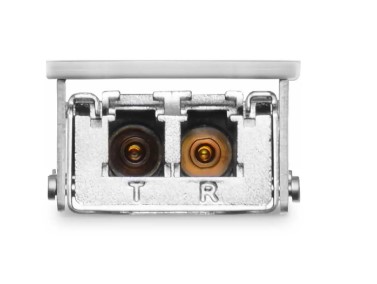

• Connector type: LC duplex for reliable mating.
• Transmitter: EML 1550 nm for high output power (0~4 dBm).
• Receiver sensitivity: better than -24 dBm.
• DOM support: real-time monitoring of temperature and optical power.
• Protocols: SFP+ MSA compliant, supports CPRI and eCPRI.
• Cisco compatible part number XFP-10GZR-OC192LR.
• Vendor: FS.COM, a trusted supplier of optical components.
