When a vessel is operating at sea, reliable satellite communication is essential for sending and receiving maritime safety information, especially when conventional communication systems are not available. The Furuno FELCOM20 is an Inmarsat-C Mobile Earth Station designed as a GMDSS terminal for shipboard satellite communication and safety applications.

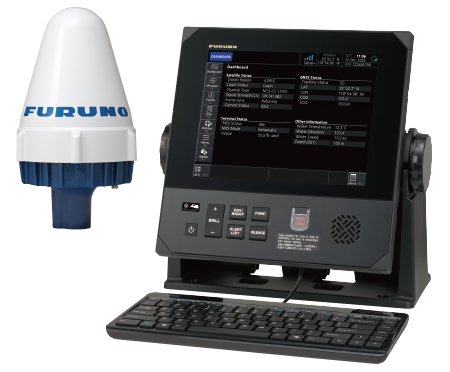

Furuno FELCOM20, Inmarsat-C Mobile Earth Station GMDSS Terminal
The Furuno FELCOM20 is an Inmarsat-C Mobile Earth Station designed for maritime satellite communication. It provides a shipboard terminal for communicating through the Inmarsat-C service and is intended for GMDSS applications where dependable satellite connectivity is required for maritime safety and communication operations.
The terminal operates across the specified Inmarsat-C transmitting and receiving frequency ranges and uses BPSK modulation for both transmission and reception. Its 600 and 1200 sps unfiltered BPSK transmit modes and 1200 sps unfiltered BPSK receive mode provide the communication characteristics required by the system.
The FELCOM20 is designed as a complete shipboard system rather than a standalone communication box. The standard equipment configuration includes the IC-120 antenna unit, IC-220 terminal unit, IC-318 junction box, keyboard, and installation materials. An IC-307 SSAS Alert Unit is included in the standard configuration only for the SSAS specification.
The system is designed to operate across a broad range of shipboard environmental conditions. The antenna unit supports temperatures from -35 °C to +55 °C, while the shipboard equipment is specified for -15 °C to +55 °C. The system also supports 95% relative humidity at 40°C, helping it operate in demanding maritime environments.
With a 12-24 VDC power supply, specified receiving performance of -23 dB/K or higher at 5° elevation, and transmit EIRP of 12-16 dBW at 5° elevation, the FELCOM20 provides a purpose-built satellite communication platform for maritime operations. Its dedicated antenna, terminal, junction box, and optional SSAS equipment support integration into shipboard GMDSS communication systems.
Key features
- Inmarsat-C Mobile Earth Station
- Designed for GMDSS maritime applications
- 1626.5 - 1646.5 MHz transmitting frequency
- 1537.0 - 1544.2 MHz receiving frequency
- 600, 1200 sps unfiltered BPSK transmission
- 1200 sps unfiltered BPSK reception
- 12-24 VDC power supply
- Standard antenna, terminal unit and junction box configuration
Specifications
| General |
|
| Product Name |
Inmarsat-C Mobile Earth Station |
| Transmitting Frequency |
1626.5 - 1646.5 MHz |
| Receiving Frequency |
1537.0 - 1544.2 MHz |
| Channel Interval |
5 kHz |
| Transmit Modulation Rate and Method |
600, 1200 sps Unfiltered BPSK |
| Receive Modulation Rate and Method |
1200 sps Unfiltered BPSK |
| Receiving Performance Index (G/T) |
-23 dB/K or higher (at elv. 5°) |
| Transmit EIRP |
12 - 16 dBW (at elv. 5°) |
| Power Supply |
12-24 VDC |
| Environment |
|
| Temperature |
Antenna Unit : -35 °C to + 55 °C, Shipboard Equipment : -15 °C to + 55 °C |
| Relative Humidity |
95% at 40°C |
| Equipment List |
|
| Standard |
|
| Antenna Unit |
IC-120 |
| Terminal Unit |
IC-220 |
| Junction Box |
IC-318 |
| SSAS Alert Unit |
IC-307* |
| SSAS Alert Unit Note |
Included in standard configuration only for SSAS specification. |
| Keyboard |
Installation Materials |
