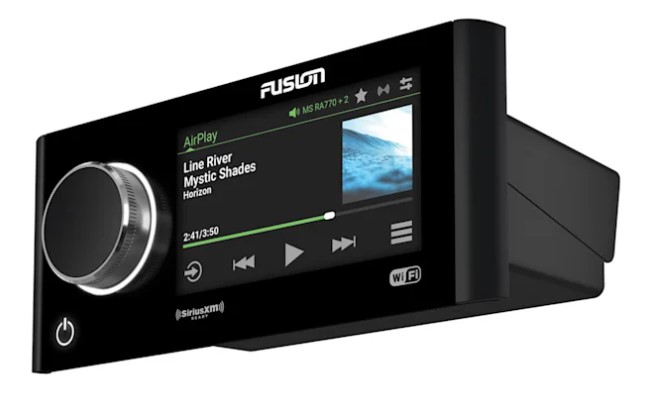

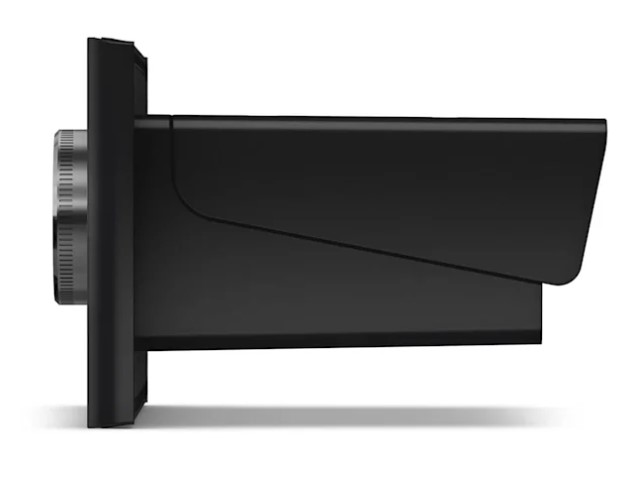

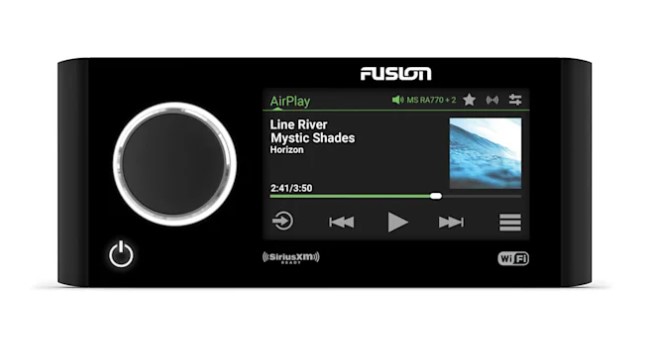

Garmin Fusion Apollo MS-RA770, Touchscreen Marine Head Unit
The Garmin Fusion Apollo MS-RA770 is a premium touchscreen marine head unit designed to deliver high-quality audio entertainment on boats and yachts. With its modern interface and advanced audio features, it provides convenient control over onboard music and entertainment systems, making it suitable for recreational boating, cruising, and marine leisure applications.
Designed for marine environments, this head unit features an IPX6 and IPX7 water rating for the front panel when properly installed. Its touchscreen interface provides easy access to music sources, audio settings, and connected devices, helping users manage their onboard entertainment with greater convenience while spending time on the water.
The Apollo MS-RA770 supports multiple audio sources, including Bluetooth, Apple AirPlay 2, USB audio, AUX inputs, AM/FM radio, and digital optical input. This range of connectivity options allows boat owners and passengers to enjoy music from compatible smartphones, media devices, and other audio equipment according to their preferences.
With built-in digital signal processing (DSP) and four-zone audio technology, the marine stereo allows users to customise sound settings and manage entertainment across different areas of their vessel. Stereo networking supports wired or wireless connections, while compatibility with Garmin multifunction displays, smart devices, and Garmin watches provides additional control options for supported onboard systems.
The Garmin Fusion Apollo MS-RA770 is suitable for marine audio installations where flexible connectivity, multi-zone sound control, and convenient operation are important. Its Ethernet and NMEA 2000 connectivity, wireless networking, and support for wired remote controls make it a versatile choice for integrating entertainment into compatible marine electronics systems.
Key features
• Touchscreen marine head unit for onboard audio entertainment
• IPX6 and IPX7 water rating for the front panel when properly installed
• Built-in Wi-Fi, Bluetooth, and ANT wireless technology

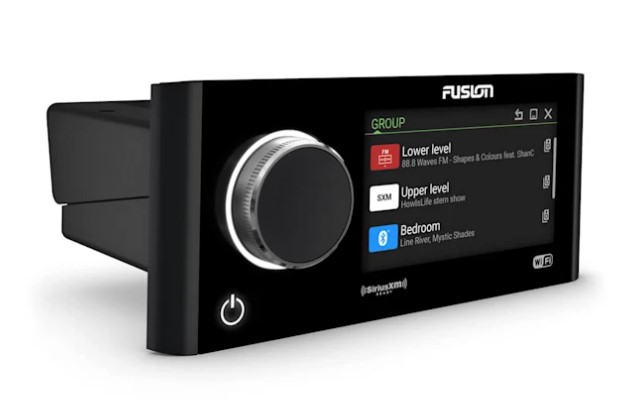

• Four-zone audio control with Multi-Zone technology
• Built-in DSP with custom profiles using the Garmin Audio app
• Supports Bluetooth, Apple AirPlay 2, USB audio, AM/FM, and AUX sources
• Stereo networking with wired and wireless connectivity
• Ethernet and NMEA 2000 connectivity for compatible marine systems
SPECIFICATION
| General |
|
| Current (max) |
15 A |
| Multi-language interface |
Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish |
| Electrical Features |
|
| Power Input |
10.8 - 16 VDC |
| Compass-safe distance |
5.9" (150 mm) |
| Stereo Features |
|
| Peak power |
280 W |
| Rated power output (2 ohm) |
43 watts RMS x 4 @ 14.4 V input < 10% THD |
| Rated power output (4 ohm) |
26 watts RMS x 4 @ 14.4 V input < 10% THD |
| Built-in Wi-Fi® |
|
| Built-in Digital Signal Processing (DSP) |
yes (with custom DSP profile setup using Garmin Audio app) |
| Stereo networking |
yes (wired or wireless) |
| Garmin audio control |
yes (MFD, smart device and Garmin watch) |
| Multi-Zone™ technology |
4 zones |
| Bluetooth® wireless technology |
Supported |
| ANT® wireless technology |
Supported |
| SiriusXM-ready |
Supported |
| DAB+ ready |
Supported |
| Optical audio input |
Supported |
| Supports ERX wired remote |
Supported |
| Supports NRX wired remote |
Supported |
| Software updates |
Over-the-air updates via Garmin Audio app/USB |
| Sources |
|
| Supported sources |
AM, FM, BLUETOOTH®, Apple® AirPlay® 2, digital optical input, USB audio,
iPhone®, iPod®, AUX x2, UPnP, MTP
|
| SiriusXM-Ready |
(U.S. only, requires optional SiriusXM Connect vehicle tuner) |
| DAB+ ready |
(available in Europe and Australia only) |

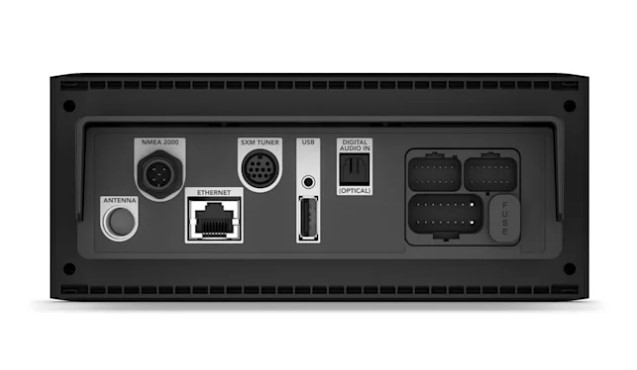

| Networking & Connections |
|
| Auxiliary inputs (RCA) |
2 |
| Optical audio inputs (Digital Optical Input SPDIF) |
1 |
| Ethernet ports |
1 |
| NMEA 2000® ports |
1 |
| NMEA 2000® LEN |
1 (50 mA) |
| USB 2.0 ports |
1 |
| SiriusXM ports |
1 |
| AM/FM ports (Motorola antenna connector) |
1 |
| Speaker connections |
4 (2 zone amplified) |
| RCA pre-out (left, right and subwoofer) |
4 zones (requires external amplification) |
| Line out |
4 (L + R per zone, requires external amplification) |
| Subwoofer out |
4 (1 mono output per zone, requires external amplification) |
| Wireless frequencies/protocols |
Wi-Fi®: 2.4 GHz @ +15 dBm nominal; BLUETOOTH®: 2.4 GHz @ +10 dBm nominal;
ANT®: 2.4 GHz @ +4 dBm nominal
|
| ANT® wireless range |
Up to 10 ft |
| Bluetooth® wireless range |
up to 30 ft |
