When a boat has multiple audio sources and speaker zones, managing music across the vessel can become difficult without a dedicated marine audio system. The Garmin Fusion Apollo MS-RA800 brings audio control, wireless connectivity, and multi-zone sound management together in a single marine head unit.

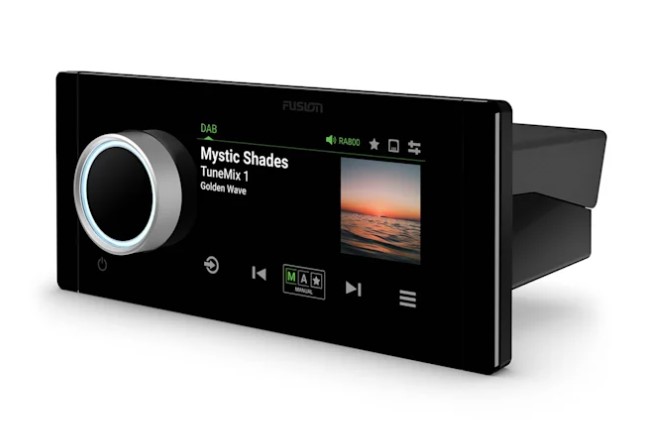

Garmin Fusion Apollo MS-RA800, 800 x 480 Pixels, 4.3" Marine Head Unit

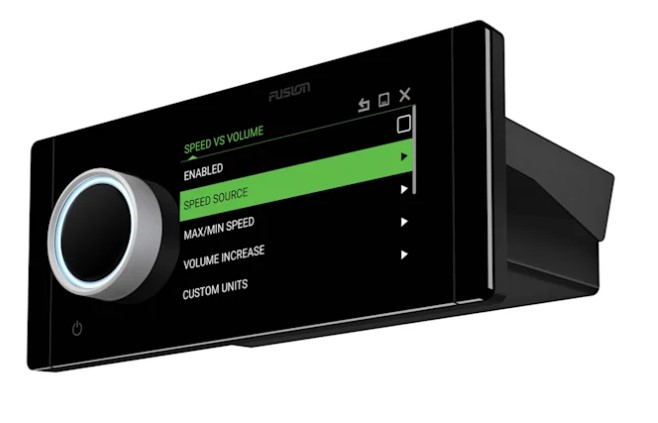

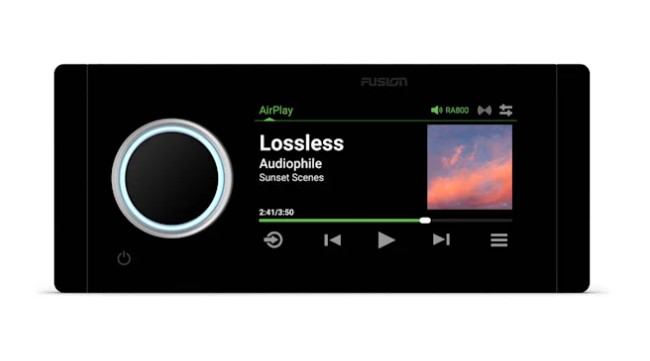

The Garmin Fusion Apollo MS-RA800 is a marine head unit designed to manage onboard entertainment from a central control interface. Its 4.3-inch capacitive touchscreen color LCD provides access to audio sources, sound settings, and connected devices. The 800 x 480 resolution supports a clear display for selecting music and adjusting the system while aboard.
The built-in Class D amplifier delivers rated continuous power of 40 W x 4 at a 14.4 V input with 4-ohm speakers and less than 1% THD. Its Multi-Zone technology supports four audio zones, allowing sound to be managed across different areas of the vessel. Speaker connections, RCA pre-outs, line outputs, and subwoofer outputs provide options for connecting speakers and external amplification.

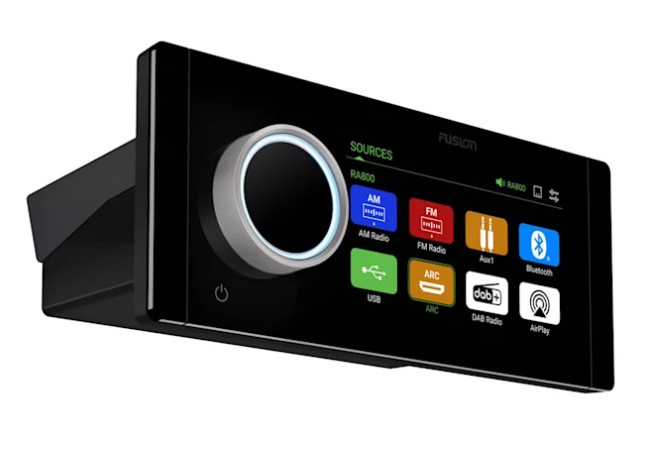

For flexible listening, the head unit supports AM, FM, Bluetooth, Apple AirPlay 2, HDMI ARC, USB audio, iPhone, iPod, and two auxiliary inputs. USB playback supports MP3, M4A (AAC/ALAC), FLAC, and WAV formats. Bluetooth 5.3 provides wireless audio connectivity, while built-in Wi-Fi supports networked functions and compatible wireless connections.
The MS-RA800 includes built-in digital signal processing (DSP), with custom DSP profile setup using the Garmin Audio app. Stereo networking works through wired or wireless connections, and audio can be controlled through compatible multifunction displays, smart devices, and Garmin watches. Software updates are available over the air through the Garmin Audio app or by USB, helping keep the system updated.

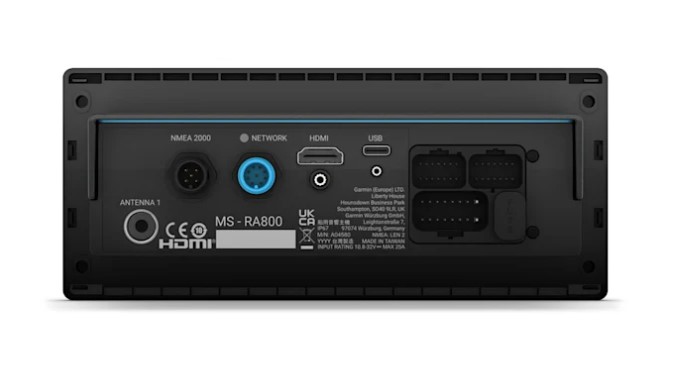

Designed for marine installation, the head unit supports a 10.8 to 32 VDC power input and operates between 0° C and 50° C. The control surface has IPX6 and IPX7 ratings when properly installed, while the rear has an IPX3 rating. With NMEA 2000 connectivity, Ethernet, USB-C, HDMI ARC, and dedicated audio connections, it can serve as a central entertainment component for compatible onboard systems.
Key features
-
4.3-inch capacitive touchscreen color LCD
-
800 x 480 display resolution
-
Built-in Class D amplifier rated at 40 W x 4
-
Four-zone Multi-Zone audio technology
-
Bluetooth 5.3 and built-in Wi-Fi
-
Supports Apple AirPlay 2, HDMI ARC, USB audio, AM, and FM
-
Built-in DSP with custom DSP profile setup using Garmin Audio app
-
NMEA 2000, Ethernet, USB-C, and external audio connections
Specifications
|
General
|
|
|
Warranty
|
3 years
|
|
Physical dimensions (Height)
|
3.23" (82 mm)
|
|
Physical dimensions (Width)
|
7.56" (192 mm)
|
|

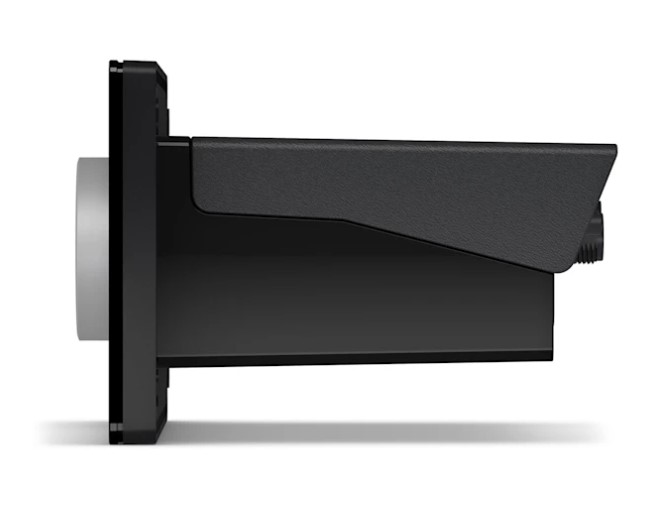

Physical dimensions (Depth)
|
4.7" (119.4 mm)
|
|
Weight
|
1.37 lbs (620 g)
|
|
Control surface dust/water rating (when properly installed)
|
IPX6 and IPX7
|
|
Rear dust/water rating (when properly installed)
|
IPX3
|
|
Operating temperature range
|
32° F to 122° F (0° C to 50° C)
|
|
Current draw (max)
|
25 A at 14.4 V; 15 A at 28.8 V
|
|
Multi-language interface
|
Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch,
English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish,
Portuguese (BR), Portuguese (PT), Slovenian, Spanish, Swedish, Thai, Turkish
|
|
Audio
|
|
|
Rated continuous (RMS) power (14.4 V input @ 4 Ohm <1% THD)
|
40 W x 4
|
|
Electrical Features
|
|
|
Power Input
|
10.8 to 32 VDC
|
|
Compass-safe distance
|
5.9" (150 mm)
|
|
Stereo Features
|
|
|
Display size
|
4.3" (109 mm)
|
|
Display type
|
capacitive touchscreen LCD
|
|
Display resolution
|
800 x 480
|
|
Optically bonded display
|
|
|
Built-in amplifier
|
Class D (4 Ω)
|
|
Built-in Wi-Fi®
|
|
|
Built-in Digital Signal Processing (DSP)
|
yes (with custom DSP profile setup using Garmin Audio app)
|
|
Stereo networking
|
yes (wired or wireless)
|
|
Garmin audio control
|
yes (MFD, smart device and Garmin watch)
|
|
Multi-Zone™ technology
|
4 zones
|
|
Bluetooth® wireless technology
|
yes (Bluetooth® 5.3)
|
|
ANT® wireless technology
|
|
|
Software updates
|
Over-the-air updates via Garmin Audio app/USB
|
|
Sources
|
|
|
Supported sources
|
AM, FM, BLUETOOTH®, Apple AirPlay® 2, HDMI ARC, USB audio, iPhone, iPod, AUX x2
|
|
Supported audio formats (USB)
|
MP3, M4A (AAC/ALAC), FLAC, WAV
|
|
Networking & Connections
|
|
|
Auxiliary inputs (RCA)
|
2
|
|
HDMI ARC Ports
|
1
|
|
Ethernet ports
|
1
|
|
NMEA 2000® ports
|
1
|
|
NMEA 2000® LEN
|
2 (65 mA)
|
|
USB 2.0 ports
|
1 (USB-C)
|
|
AM/FM ports (Motorola antenna connector)
|
1 (shared with DAB+)
|
|
DAB+ ports (FAKRA connector)
|
1
|
|
DAB+ ports (Motorola antenna connector)
|
1 (shared with AM/FM)
|
|
Speaker connections
|
4 (2 zone amplified)
|
|
RCA pre-out (left, right and subwoofer - requires external amplification)
|
4 zones
|
|
Line out (requires external amplification)
|
4 (L + R per zone)
|
|
Subwoofer out (requires external amplification)
|
4 (1 mono output per zone)
|
|
Wireless frequencies/protocols
|
WiFi 2.4Ghz : +12dBm nominal MIMO 2 x 2; BLUETOOTH®: 2.4 GHz @ +10 dBm nominal; ANT®: 2.4GHz 0dBm nominal
|
|
ANT® wireless range
|
Up to 10 ft
|
|
Bluetooth® wireless range
|
up to 30 ft
|
