Garmin GPSMAP 9217xsv, 17" Premium Chartplotter with Garmin Navionics+ and Sonar

Garmin GPSMAP 9217xsv, 17" Premium Chartplotter with Garmin Navionics+ and Sonar

When navigating unfamiliar coastal waters, fishing offshore, or planning a long boating trip, having reliable charts and clear sonar information at the helm can make a real difference. The Garmin GPSMAP 9217xsv is a premium marine chartplotter designed for boat owners, yacht operators, and serious anglers who need detailed navigation, fish-finding capabilities, and convenient control of compatible onboard electronics.

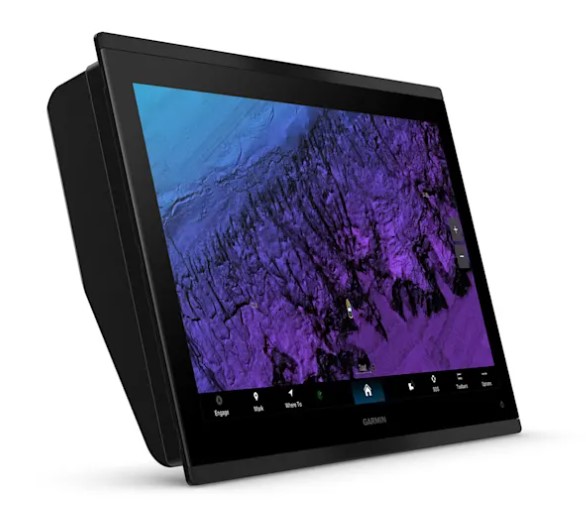

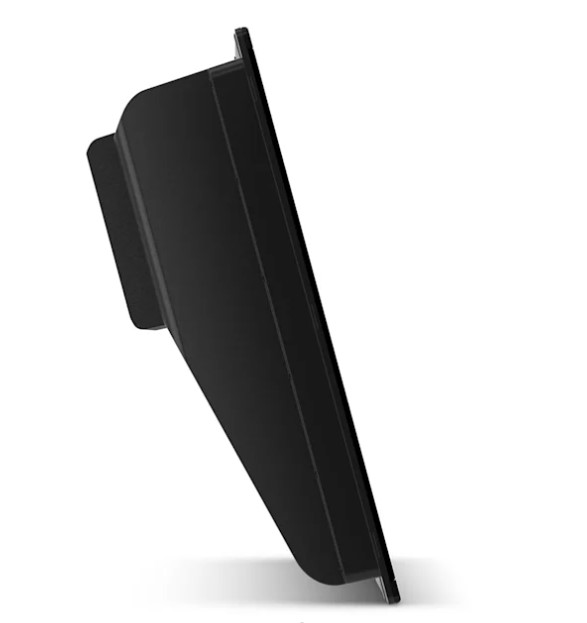

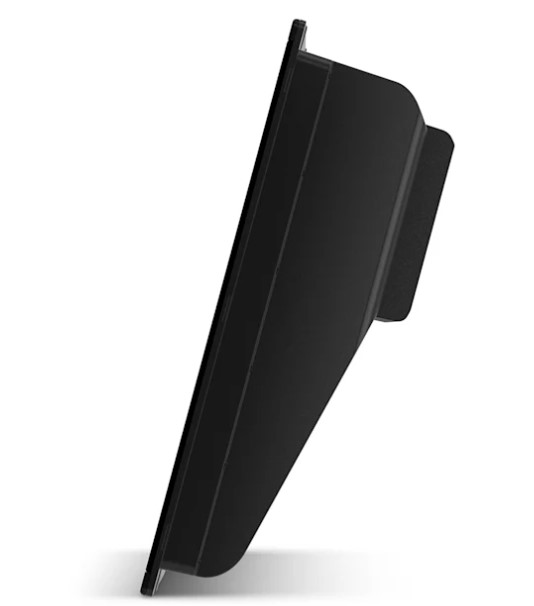

Its 17-inch diagonal 4K IPS touchscreen features a Mini LED backlight with local dimming, delivering a high-resolution display for viewing charts and navigation information. The flat or flush mounting options make it suitable for integration into compatible helm consoles, helping create a modern and organised navigation station on recreational boats and larger vessels.

With Garmin Navionics+ inland and coastal mapping, the GPSMAP 9217xsv helps boaters plan routes, explore waterways, and identify important navigation details. It supports up to 5,000 waypoints, 50,000 track points, 50 saved tracks, and 100 navigation routes, providing useful storage for frequently visited locations and planned journeys.

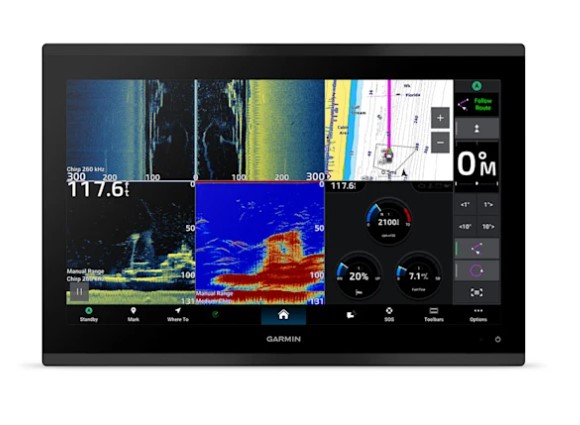

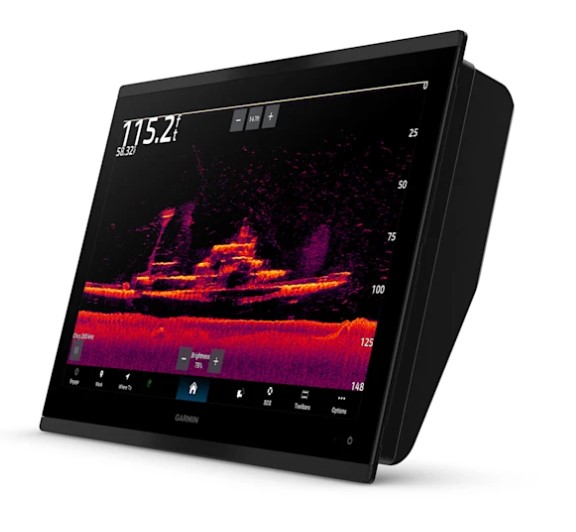

For fishing and underwater exploration, this chartplotter includes sonar capabilities with 1 kW power output, dual 1 kW traditional sonar support, and built-in RapidReturn support for up to two times the return rate. Compatibility with supported ClearVü, SideVü, Panoptix, and LiveScope sonar technologies offers additional options for building a suitable marine sonar system.

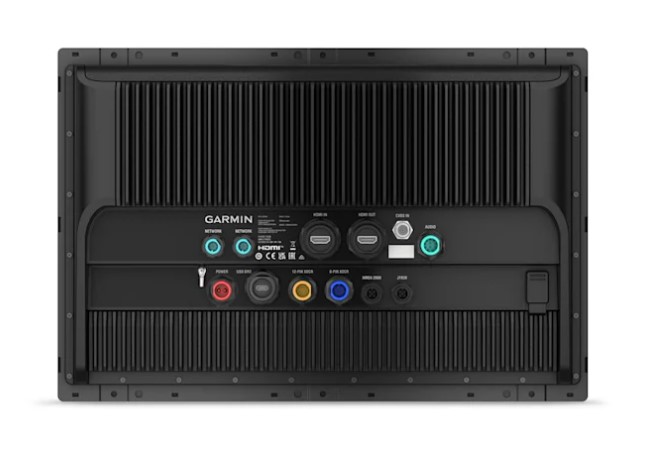

Designed for connected marine installations, the GPSMAP 9217xsv supports NMEA 2000, NMEA 0183, Garmin BlueNet networking, and compatible marine equipment. Additional features include Wi-Fi connectivity across 2.4 GHz and 5 GHz bands, USB-C connectivity, HDMI video connections, ActiveCaptain compatibility, and voice command support, making it a versatile choice for advanced navigation and fishing setups.

Key features

• 17-inch diagonal 4K IPS touchscreen with Mini LED local dimming backlight
• Garmin Navionics+ inland and coastal mapping
• IPX7 water rating for marine use
• Supports GPS, GLONASS, Galileo, and BeiDou satellite systems
• Built-in 10 Hz receiver for positioning updates
• 1 kW sonar output with dual 1 kW traditional sonar support
• Built-in RapidReturn support with up to 2x return rate
• Garmin BlueNet, NMEA 2000, Wi-Fi, USB-C, and HDMI connectivity
