Looking for a tiny computer that can run ads, control machines and think on its own? The Geniatech APC680 gives you that power in a box the size of a paperback. It connects to 4G LTE, runs AI models, and shows high-definition video. If you struggle with slow, bulky media players that cannot handle real-time data, this box solves the issue and keeps your business running smoothly.

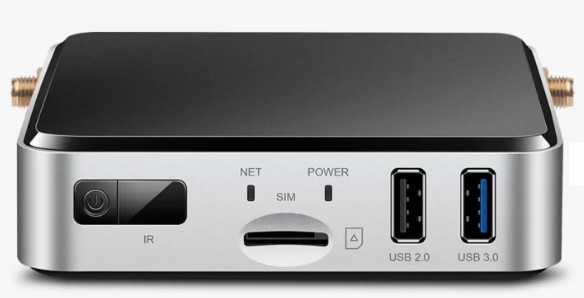

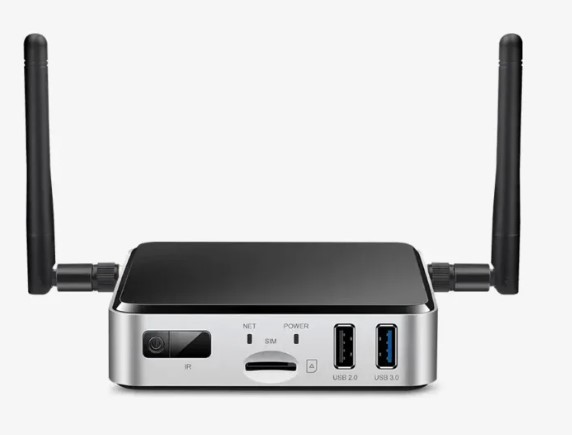

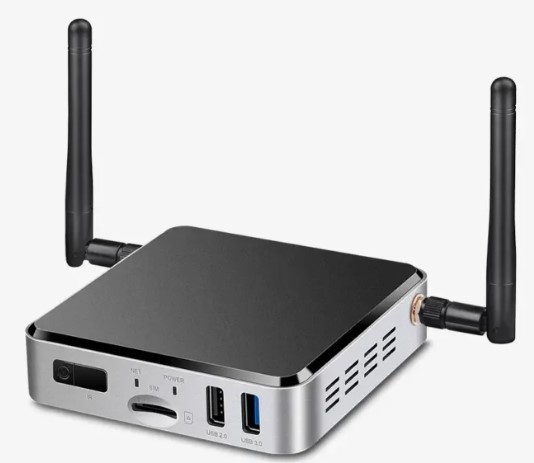

Geniatech APC680, 4GB/16GB 4G LTE Edge AI Box for Media, Signage & Automation
Many owners of digital signs and smart factories face two problems: unreliable network connections and limited processing power for AI tasks. When the screen freezes or the sensor data lags, customers leave and production slows. This box fixes both issues. It brings a fast 4G LTE link and a built-in 7.9 TOPS NPU, so you get steady video streams and instant AI decisions without extra hardware.
Key Features
- Synaptics VS680 SoC with quad-core Arm Cortex-A73.
- 7.9 TOPS NPU for neural network inference.
- Imagination GE9920 GPU with OpenGL ES, OpenCL, Vulkan support.
- 4 GB LPDDR4 RAM and 16 GB eMMC storage, expandable to 512 GB via TF card.
- Android 12.0 or Embedded Linux operating system.
- Gigabit Ethernet, dual-band Wi-Fi (2.4 GHz/5.8 GHz) and Bluetooth 5.0.
- 4G LTE modem for reliable mobile broadband.
- HDMI In and HDMI Out (4K), USB 3.0, USB 2.0 OTG, RTC and WatchDog.
- Optional IoT modules: Z-Wave, Zigbee, LoRa, LTE, GPS.
- 4K decode/encode, ISP and AI-based image enhancement.
- Power input 12 V DC at 1.5 A, compact 106 100 25 mm chassis.
Specifications
| Processor |
|
| Processor |
Synaptics VS680 SoC with Quad-core Arm® Cortex®-A73 |
| AI Engine |
7.9 TOPS NPU for neural network and ML inferencing |
| Graphics |
Imagination GE9920 |
| Graphics Features |
OpenGL® ES, OpenCL™, Vulkan®, and DirectFB; multimedia accelerators |
| Memory & Storage |
|
| RAM |
4GB LPDDR4 |
| Storage |
16GB eMMC; TF card up to 512GB |
| Operating System |
|
| Operating System |
Android 12.0 / Embedded Linux |
| Connectivity |
|
| LAN |
10/100/1000M |
| WiFi |
2.4G/5.8G |
| Bluetooth |
5.0 |
| 4G |
4G |
| Expansion I/O |
|
| Expansion I/O |
HDMI In ×1, HDMI Out ×1 (4K), USB 3.0 ×1, USB2.0 (OTG) ×1, RTC, WatchDog |
| IoT Interfaces |
|
| IoT Interfaces |
optional GTIoT support: Z-WAVE, Zigbee, LoRa, LTE, GPS |
| Video Capabilities |
|
| Video Capabilities |
4K decode/encode, ISP, AI-based image enhancements |
| Power |
|
| POWER |
DC12V / 1.5A (Φ5.5mm / φ2.1mm) |
| Physical Specifications |
|
| Size(mm) |
106 × 100 × 25 |
| Package Contents |
|
| Package Contents |
APC680 AI Box unit, power adapter, KR20 Remote, HDMI cable. |
