If you are a business owner with a fleet of vehicles, you know how hard it can be to keep track of where they are and what they are doing. This can lead to wasted time and money, as well as safety concerns for your drivers. The Geotab GO9 32-bit processor Vehicle Tracking Device is here to solve this problem. It gives you a clear picture of where your vehicles are and what they are doing, so you can make informed decisions about your business. With this device, you can track your vehicles in real-time, get detailed reports on their activity, and even set up alerts for things like speeding or idling. This can help you save money on fuel, reduce wear and tear on your vehicles, and improve the safety of your drivers.

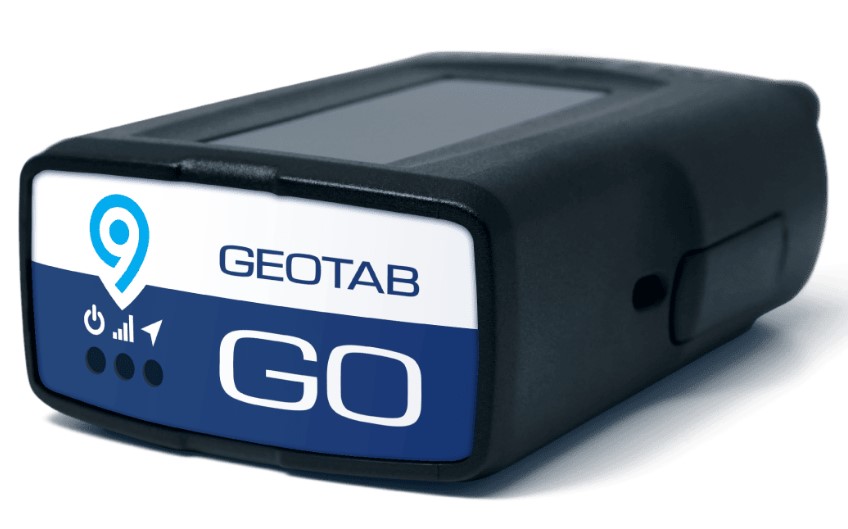

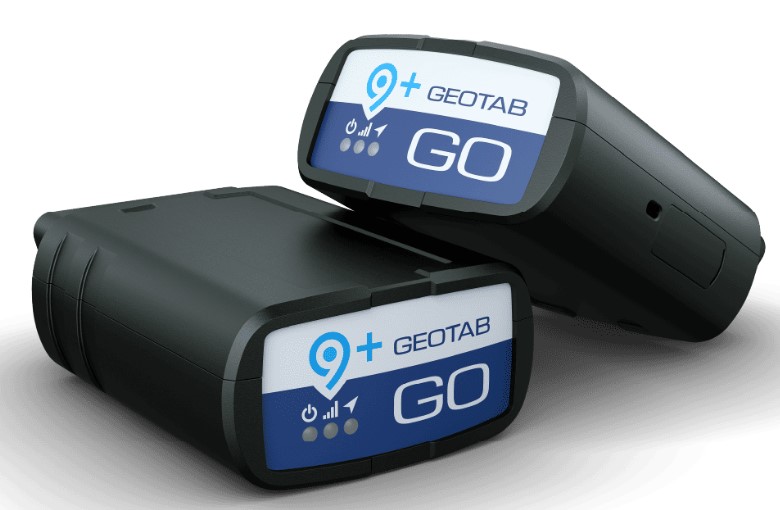

Geotab GO9 32-bit processor Vehicle Tracking Device with Geotab
Imagine being able to see exactly where all of your vehicles are, right now. Imagine being able to get detailed reports on their activity, including things like speed, location, and fuel usage. The Geotab GO9 32-bit processor Vehicle Tracking Device makes this possible. It is a powerful tool that uses GPS and cellular technology to track your vehicles and give you the information you need to run your business more efficiently. With Geotab, you can set up a system that works for you, whether you have one vehicle or a whole fleet. You can track your vehicles in real-time, get alerts for things like speeding or idling, and even set up reports to help you make informed decisions about your business.
Key Features
- 32-bit processor for fast and efficient processing
- GPS and cellular technology for accurate and reliable tracking
- Real-time tracking and reporting
- Alerts for things like speeding, idling, and reckless driving
- Detailed reports on vehicle activity, including speed, location, and fuel usage
- Easy to use and set up, with a user-friendly interface
- Compatible with a variety of vehicles, including cars, trucks, and construction equipment
- Support for multiple languages and currencies
- Secure and reliable, with advanced security features to protect your data
- Regular software updates to ensure you have the latest features and security patches
Specifications:
| Interfaces – Engine Management |
|
| Legacy OBD |
SAE J1850 PWM/VPW, ISO 9141-2, and ISO 14230 (KWP2000) |
| Single Wire CAN |
GM 33.3 kbps, Fiat/Dodge 50 kbps |
| ISO 15765 CAN |
Including WWH-OBD, GMLAN, VW TP2.0 @ 125/250/500 kbps |
| Medium Speed CAN |
125/250/500 kbps |
| J1939 |
J1939-13 Type 2 |
| TTL CAN |
Supported |
| 2- or 3-wire Install |
Support for older vehicles/asset tracking |
| Input / Output |
|
| Buzzer |
Yes |
| LEDs |
Ignition, GPS, Cellular |
| IOX |
Supported |
| Internal Antennas |
GPS/Cellular antennas |
| Cellular |
|
| GO9 LTE ATT/Telus/Rogers/Bell/Mexico |
LTE (CAT-1): Bands 2/4/5/12, 3G: Bands 2/5 |
| GO9 LTE TMO |
Single Mode LTE (CAT-1): Bands 2/4/12 |
| GO9 LTE VZW |
Single Mode LTE (CAT-1): Bands 4/13 |
| GO9 3G/2G Global |
3G: 800/850/900/1900/2100 MHz; 2G: 850/900/1800/1900 MHz |
| 3GPP Compliance |
3GPP Compliant |
| GPS |
|
| GPS Receiver |
72-channel engine (GPS/GLONASS) |
| Time-To-First Fix |
Under 1 second for hot and aided starts |
| GNSS Support |
Concurrent GPS & GLONASS |
| A-GNSS |
Supported |
| GPS Accuracy |
~2.5 m |
| OTA FW Updates |
Supported |
| I/O Expandability |
|
| IOX Support |
Supported |
| Maximum IOX Devices |
Combination of up to 5 |
| Driver ID |
Supported |
| Hours of Service (HOS) |
Supported |
| Garmin |
Supported |
| Iridium Satellite |
Supported |
| AUX |
4 per IOX (Digital or Analog) |
| Serial Port / Additional CAN |
Supported for third-party device integration |
| Driver Feedback |
Via external Buzzer and GOTALK |
| Substance Spreader |
Supported |
| Relay Control |
Supported |
| Alert |
Supported |
| Environmental & EMC |
|
| Operating Temperature |
−40 to +85 °C |
| SAE Standard |
SAE J1455 |
| Thermal Shock |
Section 4.1.3.2 |
| Humidity Cycle |
Section 4.1 |
| Temperature Cycle |
Section 4.2 |
| Mechanical Vibration |
Section 4.10 |
| Operational Shock / Transit Drop / Handling Drop |
Section 4.11.x.x |
| Inductive Switching / Burst Transients / Starter Motor Engagement |
Section 4.13.2.2.1 |
| Coupled Transients |
Section 4.13.2.2.2 |
| Electrostatic Discharge |
Handling, operational and non-operational (Section 4.13.2.2.3) |
| Radiated Immunity |
Supported |
| Radiated and Conducted Emissions |
Supported |
| Accelerometer & Gyroscope |
|
| Accelerometer |
3D accelerometer |
| Gyroscope |
3D gyroscope |
| Acceleration Range |
±8g |
| Angular Rate Range |
±250 dps |
| Output Data Rate |
1.66 kHz |
| Mechanical |
|
| Weight |
70 g (0.15 lb) |
| Dimensions |
75 mm (L) × 50 mm (W) × 23 mm (H) |
| Housing |
Flame retardant black ABS |
| Electrical |
|
| Supported Vehicle Voltage |
12 V and 24 V systems |
| Operating Current |
60–300 mA @ 12 V |
| Operating Current with IOX |
Up to 2 A |
| Sleep Mode Current |
1.5 mA |
| Overcurrent Protection |
Resettable overcurrent protection to IOX |
| Compliance |
|
| Standards |
FCC, IC, PTCRB, NOM, HERO, HERF, HERP, CE, Emark, RED, REACH, RoHS, WEEE, RCM |
| Supported Carriers |
T-Mobile, AT&T, Verizon, Telefónica, Rogers, Bell, Telus, Telenor |
| Over-the-Air (OTA) Support |
|
| Firmware Updates |
For maintenance, new features, and custom applications |
| Parameters |
For turning additional features on/off |
| Almanac / Ephemeris Data |
For quicker GPS latch |
| Driver Feedback |
|
| In-cab Buzzer Output |
>85 dBA at 10 cm |
| Test Mode |
Diagnostic beeps for validating GPS and wireless connection |
| Memory |
|
| Non-volatile Flash Memory |
64-Mb |
| Main Data Memory |
Up to 80,000 logs in offline mode (out of coverage) |
