| Processor |
|
| Supported processor sockets |
LGA 1700 |
| Compatible processor series |
Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
|
| Maximum internal memory per slot |
64 GB |
| Unbuffered memory |
Yes |
| Maximum internal memory |
256 GB |
| Supported memory clock speed (max) |
5600 MHz |
| Supported memory clock speeds |
4400, 4800, 5200, 5600 MHz |
| ECC compatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
|
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
7 |
| Supported storage drive interfaces |
M.2, PCI Express 4.0, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
|
| DirectX version |
12.0 |
| HDCP |
Yes |
| Maximum resolution |
4096 x 2304 pixels |
| Parallel processing technology support |
Not supported |
| Internal I/O |
|
| Number of RGB LED pin headers |
4 |
| RGB LED pin header |
Yes |
| 12V power connector |
Yes |
| Number of water pump connectors |
2 |
| Serial port headers |
1 |
| TPM connector |
Yes |
| Number of EPS power connectors (8-pin) |
1 |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
4 |
| Number of CPU fan connectors |
2 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| S/PDIF out connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |

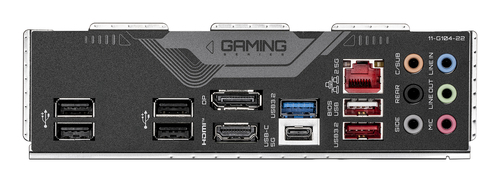

| Rear panel I/O ports |
|
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Line-in |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
0 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
5 |
| Network |
|
| Wi-Fi |
No |
| LAN controller |
Realtek RTL8125 |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Cooling type |
Passive |
| Power source type |
ATX |
| PC health monitoring |
Fan, Temperature, Voltage, Water cooling |
| Product colour |
Dark brown |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC897 |
| Motherboard chipset |
Intel B760 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
|
| 3rd M.2 highest PCI Express generation |
4.0 |
| 3rd M.2 largest key size |
22110 |
| 2nd M.2 highest PCI Express generation |
4.0 |
| 2nd M.2 largest key size |
22110 |
| 1st M.2 highest PCI Express generation |
4.0 |
| 1st M.2 largest key size |
22110 |
| Number of M.2 (M) slots |
3 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
2 |
| BIOS |
|
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
| Clear CMOS jumper |
Yes |
| ACPI version |
5.0 |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Battery |
|
| Battery type |
CR2032 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells |
1 |
| Battery weight |
3 g |
| Lithium weight per battery |
0.07 g |
| Logistics data |
|
| Country of origin |
China |
| Products per shipping (inner) case |
1 pc(s) |
| Packaging data |
|
| Package weight |
1.8 kg |
| Package height |
80 mm |
| Package depth |
270 mm |
| Package width |
335 mm |
| Weight & dimensions |
|
| Height |
35 mm |
| Depth |
244 mm |
| Width |
305 mm |
| Packaging content |
|
| Bundled software |
Norton® Internet Security (OEM version) |
| Batteries included |
Yes |
| Screws included |
Yes |
| Other features |
|
| Maximum internal memory |
256 GB |
| Weight |
1.56 kg |
| Technical details |
|
| Warranty period |
3 year(s) |
