If you are looking for a powerful server to manage your business operations, you might be facing a big problem. Your current server might be slow, or it might not have enough storage space. This can cause a lot of trouble for your business, as it can slow down your operations and make it hard to store important data. The Gigabyte G493-SB0-AAP1, Intel Xeon Scalable Processor, 4U Rackmount Server is here to solve this problem. It is a powerful server that can handle all your business operations with ease, and it has a lot of storage space to store all your important data. With this server, you can say goodbye to slow operations and hello to fast and efficient business management.

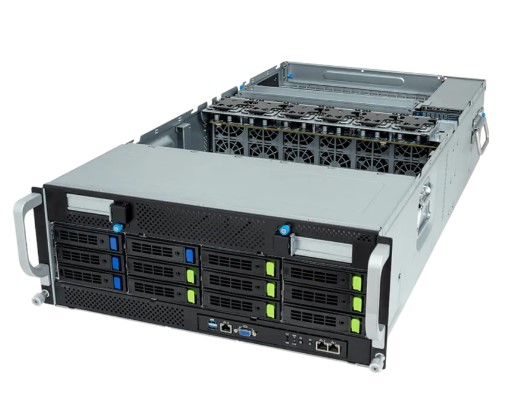

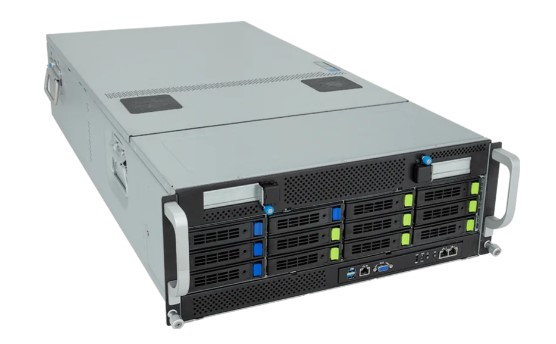

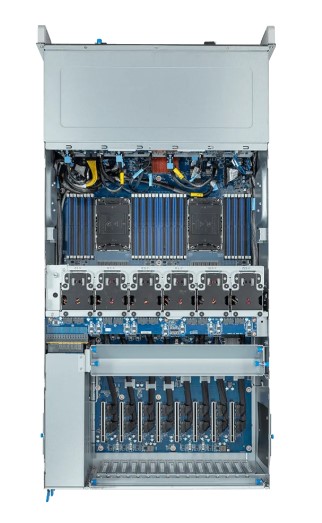

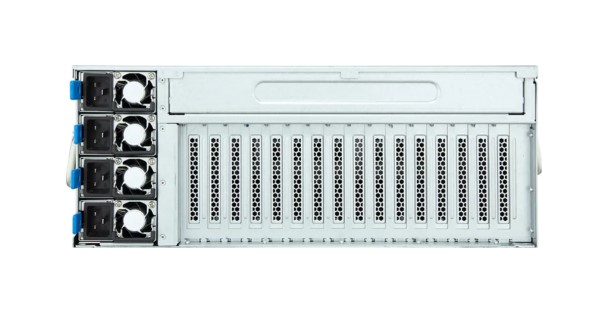

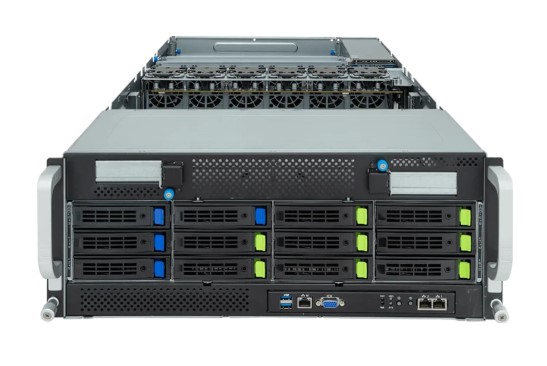

Gigabyte G493-SB0-AAP1, Intel Xeon Scalable Processor, 4U Rackmount Server with Gigabyte
Imagine having a server that can handle all your business operations with ease. The Gigabyte G493-SB0-AAP1, Intel Xeon Scalable Processor, 4U Rackmount Server is a powerful server that can do just that. It is designed to provide fast and efficient performance, and it has a lot of storage space to store all your important data. With this server, you can manage your business operations with ease, and you can say goodbye to slow and inefficient performance. Many businesses face the problem of slow servers, but with the Gigabyte G493-SB0-AAP1, you can say goodbye to this problem and hello to fast and efficient business management.
Key Features
- 5th Generation Intel Xeon Scalable Processors, 4th Generation Intel Xeon Scalable Processors, and Intel Xeon CPU Max Series
- 8-Channel DDR5 RDIMM, 32 x DIMMs, with speeds of up to 5600 MT/s
- 8 x FHFL PCIe Gen5 x16 expansion slots for GPUs
- 2 x 10Gb/s LAN ports and 1 x 10/100/1000 Mbps management LAN port
- Integrated ASPEED AST2600 video controller and 1 x VGA port
- 8 x 3.5"/2.5" Gen5 NVMe/SATA front hot-swap bays and 1 x M.2 (2280/22110) internal bay
- Intel SATA RAID 0/1/10/5 support and onboard VROC key header
- 3+1 3000W 80 PLUS Titanium redundant power supplies and 100-240V AC input
- ASPEED AST2600 Baseboard Management Controller and GIGABYTE Management Console web interface
- 12 x 60x60x38mm system fans and support for up to 8 GPUs
Specifications
| Form Factor |
|
| Dimensions |
4U (W448 x H176 x D880 mm) |
| Motherboard |
|
| Motherboard |
MSB3-G40 |
| Processor |
|
| CPU |
5th Generation Intel Xeon Scalable Processors, 4th Generation Intel Xeon Scalable Processors,
Intel Xeon CPU Max Series
|
| Processor Configuration |
Dual processor, TDP up to 350W |
| Socket |
2 x LGA 4677 (Socket E) |
| Chipset |
Intel C741 |
| OS Compatibility |
OS Support List |
| Memory |
|
| Memory |
8-Channel DDR5 RDIMM, 32 x DIMMs |
| 5th Gen Intel Xeon |
Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) |
| 4th Gen Intel Xeon |
Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) |
| Intel Xeon Max Series |
Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) |
| Memory Note |
5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. |
| Network |
|
| LAN |
2 x 10Gb/s LAN (1 x Intel X710-AT2), Support NCSI, 1 x 10/100/1000 Mbps Management LAN |
| Video |
|
| Video |
Integrated in ASPEED AST2600 |
| VGA |
1 x VGA port |
| Storage |
|
| Front hot-swap |
8 x 3.5"/2.5" Gen5 NVMe/SATA, 4 x 3.5"/2.5" SATA |
| Internal M.2 |
1 x M.2 (2280/22110), PCIe Gen3 x1 |
| RAID |
Intel SATA RAID 0/1/10/5 |
| Onboard VROC |
Onboard VROC key header |
| Expansion |
|
| PCIe Expansion Slots |
8 x FHFL PCIe Gen5 x16, for GPUs |
| I/O Ports |
|
| Front I/O |
2 x USB 3.2 Gen1, 1 x VGA, 2 x RJ45, 1 x MLAN |
| Backplane Board |
PCIe Gen5 x4 or SATA 6Gb/s |
| TPM |
1 x TPM header (SPI), Optional TPM2.0 kit: CTM010 |
| Power |
|
| Power Supply |
3+1 3000W 80 PLUS Titanium redundant power supplies |
| AC Input |
100-240V |
| Power Note |
The system power supply requires C19 power cord. |
| System Management |
|
| System Management |
ASPEED AST2600 Baseboard Management Controller, GIGABYTE Management Console web interface |
| Cooling |
|
| System Fans |
12 x 60x60x38mm |
| Fan Note |
Two fans share a single power connector. |
| Operating Properties |
|
| Operating |
10°C to 35°C, 8% to 80% (non-condensing) |
| Non-operating |
-40°C to 60°C, 20% to 95% (non-condensing) |
| Packaging Content |
|
| Packaging Content |
1 x G493-SB0-AAP1, 2 x CPU fansinks, 8 x GPU power cables (16-pin, 150mm),
6 x Carriers, 1 x L-shape Rail kit
|
| Ordering Information |
|
| Ordering Part Numbers |
6NG493SB0DR000ABP1 |
